Rising Film Solvent Evaporator

• Type：Leaching Equipment
• Application：All
• Voltage：380V
• Appearance：Vertical
• Press Materials：Soybean
• Press Series：Fifth

=== Base Info ===

• Condition：New
• Customized：Customized
• Pipe Material：Stainless Steel, Aluminum Alloy
• Transport Package：Damp Proof Packing
• Specification：ISO, SGS, BV, CE
• Trademark：Huatai
• Origin：Henan, China
• HS Code：8479200000
• Production Capacity：100 Sets,Month

=== Description ===

Basic Info.

Condition New Customized Customized Pipe Material Stainless Steel, Aluminum Alloy Transport Package Damp Proof Packing Specification ISO, SGS, BV, CE Trademark Huatai Origin Henan, China HS Code 8479200000 Production Capacity 100 Sets/Month

Product Description

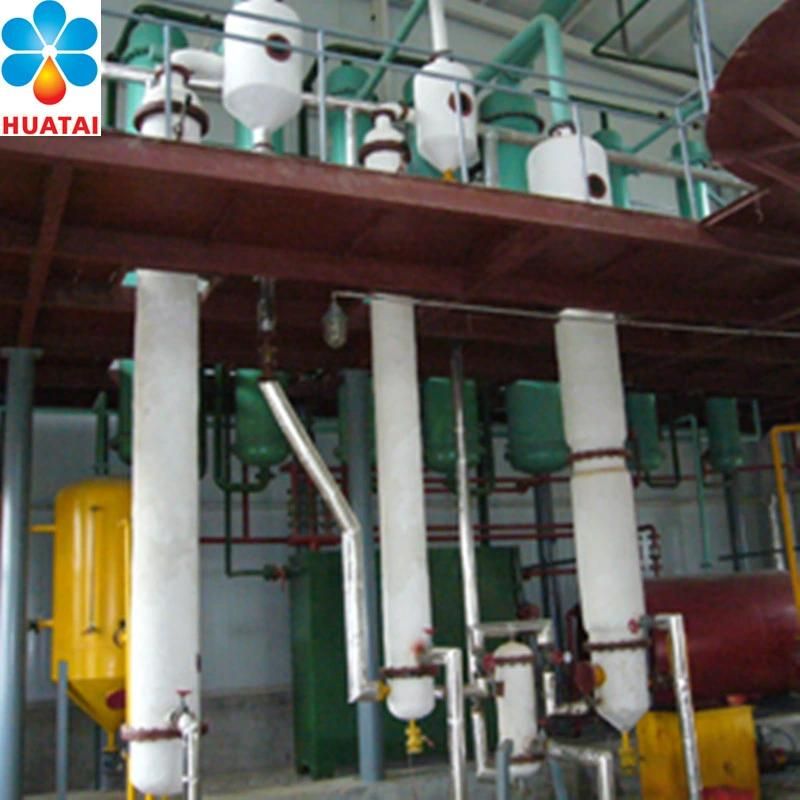

Rising film Evaporator

Material: carbon steel shell, stainless steel or aluminum alloy tube

Application:
The evaporator is usually used for separation between oil and solvent and purification of miscella concentration so as to reach technical requirements in oil,chemical and other fields.
The evaporator has features of simple operation , fluid is filminess when evaporating, small hydraulic resistance, good heat transfer effect,short retention time of miscella, quick evaporation velocity,it can heat miscella from about 400ºC to 1100-1500ºC in shorter time,so it has less impact on the quality of miscella.

Working principle
The working principle of long tube evaporator is according to big boiling point difference between oil and solvent in miscella,separate solvent from dilute miscella of 40-60ºC, 10-30% by means of indirect steam among shell pass,and concentration of oil will be higher up to meeting the technical requirements.

Evaporation Process
Miscella enters the first long tube evaporator tube pass from miscella tank, evaporated solvent enters evaporation condenser through separation chamber,outlet pipelines of separation chamber set liquid level control device to keep liquid seal. Miscella enters disc of tower from the top of steam-stripping tower,fall layer by layer,at the same time inject direct steam from the bottom,remove residual solvent.Top outlet connects evaporation condenser, use high vacuum injection pump to keep steam-stripping tower work under negative pressure, equipped with liquid level controller on the bottom of steam-stripping tower to ensure liquid level and stable flow of finished oil,
crude oil is drawn from tower bottom with steam-stripping drawn pump to cool and then enters crude oil tank.
★ Evaporation temperature is low, residual solvent in crude oil is low, color is light,no phospholipids precipitation,evaporator and steam-stripping tower scaling not easy;
★ The advantages of using long tube condenser is high solvent recovery rate,reducing condenser area and saving investment cost.
★ Using boiling tank makes solvent in drained waste water reach the minimum value.



Company Profile
Henan Huatai Cereals and Oils Machinery Co., Ltd. ,outstanding membership enterprise of CCOA,also public company in oil machine field in China.We are a large scale oil machinery manufacturer integrating research, development, design, manufacture and installation.Our oil machines sell well in more than 30 provinces, cities and districts, and exported to Estonia, Russia, Kazakhstan,Uzbekistan,Tajikistan,Malaysia, Indonesia, Egypt, Bangladesh, Myanmar, the Philippines,Nigeria, Sudan, Tanzania,Rwanda,Bolivia,Peru and other countries, and now we have developed into a major oil machinery manufacturing base in China.


Machining Work
We have 210 senior engineering technicians among 580 staff, invest USD60,000.000 to establish 8 production workshops, 2 machining workshops,with 202 sets of automatic processing equipment, such as automatic laser cutting machine, flame cutting machine, double housing planer,union melt welding machine, tube-sheet welding machine, etc, annual processing capacity is more than 3000 sets.

Packing: Our oil machines adopt wooden case or power distribution cabinet and motors, reducers, and adopt solid packing for flanges, meters, valves,etc.
For all machines, after sand blasting and rust protection, also use film to keep cleaning before delivery, also fixing treatment to prevent rolling and collision.

Delivery: We have gantry cranes in every workshop for heavy machines, and forklifts for normal machines.
Technical Support
1.Our factory is located in Huaxian County,our factory covers an area of 100000m2, with 8 standard processing workshops, 202 sets of machining equipment, 580 staff, 12 intallation teams.
2.Our trademark "Hangpeng" win TOP 10 oil machine brand, because of excellent product quality and perfect after-sale service.
3.We have successfully obtained 29 national patents (including 9 invention patents), 6 international awards, 4 national awards and 2 provincial awards.
4.We have the most complete production certificates of oil machines, such as "Design license of pressure vessel","Manufacture license of pressure vessel","Design license of pressure pipeline","Installation,reconstruction and maintenance license of pressure pipeline", "Manufacture license of organic heat carrier furnace" and installation certification of mechanical and electrical equipment".
5. We are outstanding member enterprise of CCOA (Chinese Cereals and Oils Association), so we produce machines according to standard, and refined oil reaches the best edible oil standard.
6.We have strong R & D team, production team and installation team, offer perfect after-sale service, after delivering goods, we will dispatch technicians to instruct installation, commissioning and train your workers to operate machines by  yourselves.
7.We are provincial enterprise abiding by contracts and keeping promises, we have produced oil machines for 65 years, with rich experience and own brand, so we are responsible for all of our projects, especially for oversea projects.
8.Overseas projects: we are establishing every perfect overseas sample project all over the world, such as Estonia, Russia,Ukraine Kazakhstan,Uzbekistan, Tajikistan, Indonesia, Thailand, Bangladesh, Myanmar,Cambodia,the Philippines,Egypt,Ethiopia, Kenya, Tanzania, Rwanda, Congo, Cameroon,Nigeria, Bolivia,Peru,etc.
