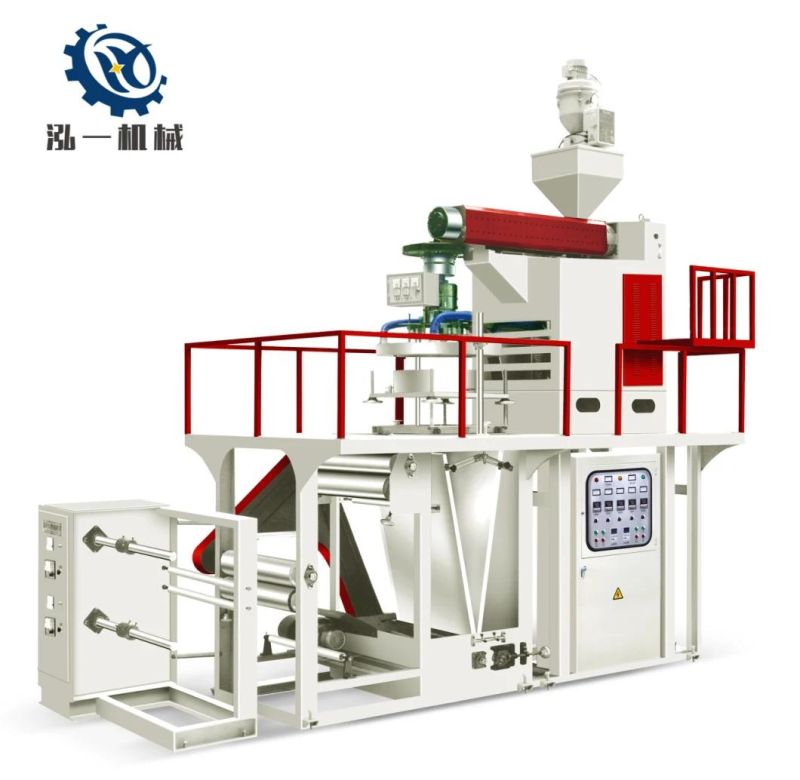

Polypropylene Extruding Film Blowing Machine

=== Base Info ===

=== Description ===

Basic Info.

Model NO. FB-G Machine Weight 4T Certification CE, ISO9001:2008 Screw Quantity 1set Die Head 360 Degree Rotary Winder Type Center Control Winder Station Double Stations Water Ring 3 Pieces Drying Method Drying Oven Corona Treater Optional Transport Package Stretch Film or Wooden Case Specification CE, ISO9001 certificate Trademark HOIN Origin Ruian, Zhejiang, China HS Code 8477309000 Production Capacity 30 Set/Month

Product Description

The cylinder and the screw stems of extruder are mode of high-quality alloy steel with optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment. The extruder can be lift up to 3meters according to the technological requirements. Mode of film blowing: Bottom blowing. The coiling unit adopts torque motor to keep proper tension and make rolling even and roll-changing easy.
Usage:
It is used for blowing polyethylene (PP) and also for blowing high and low density polyethylene (HDPE, LDPE) which are widely used for packing food, garments, textile, daily necessities and industrial products etc.

Model	FB-G-600	FB-G-800
Screw Diameter	60mm	75mm
Screw Ratio	L/D28:1	L/D28:1
Screw Speed	10-100r/min	10-100r/min
Power of Main Motor	15Kw	18.5Kw
Rotational Mode of Machine Head	Continuous Rotation	Continuous Rotation
Max. Extrusion output	38kg /h	46kg /h
Max. Folding Width of Film	600mm	800mm
Single-sided Thickness of Film	0.015 -0.08mm	0.015 -0.08mm
Total Power	28Kw	36Kw
Weight of Machine	2900kg	3500kg
Overall Dimensions(L×W×H)	4800×2000× 4000mm	5000×2200× 4200mm
