Large Capacity Heating Holding Blending Cooling Tank

NINGBO HAISHU JUDIN PACKING PRODUCTS CO., LTD. / 2022-07-05

Large Capacity Heating Holding Blending Cooling Tank

  • Usage:Biscuit, Cake, Pizza, Bread, Milk Industry
  • Power Source:Gas
  • Timing Device:Without Timing Device
  • Type:Mixer
  • Voltage:All
  • Customized:Customized

=== Base Info ===

  • Model NO.:KQ
  • Name and Description:Large Capacity Heating Holding Blending Cooling Ta
  • Material:Stainless Steel 304 , 316
  • Agitator Speed:36rpm, 48rpm, 960rpm ,2900rpm
  • Function:Storage ,Heaing Mixing
  • Motor Brand:Siemens , ABB
  • Wall:Single Wall ,Jacketed
  • Wheel:Yes , No
  • Heating:Electric ,Steam,Gas
  • Electronic Box:Yes
  • Manway:350mm , 400mm ,450mm
  • OEM:Yes
  • Certification:Ce & ISO
  • Insulation Wall:Rock Wool , Polyurethane Foam
  • Working Life:10 Years or More
  • Delivery:15 Days
  • Transport Package:Standard Export Wooden Box
  • Specification:ISO
  • Trademark:KQ
  • Origin:Wenzhou China
  • HS Code:8479820090
  • Production Capacity:200L To3000L

=== Description ===

Basic Info.

Model NO. KQ Name and Description Large Capacity Heating Holding Blending Cooling Ta Material Stainless Steel 304 / 316 Agitator Speed 36rpm, 48rpm, 960rpm ,2900rpm Function Storage ,Heaing Mixing Motor Brand Siemens / ABB Wall Single Wall ,Jacketed Wheel Yes / No Heating Electric /Steam/Gas Electronic Box Yes Manway 350mm / 400mm /450mm OEM Yes Certification Ce & ISO Insulation Wall Rock Wool / Polyurethane Foam Working Life 10 Years or More Delivery 15 Days Transport Package Standard Export Wooden Box Specification ISO Trademark KQ Origin Wenzhou China HS Code 8479820090 Production Capacity 200L To3000L

Product Description

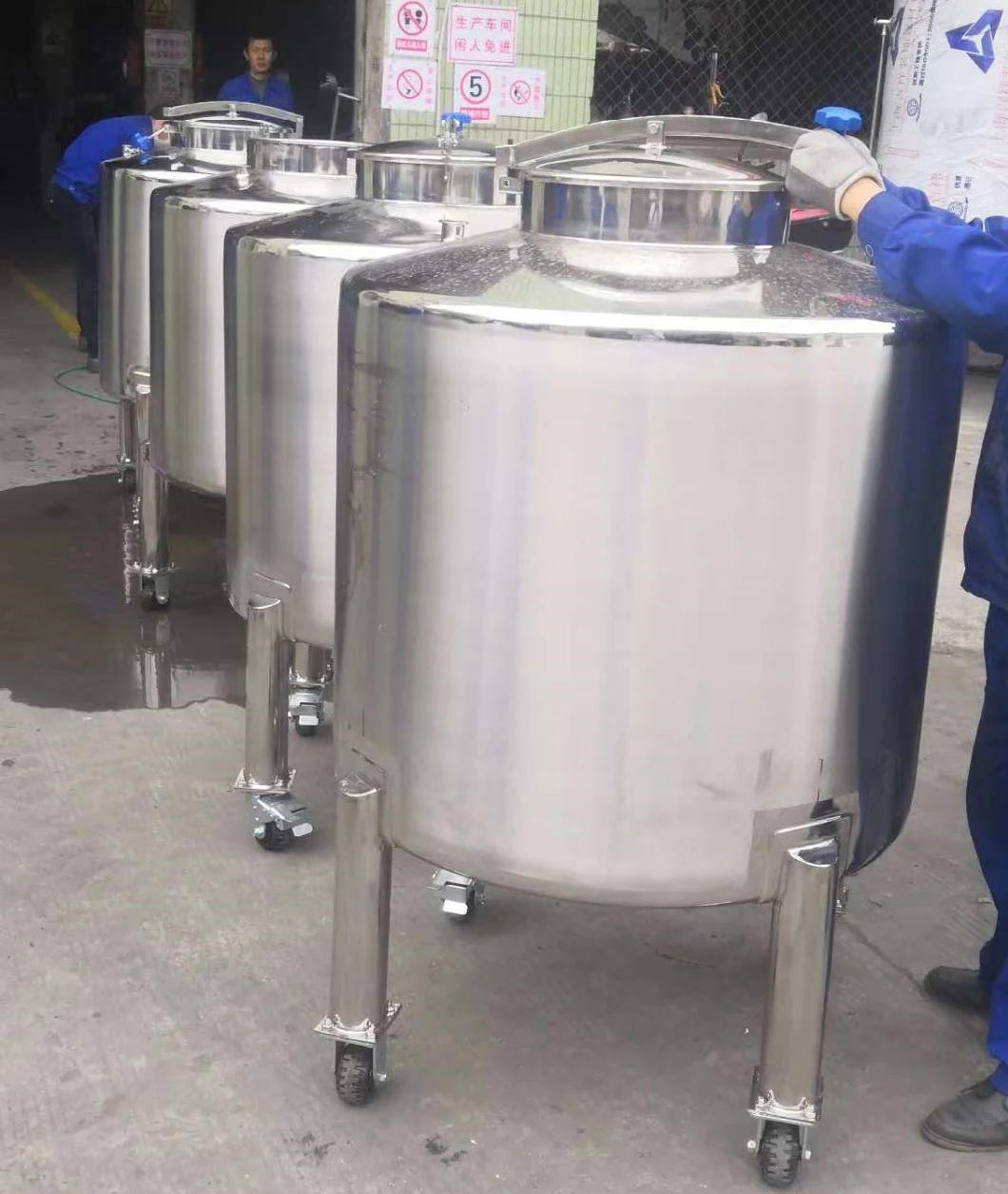

Large Capacity Heating Holding Blending Cooling Tank
Large Capacity Heating Holding Blending Cooling Tank
Large Capacity Heating Holding Blending Cooling Tank
Large Capacity Heating Holding Blending Cooling Tank

Large Capacity Heating Holding Blending Cooling TankLarge Capacity Heating Holding Blending Cooling Tank
1sugar mixing tank
TankCapacity(L)200, SS304300, SS304500, SS3041000,SS304
REV36r/min36r/min36r/min36r/min
Electric motor of the agitator0.55KW,380v,50hz0.75KW,380v,50hz0.75KW,380v,50hz1.1KW,380v,50hz

Heating Area(M2)0.91.11.94.5
Material Input/output(DN MM)38383850
OUTSIDE DEMENSION(L*W*H)MM900*900*16001000*1000*15001100*1100*17001400*1400*1750
GROSS WEIGHT(KGS)150200300450


steam vessel 500 litres
Material: Ss304
* Type: With Jacket and insulation
* Internal shell thickness: 3 mm
* Jacket thickness: 3 mm
*PU INSULATION WALL: 50MM
* Outer shell thickness: 1.5 mm
* Appearance: Ellipsoidal head top and down manhole and pipe will be as the picture you sent to us
* Accessories:
(1) Manhole covers
(2) Charging/discharging hole at the bottom,
(3) CIP Cleaning ball
(4) Steam heating tube
(5) Rack & blender etc.
(6) the electric motor
Agitator blending tank
1. More than 10 years experience
2. Capacity: 100-5000L
3. Manufacturer
4. Custom-made solution
Steam heating chemical agitator tank blending tank
PME Multi-function Blending Reactive Mixer/ vacuum homogenizer mixer
Large Capacity Heating Holding Blending Cooling Tank

High speed disperser, might mixing and disperse viscously. Solid and liquid raw material can dissolve material which is hard to dissolve such as AESAESALSA during liquid production which can save energy consumption and shorten production period.
Main blender adopts stepless speed variator device and under low temperature and high viscosity condition, less air bubble will be formed;
It is suitable to produce liquid washing products;
It can give out material directly or matched with screw pump.
Large Capacity Heating Holding Blending Cooling Tank
Double wall steam heating tankLarge Capacity Heating Holding Blending Cooling Tank
Le-layer tanks are widely applied in the beverage, food, dairy, pharmaceutical, chemical and process indusries used as blender tank, buffer tank, and storage tank, which cleanable to sanitary standards.
Doublewall steam heating tank configuration:
Manhole
CIP cleaner
Adjustable trangle bracket
Ladder
The rmometer
Liquid lever meter and controller
Eddy-proof board
Dismountable inlet assembly
Sanitary breathing cover
Specifications
We can supplies single-layer, dual-layer, and three-layer stainless tanks with or with out agitation to blend product.
Specifications
Product name: Blending tank / Mixing tank
MOQ: 1 set
MOC: Stainless steel grade 304/306L
OEM experience: 30yea
Product Name
Vertical mixer, Blending tank, Mixing vessel
Applicable range:
1. Used as liquid storage tank, liquid composing tank, temporary storage tank and liquid blending tank etc.
2. Ideal in fields such as foods, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc.
Structure characteristics
1. Adopt structure of internal tank and external package, with heat preservation materials inside.
2. Materials are all sanitary stainless steel.
3. Humanized structure design and easy to operate.
4. Transition area of interior wall on tank adopts arc for transition to ensure no dead comer of sanitation.
Configuration of tank
1. Quick open manhole.
2. Various types of CIP cleaners.
3. Fly and insect resistant sanitary breathing cover.
4. Adjustable triangular bracket.
5. Dismountable materials input pipe assembly.
6. Thermometer (According to customer requirements ).
7. Ladder (According to customer requirements).
8. Side blender.
9. Liquid level meter and lever controller (According to customer requirements).
10. Eddy-proof board.
Large Capacity Heating Holding Blending Cooling Tank
Large Capacity Heating Holding Blending Cooling Tank
Remarks
It can be made according to special requirements of customers.
Large Capacity Heating Holding Blending Cooling Tank .
