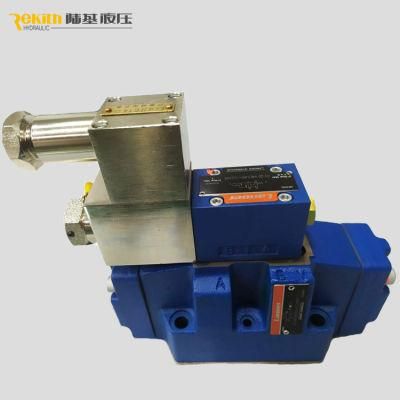

Explosion Isolation Solenoid Valve Gd-Weh16 with Damping Lander Brand

• Function：Reversing
• Installation：Plate
• Drive：Electric Hydraulic
• Type：Pilot-Operated Type
• Max Working Pressure：350bar
• Max Flowing：1100L,Min

=== Base Info ===

• Model NO.：GD-WEH16
• Transport Package：Standard Carton or Plywood Package
• Trademark：Lander
• Origin：China
• HS Code：8481201090
• Production Capacity：500 Pieces,Month

=== Description ===
Overview

Technical data

Size10162532Max.operating pressureType WEHMPa28282828Port P,A,BType H-4WEHMPa35353535Port TWith external pilot oil drainMPa31.5252525With internal pilot oil drainMPa16/21 DC        10/16 ACPort YDCMPa16/21With external pilot oil drainACMPa10/16Type 4WHMPa25Max.control pressureMPa25Min.control pressure
With external pilot oil supply
With internal pilot oil supply
Not apply to C/F/G/H/P/T/V/Z/SSpring-return 3-position valveMPa1.01.41.30.85Hydraulic-return 3-position valveMPa-1.41.80.85Spring-return 2-position valveMPa1.01.41.31.0Hydraulic-return 2-position valveMPa0.71.40.80.5FluidMineral oil suitable for NBR and FKM sealPhosphate ester for FKM sealFluid temperature rangeºC-30 to +80 (NBR seal)-20 to +80(FKM seal)Viscosity rangemm²/s2.8-500Degree of contaminationMaximum permissible degree of fluid contamination: Class 9 NAS1638Switching pilot oill volumeSpring-return 3=position valveCM³2.045.727.6429.42-position valveCM³4.0811.4515.2858.8Hydraulic-return 3-position valve -WHWEHWHWEHWHWEHFrom "0" position to working position "a"CM³-2.832.837.157.1514.414.4From working position "a" to "0" positionCM³ 2.722.914.187.029.415.1From "0" position to working position "b"CM³-5.725.7314.1814.1529.429.4From working position "a" to "0" positionCM³-8.552.8319.885.7343.814.4Flow of shortest switching timeL/min35353545WeightSingle solenoid valvekg6.48.517.640.5Double solenoid,spring-returnkg6.88.91841Double solenoid, hydraulic-reurnkg6.88.91941Hydraulic control valvekg5.57.316.539.5Switching time regulatorkg0.8educing valvekg0.4Installation positionC,D,K,Z,Y type hydaulic-return valves are installed horizontally, the rest can be installed arbitrarily

Ordering code

Product categories

 FAQ

Q1: What is your sample policy?

A: We can supply two free samples, but the customers have to pay the courier cost.

Q2: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

Q3: How to guarantee the high quality?
A: We have testing department to make sure quality of every product, appearance, flow and pressure test are good.

Q4: How about your delivery time?
A: Generally, it will take 7 to 20 days after receiving your payment. The specific delivery time depends on the items and the quantity of your order.

Q5: What is your terms of delivery?
A: EXW, FOB, CFR, CIF.

Q6: What is your terms of packing?
A: Generally, we pack our goods in brown cartons and plywood boxes.

Q7: What is your terms of payment?
A: 100% T/T in advance, or 30% T/T as deposit and 70% paid before delivery for bigger order with bigger value.

Q8: How do you make our besiness long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers benefit. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
