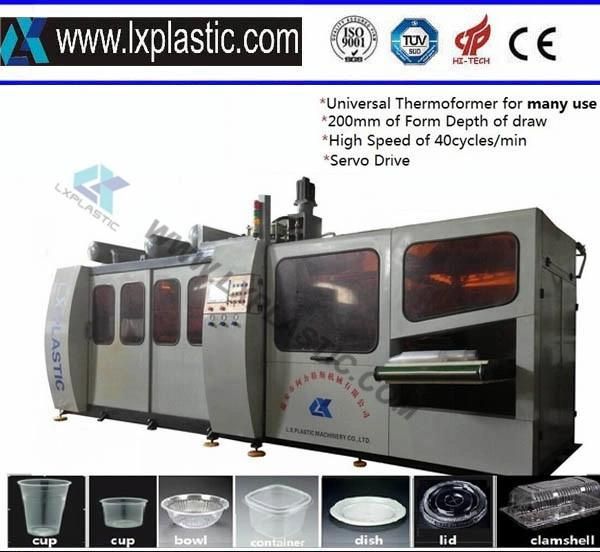

Hy 5476 Contact Heat Thermoforming Equipment Machine with Robot for Pet Tray 3

=== Base Info ===

=== Description ===
Machine Dimensions 3250mm*2000mm*2200mm2250mm*2260mm*1860mmMachine Weight 5000kg



FAQ
What can IM Model do?
It produces clamshell,container,lid, tray and dish with rolled-lip
What material IM mdoel can process?
It can mainly process PP PET BOPS PS PVC sheet
What is MAX. speed of praticl production?
 As far as we tested, it is 33cycles/min for 0.2mm PET . for higher speed , we still need  more testing
What is Trim-in-place and what is post-trim?
Trim-in-place means forming and cutting inside the same mould .
Post-trim means cutting after forming.
what is different among IM 2in1 ,IM 3in1 and IM 4in1?
 *IM-2in1 does  forming and cutting in the same station with steel-rule-knife.
 It can makes any packaging  if there is no requirement of making holes on it.
 *IM-3in1=IM-2in1+ second cut-press   , it can do trim-in-place process and post-trim process . it means it can do cutting after forming station  and  in forming station.
 *IM-4in1=IM-2in1 +second cut-press +thrid cut-press, it can do trim-in-place and post-trim process and also do hole-punching  .
6. what is the advantage of trim-in-place ?
* bring indentical trimming for parts made in film with high shrinkage rate like pure PP .
* no wasting time on adjustting accuracy of trimming
*no wasting money to make an independent cutting tool
Technical support
Upon receiving the deposit, we will offer the following technical services:
1. Make drawings of your project for your approval after receiving your samples
2. Provide mould drawings  .
3. Provide electric diagram .
4.provide drawings of sensor layout, pneumatic layout, sensor layout and motor layout
5.provide picture of labeling of all electric parts and pneumatic parts.
6. Free technical suggestions on adjusting of equipment layout and application.
5. Equipment upgrading (customers need to pay the cost);

Quality assurance
1. Strictly conforming to ISO9001-2000 quality management system an and Security  conforming to CE ;
2. Strict control from purchasing inspection, process inspection to final proofing;
3. Established several QC departments to execute quality control regulations;
4. Detailed quality control examples:
  (1) Complete files for quality control and quality feedback;
  (2) Strict inspection for the components  to assure products free of damage and avoid rust-eaten and paint peeling off later on.
  (3) Only qualified components will be assembled and total equipment must be inspected completely before sale.

After sale service
1. we can offer a full training in our factory on operation and maintain
2. Installation and commissioning in buyer's factory is available with all cost caused by visit on buyer's account.
3. The warranty is one year.  And after one year of warranty, service is still available with cost on buyer's account if it
 involves parts changing.
