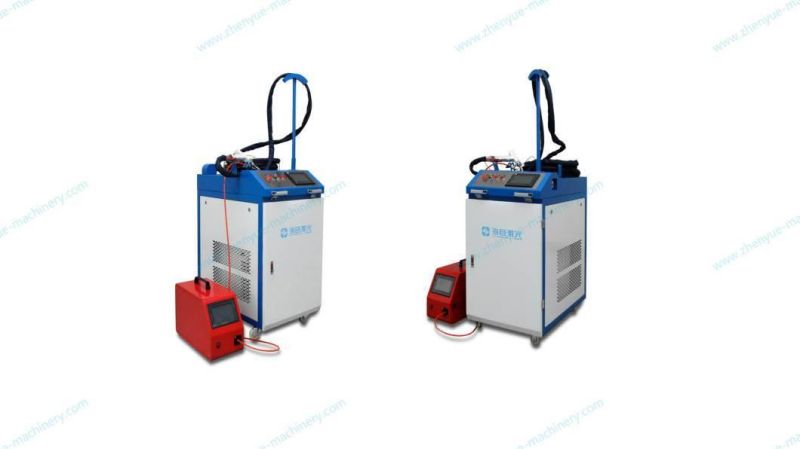

Factory Price Moving Handle Welder Handle Laser Welding Machine

Taizhou Huangyan Shenhua Plastic Factory / 2022-06-23

After-sales Service：Online Sales After Service
Warranty：2 Years
Application：Electronic Industry, Automotive Industry, Manufacturing Industry, Aviation,Chemical Industry
Technical Class：Pulse Laser
Control：Manual
Power Density：Deep Fusion Welding

=== Base Info ===

Model NO.：HR-SCW1000
Laser Classification：Optical Fiber Laser
Type：Portable Welding Machine
Weight：150kg
Dimension：1100X620X1100mm
Power Demand：220V,50Hz
Laser Device：Bwt
Laser Power：1000W
Welding Depth：1mm
Cooling：Water
Laser Wavelength：1064nm
Maximum Input Power：14kw
Spot Diameter：0.3mm-0.8mm
Transport Package：Standard Export Plywood Cases
Specification：1100x620x1100mm
Trademark：HAIRONG
Origin：China
HS Code：8515809090
Production Capacity：300units,Month

=== Description ===

Laser Power

1000W

1500W

2000W

Maximum Input Power

14 KW

Laser Medium Nd

Optical Fiber

Laser Wavelength

1064 nm

Rated laser output power

300~1000 W

Laser power instability

≤ ±2.5%

Spot Diameter

0.3 mm - 0.8 mm

Pulse Width

0.2 ms - 20 ms

Pulse Frequency

1 Hz - 150 Hz

Welding Depth

1mm

2mm

3mm

Positioning Accuracy

0.02 mm

Repeat positioning accuracy

±0.01mm

Cooling

Circulating Water Cooling

Power Demand

220V/50HZ

Dimension

1100x620x1100mm

Weight

150kg

3.Product Superiority
1). Stable laser energy and good beam mode.
2). It has high aspect ratio, small weld width, small heat affected zone, small deformation and fast welding speed.
3). It is combined with computer technology and uses CNC automatic operation.
4). It is of high precision, high efficiency, low processing noise and has no pollution to the environment.
5). It has the function of automatic protection by current interruption in the case of misoperation and over temperature.
Factory Price Moving Handle Welder Handle Laser Welding Machine

4.Application Fields
It is applicable to welding gold, silver, platinum, stainless steel, titanium, copper, aluminum and other metals and their alloy materials. It has been widely used in aviation, machinery, electronics, communication, power, chemical industry, automobile manufacturing, colleges and scientific research institutes. Maximum welding penetration ≤ 1.5mm (stainless steel material). Welding seam width 0.2-0.6mm.

5.Marking Sample
Factory Price Moving Handle Welder Handle Laser Welding Machine
