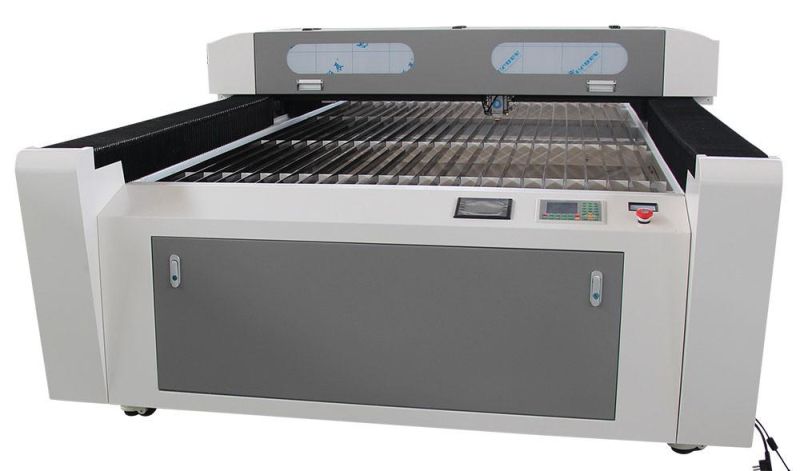

Wood Acrylic Plastic CO2 Laser CNC Engraving Cutting Machine Flc9060

• Warranty：2 Years
• Application：Leather Industry, Printing & Packaging, Crafts Industr, Advertising Industry

=== Base Info ===

• Model NO.：FLC9060
• Cooling System：Water Cooling
• Technical Class：Continuous Wave Laser
• Automatic Grade：Automatic
• Applicable Material：Nonmetal
• Type：Oscillating Mirror
• Laser Classification：Gaseous Laser
• Engraving Method：Vector Engraving
• Laser Type：CO2
• Laser Power：60W,80W,100W,130W,150W
• Engraving Area：900*600mm
• Max Engraving Speed：60000mm,Min
• Max Cutting Speed：36000mm,Min
• Graphic Format Supported：Hpgl, BMP, Plt, Dst, Dxf, and Ai ...
• Transport Package：Plywood
• Specification：9060
• Trademark：flying
• Origin：China
• HS Code：8456100090
• Production Capacity：100PC,Month
• Package size per unit product：149.00cm * 114.00cm * 122.00cm
• Gross weight per unit product：300.000kg

=== Description ===
Uses color property to set function, speed, and laser power Advantages:1) Materials can extend through the front and rear doors to allow for a larger work product.2) Red-Dot pointer to help you see the expected laser beam position.3) Auto Focus laser head makes higher precise cutting and let operation more convenient.4) Wifi receiver is more convenient for the operator to transmit the files to the machine.5) The Y-axis transmission structure adopts the intermediate design, and the force on both sides is more balanced; the deceleration design greatly enhances the output torque and the power is more powerful; the design of the coupling makes the verticality of the horizontal and vertical axes more perfect and precise. 6) Newly developed advanced laser power supply with voltage stabilization function.7) New laser tubes with the latest technology, improves the stability of the product structure, and improves the beam-spot output mode. Compared to other products, it has features of "excellent beam spot, longer beam-convergence, and easy installation".

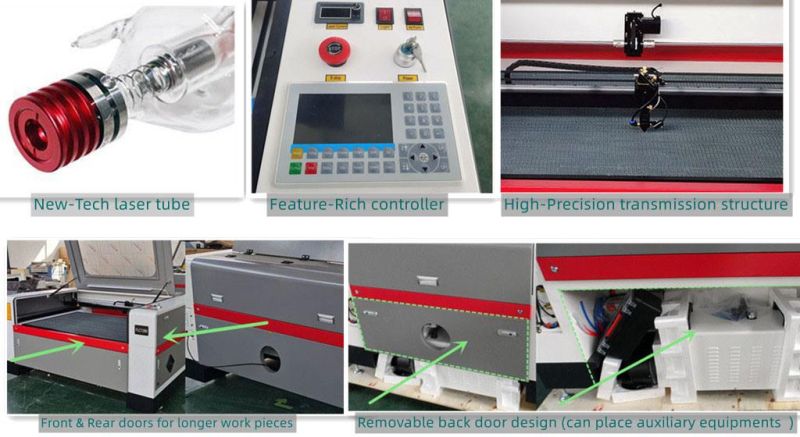

Machine Details:
Functional Options:
We offer the most complete lineup of laser machines on the market today. Our machines are capable of handing about any material imaginable. Take a look at some of the most popular materials and applications.
More samples for viewing:

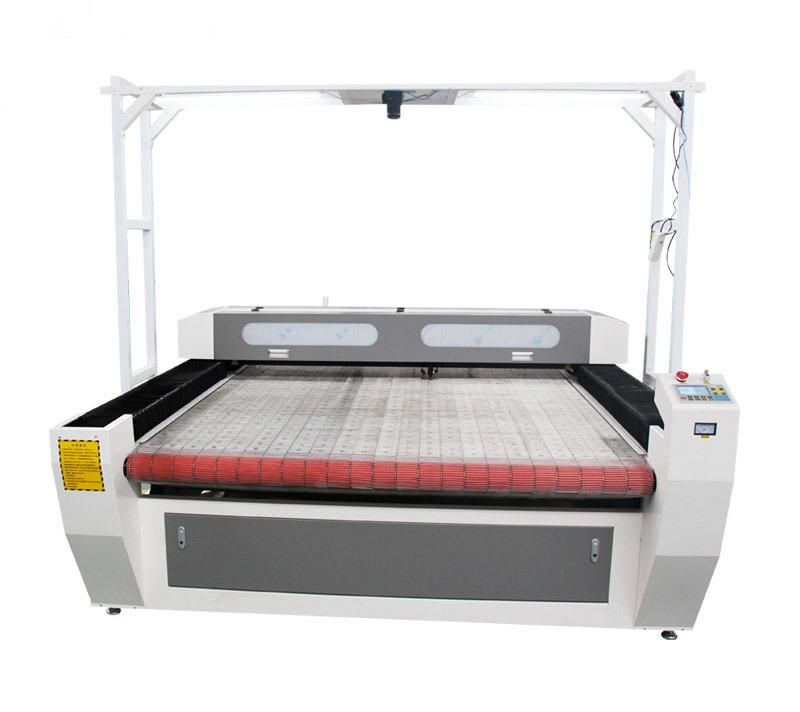

Auto Feeding Laser Cutting Bed:

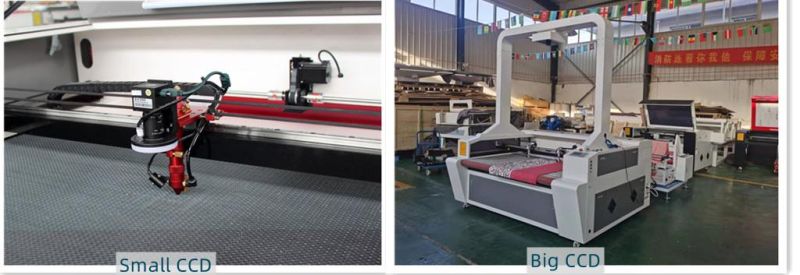

The laser cutting machine with auto feeding device is designed for cutting fabric, leather,cloth,paper and other soft materials in rolls, which largely enhances the working efficiency and saves time. Equipped with CCD camera it can automatically recognize and locate works patterns, realize auto locating and auto cutting.

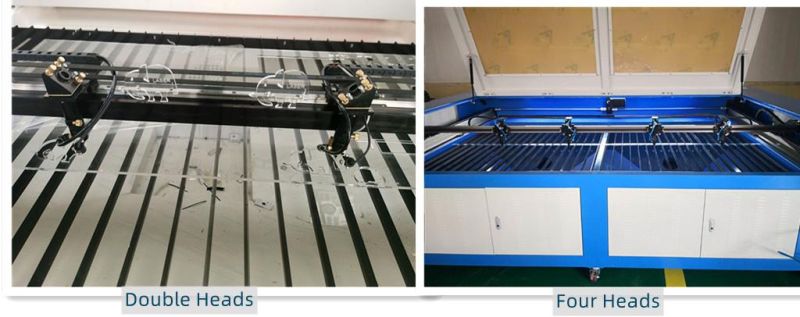

It can be equipped with one, two or four cutting heads, the two or four cutting heads can work at the same time. The auto feeding system can load materials by itself which can save the labor force , cut the cost and Improve work efficiency.

Mixed Laser Cutter for Metal and NON-metals:

It can cut metals such as stainless steel,carbon steel, also can cut non-metal such as acrylic, wood, leather, fabric, fiberglass, foam, plastic and etc. It is equipped with advanced laser controlling system with auto focus function, if the metal sheet is not flat, the system can sense the distance from the nozzle to the material surface and follow the surface up and down to automatically adjust the certain focus distance to keep the highest precision cutting quality.
