Plastic Compounding&Granulating Parallel Twin-Screw Extruder

=== Base Info ===

=== Description ===

Basic Info.

Model NO. TSK-20, TSK-35, TSK-50, TSK-65, TSK-75, TSK-95 Engagement System Full Intermeshing Screw Channel Structure Deep Screw Automation Automatic Computerized Computerized Transport Package Wood Pallet and PE Film Specification ISO9001, CE Trademark BEIER MACHINERY Origin China HS Code 84772090 Production Capacity 100sets/Year

Product Description

Tsk Series Parallel Twin-Screw Extruder

TSK Parallel twin-screw extruder is a kind of high-efficiency compounding and extruding equipment.

The screw & barrel adopt building block type design principle to change the length of the barrel, choose different screw stem parts to assemble the line according to material characteristics to get the best work condition and max function.

Because it has good mixing, separating, dewatering and self-cleaning functions to avoid the materials wrapping the axle, caking in the extruding process. With the rotation of the screw, the surface of the materials continuously change, helps the volatile matter dewater, treat, and etc.

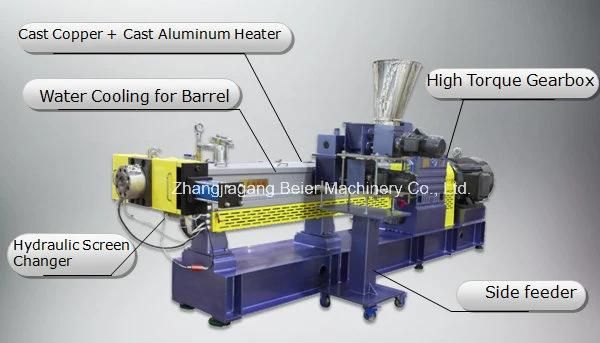

Machine Design

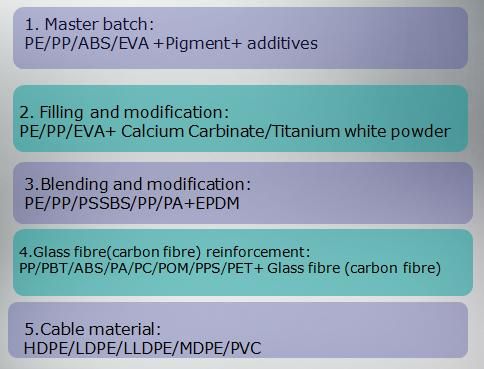

Usages of TSK Series Parallel Twin Screw Extruder

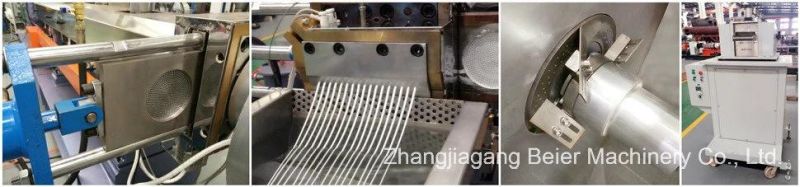

Four Kinds Compounding&Granulating Methods

1. Strand Pelletizing Line
2. Air-cooling Die-face Pelletizing Line
3. Water-ring Die-face Pelletizing Line
4. Under-Water Pelletizing Line


Technical Parameter

Model	TSK-20	TSK-35	TSK-50	TSK-65	TSK-75	TSK-95
Screw diameter (mm)	21.8	35.6	50.5	62.4	71.2	91
L/D	32-40	32-52	32/52	32/52	32/52	32/48
Main motor (KW)	3-4	15	37-45	55-75	90-110	220-280
Max screw speed (rpm)	600	600	500	500	500	400
Capacity (kg/h)	1.5-10	40-70	100-150	250-300	400-500	600-1000
