Multi-Layer Co-Extrusion Film Blowing Machine

=== Base Info ===

=== Description ===
Model
     45-50-55-50-45/1800   Width of the film  Flat bag  450-1600mm Thickness of the film0.006-0.3mmThe max output180-250 kg/h
According to different width,thickness of film, die size and raw material characteristics to changeRaw materialLDPE LLDPEPower consumption  50kw/h  Weight  1900kg  Overall dimension(L*W*H)m 8.5*6*12Extruder unitDiameter of screw Φ45-50-55-50-45
SAMC645 WITH HARDEN AND NITRUGEN bimetallic   five years guaranteeL/D ratio of screw30:1Rotation speed of screw10-120r/mBarrel FanZone 4 barrels install over-temperature fanGear box146*173*180*173*146

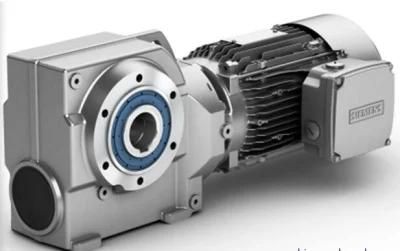

Extruder special hard gear reducer,tooth grinding teeth hardened, internal and external oil circulation systemMain motor 15 KW*18.5kw*22kw*18.5kw*15kw
100% Original three-phase variable frequency motor  Equipped with inverter controlDie head unitDie diameter
 380mm LDPE
With 40Cr steel forging finishing, eight feed trough runner,Uniform flow channel,blown plasticizing effectCool unitAir ring materialHigh quality Taiwan cast aluminum alloy air ringBellow power
  7.5kw*3
high-pressure mute fanTraction unitWidth of take up roller 1800mm

 Optional Device:
1:EPC device  not necessary
2:Automatic edge recycling system
3:IBC COOLING SYSTEM
4:Germany film thickness and width control system
5:IBC COOLING SYSTEM
6:OSCILLATING TAKE UP UNIT
7:HEATING SLITING SYSTEM
8: GRAVIMETRIC DOSING UNIT
9:Automatic Double winder with slitting knife with PLC
10: Mick computer controller
11: faster change filter
12: 360 rotary diehead

Packaging & Shipping

Package: the machine could be packed by film or wooden boxes.
Shipment: from tianjin,China port to destination port

About us:
1) All Our Machines with CE BV SGS and ISO certificates
2) Machines exported to Sauid , USA, UAE, Mexico, Africa,Vietnam,Thailand,Jodan and so on
3) All machines will be examined and test before delivery
4) Offer you skillful knowledge on machines and If you need, engineer will help you train workers how to operate
5) Guarantee for five years , Long Life Services
