China Front End Plunger Hydraulic Cylinder for Tipper Dump Truck

• Certification：RoHS, CE, ISO9001
• Pressure：Medium Pressure
• Work Temperature：Normal Temperature
• Acting Way：Single Acting
• Working Method：Straight Trip
• Adjusted Form：Regulated Type

=== Base Info ===

• Structure：Telescopic Cylinder
• Material：Steel
• Place of Origin：Shandong, China
• Delivery Time：20 Days
• Quality Guarantee Time：14 Months From The Day of Delivery
• Numbers of Stage：3, 4, 5
• Transport Package：Pallet, Wooden Case or as Your Requirement
• Trademark：WTJX
• Origin：Shandong, China
• HS Code：8412210000
• Production Capacity：200, 000 PCS,Year

=== Description ===

Basic Info.

Structure Telescopic Cylinder Material Steel Place of Origin Shandong, China Delivery Time 20 Days Quality Guarantee Time 14 Months From The Day of Delivery Numbers of Stage 3, 4, 5 Transport Package Pallet, Wooden Case or as Your Requirement Trademark WTJX Origin Shandong, China HS Code 8412210000 Production Capacity 200, 000 PCS/Year

Product Description

China Front End Plunger Hydraulic Cylinder for Tipper Dump Truck




Model	The first stage rod diameter	Stroke	Closed length	Open length
WTPK 3TG F5*72	5"	1829mm	945mm	2773mm
WTPK 3TG F5*84	5"	2134mm	1046mm	3180mm
WTPK 3TG F5*107	5"	158/136/116/95	1229mm	3961mm
WTPK 3TG F5*126	5"	3216mm	1386mm	4602mm
WTPK 3TG F6*86	6"	3216mm	1038mm	3241mm
WTPK 3TG F6*104	6"	2640mm	1194mm	3834mm
WTPK 3TG F6*107	6"	2732mm	1289mm	3961mm
WTPK 3TG F6*111	6"	2819mm	1268mm	4087mm
WTPK 3TG F6*120	6"	3048mm	1359mm	4407mm
WTPK 3TG F6*126	6"	3208mm	1386mm	4594mm
WTPK 3TG F6*140	6"	3562mm	1519mm	5081mm
WTPK 4TG F6*135	6"	3429mm	1199mm	4628mm
WTPK 4TG F6*156	6"	3962mm	1362mm	5324mm
WTPK 3TG F7*110	7"	2810mm	1271mm	4081mm
WTPK 3TG F7*120	7"	3048mm	1349mm	4397mm
WTPK 3TG F7*124	7"	3172mm	1392mm	4564mm
WTPK 3TG F7*129	7"	3277mm	1435mm	4712mm
WTPK 3TG F7*140	7"	3567mm	1524mm	5091mm
WTPK 3TG F7*150	7"	3810mm	1613mm	5423mm
WTPK 4TG F7*120	7"	3048mm	1349mm	4168mm
WTPK 4TG F7*135	7"	3429mm	1230mm	4659mm
WTPK 4TG F7*140	7"	3556mm	1263mm	4819mm
WTPK 4TG F7*156	7"	3962mm	1365mm	5327mm
WTPK 4TG F7*161	7"	4108mm	1405mm	5513mm
WTPK 4TG F7*167	7"	4242mm	1432mm	5674mm
WTPK 4TG F7*180	7"	4572mm	1552mm	6124mm
WTPK 4TG F8*148	8"	3753mm	1308mm	5061mm
WTPK 4TG F8*156	8"	3962mm	1365mm	5327mm
WTPK 4TG F8*161	8"	4064mm	1416mm	5480mm
WTPK 4TG F8*170	8"	4318mm	1454mm	5481mm
WTPK 4TG F8*180	8"	4572mm	1518mm	6090m
WTPK 5TG F8*170	8"	4318mm	1267mm	5585mm
WTPK 5TG F8*190	8"	4800mm	1387mm	6188mm
WTPK 5TG F8*220	8"	5588mm	1524mm	7122mm
WTPK 5TG F8*235	8"	5944mm	1641mm	7585mm
WTPK 5TG F8*250	8"	6325mm	1743mm	8068mm
WTPK 5TG F9*265	9"	6731mm	1844mm	8575mm
WTPK 5TG F9*280	9"	7112mm	1997mm	9109mm
WTPK 5TG F9*300	9"	7620mm	2007mm	9627mm
WTPK 5TG F9*320	9"	8129mm	2108mm	9628mm
WTPK 5TG F9*340	9"	8636mm	2210mm	10846mm



Cylinder Tube O.D.	6.03"(153.2mm)--10.50"(266.70mm)
Operating Pressure	3000PSI (207Bar)
Numbers of Stage	3, 4, 5
Largest Moving Stage Diameter	5.0" (127mm)--9.0"(228.60mm)
Stroke	71.94"(1827.30mm)--339.88"(8632.95mm)
Closed Length	36.62"(930.10mm)--90.62"(2301.70mm)
Extended Length	108.56"(2757.40mm)--430.50"(10934.70mm)
Base Mount Width	7.00" (177.80mm)--10.68"(271.30mm)
Base Mount Diameter	2.06"(52.30mm)--2.12"(53.80mm)
Plunger Mount Diameter	2.00"(50.80mm)
Plunger Mount Thickness	2.03"(51.60mm)
Warranty Period	14 months after date of production

Company Introduction:

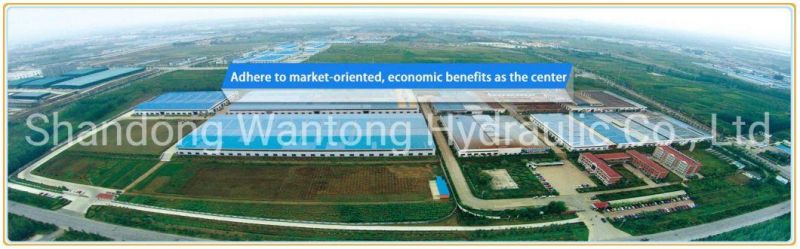

Shandong wantong hydraulic co., ltd. sets up in 1994, is a specialized custom hydraulic cylinder for tipper truck manufacturing enterpirise which takes up with design, manufacturer, sell hydraulic products. The company covers an area of 180,000 square meters, with 500 emplayees in it. There are 700 sets of manufacturing equipments, such as cold drawing production lines, surface treatment production line, boring and rolling production line, various of digital-control machining and testing equipment.



Production advantages:
1.The North American advanced processing technology is adopted to ensure the stable performance.
2.High quality alloy seamless steel pipe are adopted to keep big lifting capacity and light weight;
3.The application of imperial size makes it easy to replace the seals and other accessories;
4.Superior chrome-plating technology improves the corrosion resistance and hardness of cylinders;
5.The world famous brands of seals such as HALLITE, PARKER and NOK ensure the sealing performance;

>Professional manufacturer& supplier of Hydraulic Cylinders for more than 22 years;
>Hydraulic Cylinders Certification ISO9001:2008, SGS, TS16949, RoHS, CNAS Certification;
>Experience in export North America, Australia, Asia, Middle East, Africa;
>Hydraulic Cylinders can be Make according to client's requirements;
>The Hydraulic Cylinders can be used for Dump Truck, Tipper Truck, Trailer, Agricultural Machinery, Engineering Machinery, Garbage Truck, Landing Platform etc;
>We are the supplier of Sinotruk, CNHTC, CIMC, Wuzheng, Beiben Truck, Baic Group, FOTON, HOWO, JAC, Sichuan Hyundai, Dayun, Shanxi Automobile, most of famous truck manufacturing and refitting company use our telescopic cylinder as first choice.


Exhibitions& Customers:
>We are the supplier of Sinotruk, CNHTC, CIMC, Wuzheng, Beiben Truck, Baic Group, FOTON, HOWO, JAC, Sichuan Hyundai, Dayun, Shanxi Automobile, most of famous truck manufacturing and refitting company use our telescopic cylinder as first choice.

>We attended each Bauma exhibition, the world grade fair for construction equipments, building material machines, mining machines and earn much more opportunity to extend our business to oversea market.


Quality Control:
>All specification is designed by professional engineer.
>All material is high quality-Seal kits were purchased from USA, Japan, UK and Sweden.
>All material is processed by skilled workers and advanced CNC lathe
>All cylinders are 100% tested before package to ensure every cylinder is qualified for its purpose
>Package is air cushion film for each cylinder and steel case for all cylinders to ensure goods can arrive at customer safely
>One year warranty and long time track service is offered to solve any problems you meet after sale.
 Guarantee and after sale service:
>7 x 24 hours technical support through email
>Goods will be delivered safely on time
>One year guarantee after destination port arrival
>Life long time track service



FAQ:
Q1. What are the same aspects of your cylinder with Hyva cylinder?
A: Same inside structure.
Same outside dimension and same mounting sizes. It can be interchangeable with Hyva's

Q2. Compared with Hyva cylinder, what are your cylinder advantages?
A: 1. Rod are chrome plated.
2. Tubes are quenched and tempered.
3. Tube inner hole goes through deephole boring machine processing. Surface roughness is 0.4Ra
and circular degree is 0.025.
4. Good quality yet lower price.

Q3: Are you a manufacture or a trade company?
A: Manufacture, we are the leader manufacturer of hydraulic industry in China with 20 years' experience and technology accumulation. With strong technical team we could solve any annoyance of you.

Q4: Do you have quality control system?
A: Yes, The quality management system introduced is: ISO/TS 16949:2009-certified by NQA and IATF cert.

Q5: How can i get a booklet and buy a cylinder from you?
A: Very easy! Just leave me a message or email or call me directly, let me know you are interesting in our products. I will talk with you for the details soon!

Q6: Can you tell me the price for the cylinder?
A: 1. Please advice the drawing with technical requirement.
2. Please advice the model No. after you check our booklet.
3. Please advice the tipping capacity, number of stages, closed length, mounting type and size.
4. Please also help advice the quantities, this is very important.

Q7: Do your products come with a warranty?
A: Yes, we have one year warranty. In this year, if the quality problem we will free repair for you.

Q8: Hydraulic cylinder internal leakage?
A: 3 main reasons causing internal leakage: Overload, polishing bad controlled, cheap seal kits. As is known to all, vehicles in China are often overloaded, our products all designed to bear the overload power. Advanced equipment could assure the polish processing. And we use the imported/TOP brand seals to meet customers' requirement.

Q9: What about the quality feedback of your products?
A: WE HAVE NEVER RECEIVED EVEN ONCE QUALITY COMPLAINT FOR MANY YEARS OF INTERNATIONAL BUSINESS.

Q10: Can you help me to install or recommend what kind of hydraulic cylinder or power pack should I use for specific machine?
A: Yes, we have 25 experienced engineers who are always ready to help you. If you do not know what kind of hydraulic cylinders should be used in your machine, please just contact us, our engineers will design the exact products match your need.

Q11: What is the delivery time?
A: Within 20 days for samples.
15-30 days for bulk production, which is depend on quality, production process and so on.

Q12: What is your main payment term?
A: T/T, L/C, D/A, D/P either is available.
