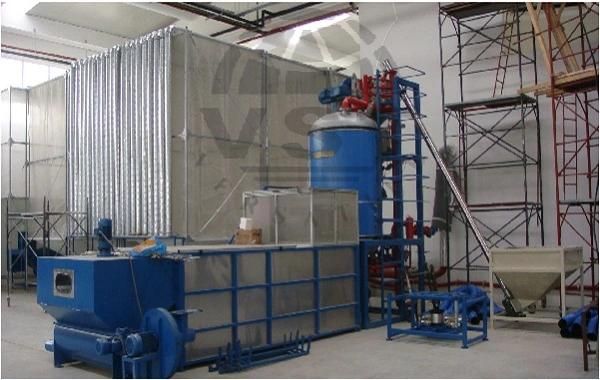

EPS Pre Expander Machine for EPS Bead Expansion

Huisen Diamond Tools Co., Ltd / 2022-07-04

EPS Pre Expander Machine for EPS Bead Expansion

=== Base Info ===

=== Description ===

Basic Info.

Model NO. PSJ110-160 Condition New Application EPS Foam for EPS Plant Warranty 1year Transport Package Standard Export Package Trademark VST Origin Zhejiang, China (Mainland) Production Capacity 20 Unit / Month

Product Description

Main Features:
1, All process including filling, expanding, sieving, delumping and conveying to silos are done automatically.
2, With primary and secondary expansion device to get density of 8-30g/l
3, Fist filling is controlled by frequency converter
4, With power-off protection device
5, With Japan steam presure reducing valve

TECHNICAL DATA

Item PSY-70PSY-90PSY-120
Expansion ChamberDiameter
Volume
Useable volume
Φ 700mm
0.6 m³
0.4m³
Φ 900mm
1.2 m³
0.8m³
Φ 1200mm
2.2m³
1.5m³
SteamEntry
Consumption
Pressure
DN20
80-100kg/cycle
0.6-0.8MPa
DN40
100-150kg/cycle
0.6-0.8MPa
DN40
150-200kg/cycle
0.6-0.8MPa
Compressed AirEntry
Pressure
DN15
0.6-0.8MPa
DN20
0.6-0.8MPa
DN20
0.6-0.8MPa
DrainageCondensateΦ 20mmΦ 20mmΦ 20mm
Throughout15g/l
20g/l
25g/l
30g/l
100g/l
120g/l
150g/l
200g/l
150g/l
200g/l
250g/l
300g/l
250g/l
300g/l
410g/l
500g/l
Material Conveying Line Φ 150mmΦ 150mmΦ 150mm
Connected Load 8.93Kw9.73Kw13.33Kw
DensityFirst expansion
Second expansion
12-30g/l
  8-11g/l
12-30g/l
8-11g/l
14-30g/l
8-13g/l
Overall  Dimension(L*W*H)4700*2660*2600(mm)4700*2930*3200(mm)4905*4655*3250(mm)
Weight 1300kg1500kg1800kg
Room Height Required 3000mm3000mm3000mm
