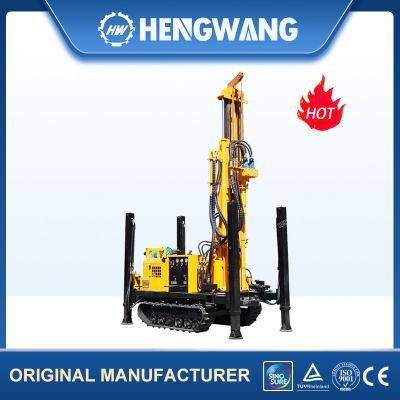

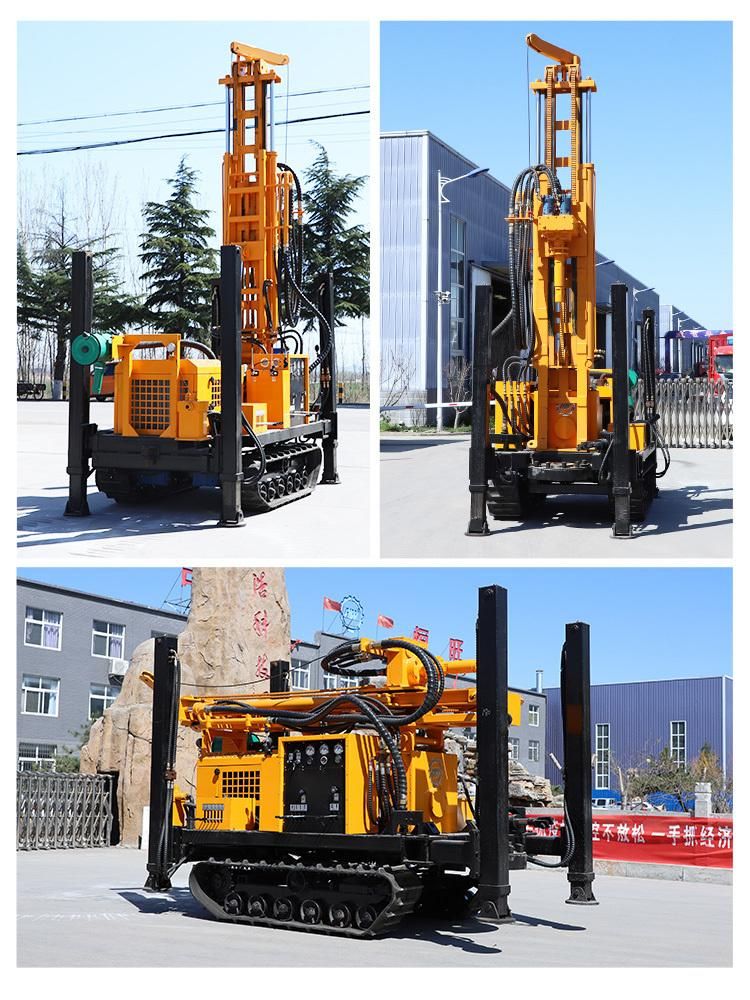

Crawler Pneumatic Hard Rock Borehole Drilling Rig

=== Base Info ===

=== Description ===

Model

HQZ-180L

Overall weight (T )

3.5

Dimension (mm )

3400*1500*2400

Drilling diameter (mm )

130-245

Drilling depth (m)

180

One-time advance length of the drill(mm)

3000

Traveling speed (km/h )

2.5

Climbing ability (max )

25°

Minimum Ground Clearance (mm)

250

Working Air Pressure (mpa )

1.45 - 2.5

Air consumption(m³/min)

15 - 27

Main machine power (kw)

Yunnei 42Kw

Rotary Speed (rpm)

38 - 80

Rotary torque (Nm)

4000-5000
