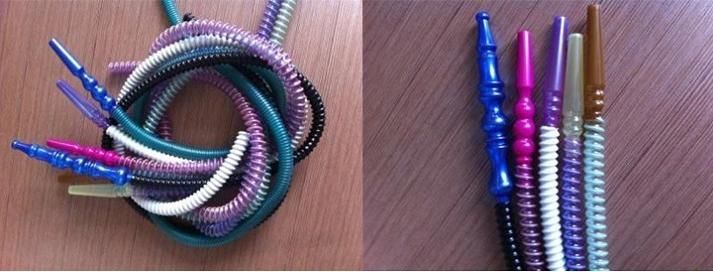

How to Manufacture Shisha Hose? Hookah Shisha Hose Making Machine

=== Base Info ===

=== Description ===

Basic Info.

Model NO. SJ45 Customized Customized Condition New After-sales Service One Year Pipe Diameter 12mm-32mm Screw Barrel Alloy/Bi Material Motor Siemens or Top Local Brand Drive by ABB or Other Top Brand Output Upto 40kg/Hr Delivery Time 40 Days Guarantee Period 1 Year Electrical Components Siemens, ABB, Omron, etc. Machine Control by Siemens PLC Screen Touch Speed Control by Inverter Transport Package Plastic Film and Wooden Box Specification Pipe size upto 32mm Trademark CONBOPLAS Origin Zhangjiagang HS Code 84778000 Production Capacity 30 Sets/Month

Product Description

General introduction:

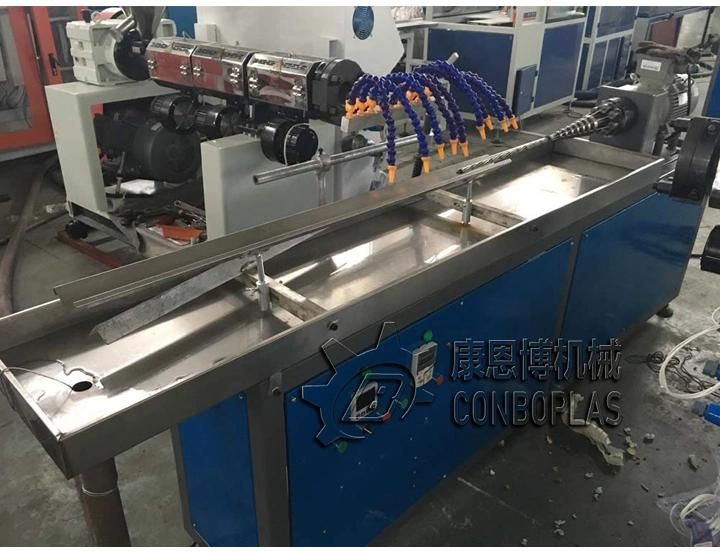

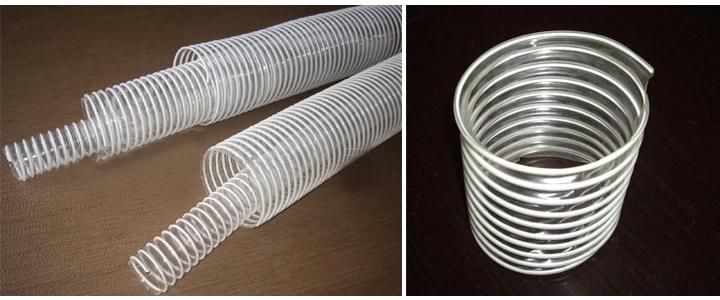

The extrusion line is used to produce PVC wire reinforced transparent hose. The hose wall is made of transparent PVC plastic. In the hose inner-wall, there are spiral wire.
The kind of hose has the advantage of extrusion resistance, corrosion resistance, static electricity resistance, anti-high pressure and good running.
It is suitable for the conveying high pressure or combustible gas and liquid, heavy suction and delivery of liquid sludge. It is mainly used in the fields machinery, such as chemical industry, building, irrigation and vacuum pumps, etc.

Features:
1. The special design of high speed, high efficiency extruder, to ensure the quality and output of the material.
2. Special design of the wire wind spring machine, uniform spring, continuous production time is long.
3. The special design of the pipe head, the production of high transparency, wire distribution uniformity, the length can be arbitrarily set.
4. The main unit of the main electrical components are imported products, stable and reliable operation.
5. The unit of all keys using integrated design, operation is simple and quick.
Process flow:

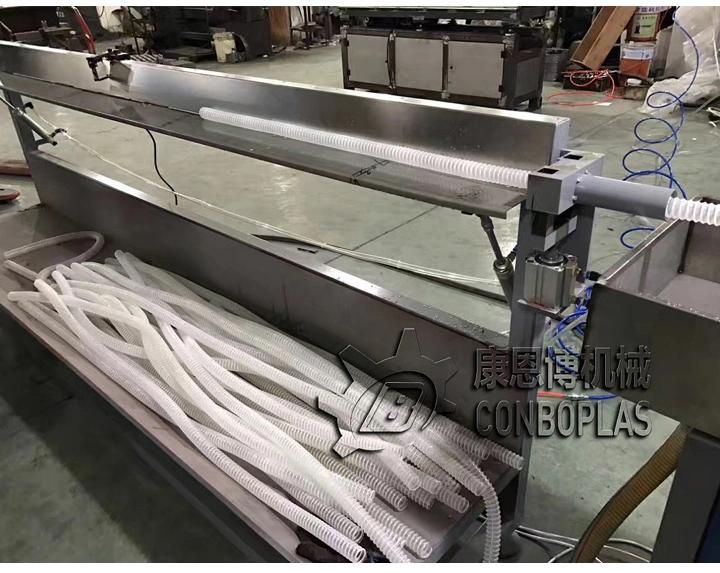

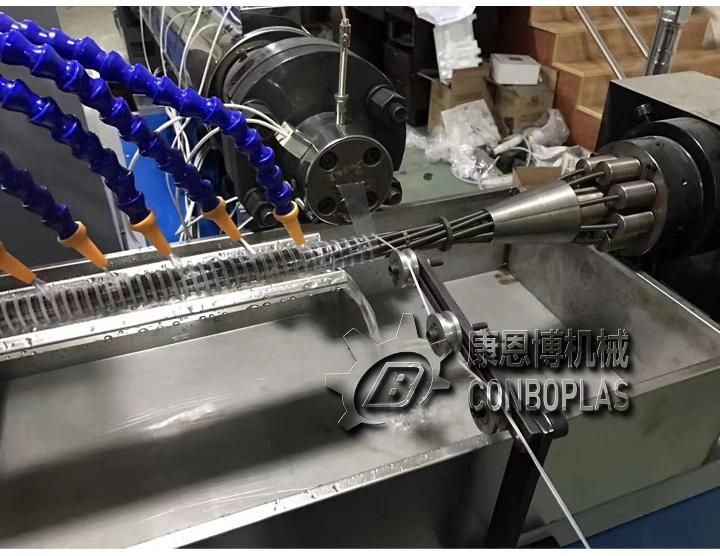

Raw material + additive → mixing → granulating → conveying feeding→ single screw extruder→ steel wire forming machine→ extruding mold → spray cooling tank→ belt haul-off → winder → finished product inspecting & packing

Technical parameters:

Extruder model	Pipe diameter range	Total power	Output of extruder
SJ45	12mm-20mm	30kw	Around 35kg/h
SJ65	20mm-50mm	40kw	Around 60kg/h
SJ90	50mm-75mm	50kw	Around 100kg/h

Remarks: all the information above is only for reference; pls feel free to contact us for specified information.
