PVC Four Cavity Extrusion line

=== Base Info ===

=== Description ===

Basic Info.

Condition New Cavity Mould 4 Cavity Transport Package Wood Pallet and PE Film Specification ISO9001, CE Trademark BEIER MACHINERY Origin China HS Code 84772090 Production Capacity 20set/Year

Product Description

PVC Four Cavity ExtrusionLine
 Features and application

This line can save investment cost in factory building and production, which increase the
capacity a lot and reduce production time.

SJSZ65 conical twin-screw extruder
                                                    can easily reach 5.5-6.5 ton per day,
the production speed take 16mm as example can get more than 8-10m/min.

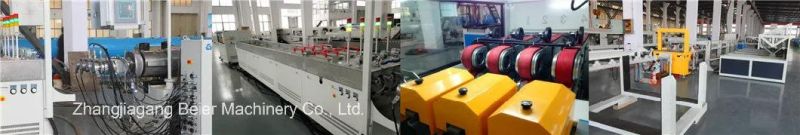

The whole line is composed of conical twin screw extruderψ65mm, 4 cavity mould, 4 cavity

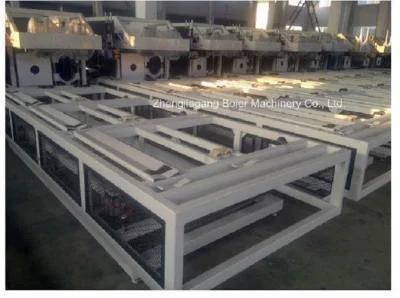

 cooling calibration tank, 4 station hauloff, 4 station cutter, and 4 station tipping table.

 Machine Show


1. The optimum spiral structure feeding throat highly improves the output of extruder
2. Accurate temperature control system ensures materials melting performance
3. Unique screw design achieves better plasticizing and high quality products

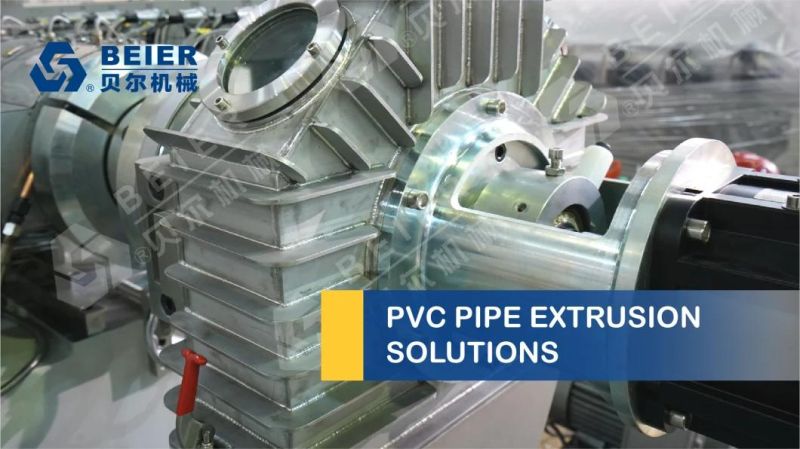

4. Precisely designed gearbox with a high torsion guarantees stable running
5. "H" shape frame to decrease vibrating of extruder
6. Advanced PLC operation system realizes synchronization and automation
7. Adopt automatic water temperature & level control and special independent filters on both vacuum and cooling tanks
8. Offer stable haul-off unit with 2-12 caterpillars
9. Provide saw & chip-free cutting options
10. Low energy consumption, excellent performance, and easy maintenance
