600m Full Hydraulic DTH Pnuematic Air Compressor Water Well Drilling Rig for Sale

=== Base Info ===

=== Description ===

Basic Info.

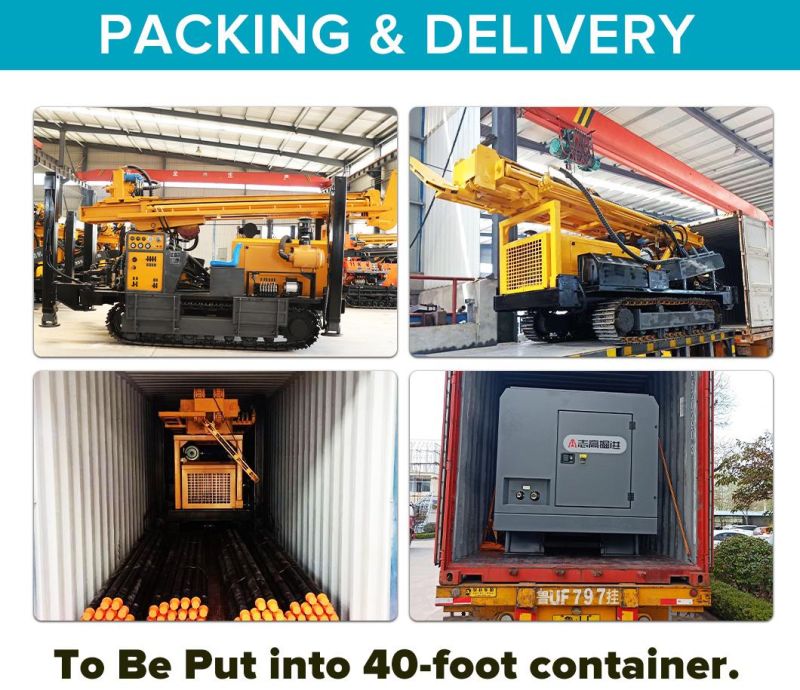

Model NO. JK-DR600 Drilling Way Rotary Type Crawler Usage Water Well Voltage 24V Weight 12t Warranty 1 Year Power Type Diesel Product Name Water Well Drilling Rig Power 132kw Transport Package 40hc Specification 6000*2200*2850mm Trademark SDJK Origin Shandong HS Code 8430412100 Production Capacity 100sets/Month

Product Description

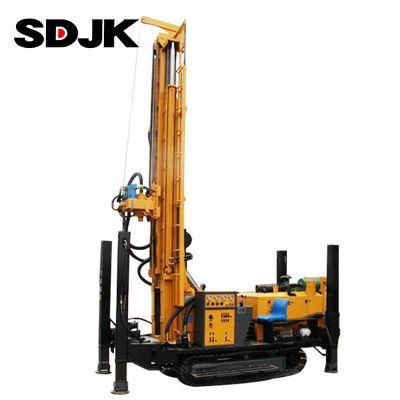

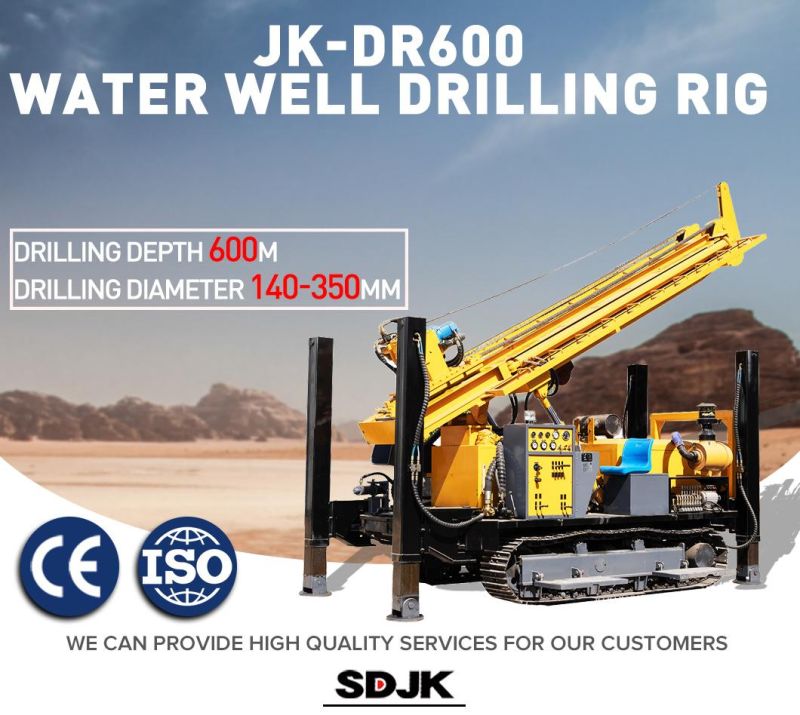

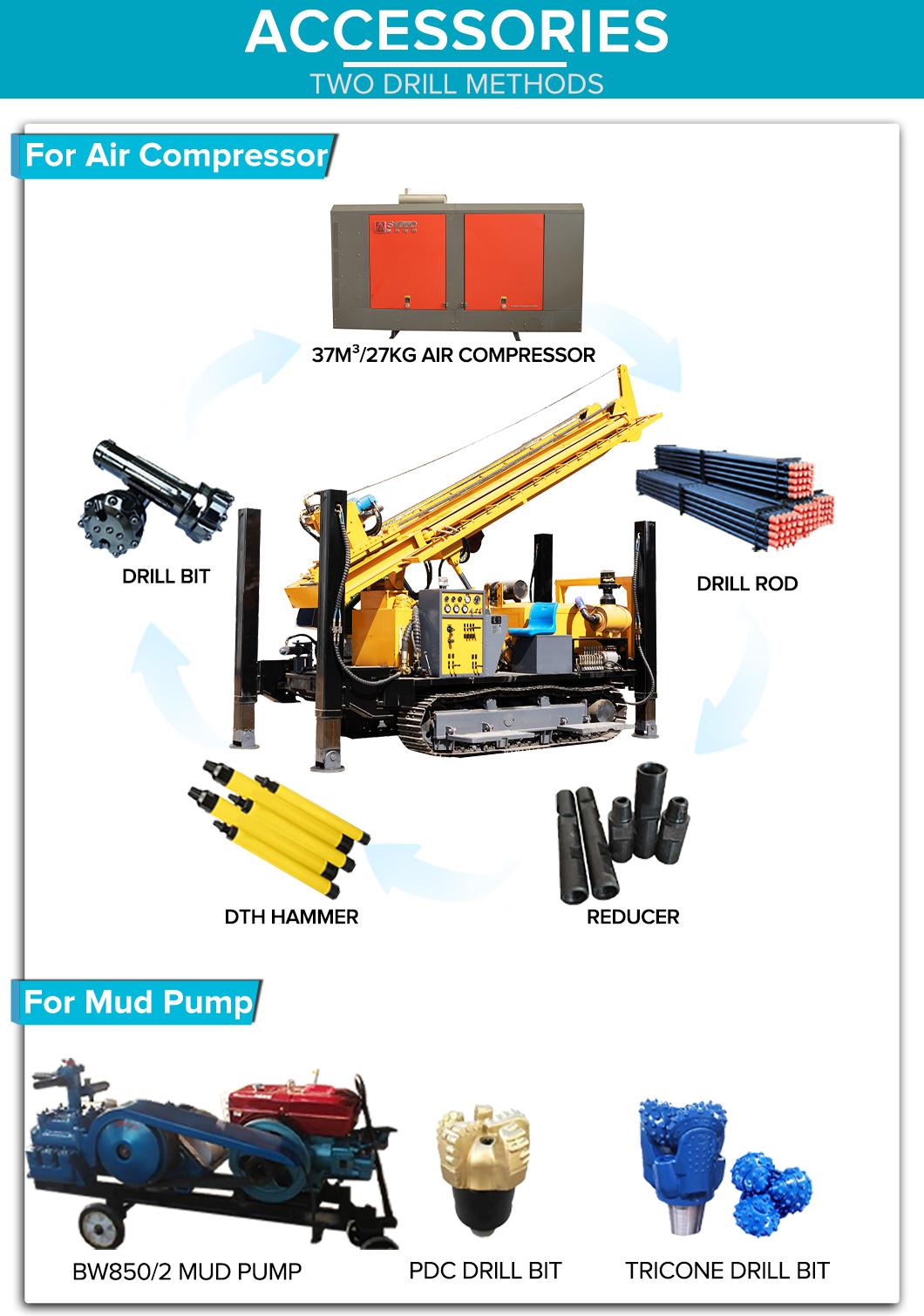

The JK-DR600 DTH drilling rig with AC(Air Compressor) method is capable of drilling upto 219mm diameter holes for pore-forming purposes to a depth of 600 meters.JK-DR series water well drilling rig uses full hydraulic control, and the Top drive to drive the rotation of drilling tools with very high drilling efficiency.There are 180, 200, 300, 350, 400, 500, 600, 800 and other series of water well drilling rigs.

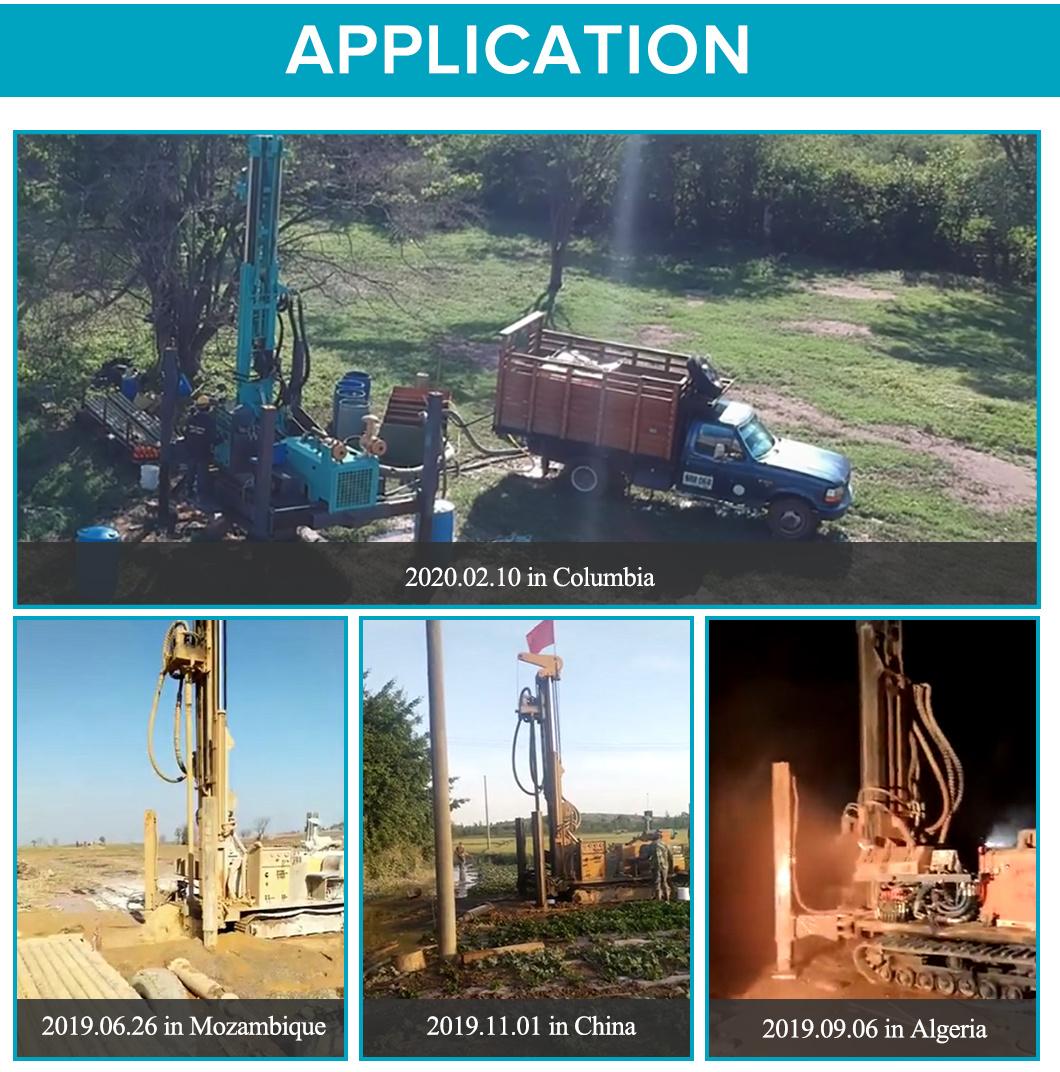

This series of water well drilling machine has the characteristics of standardized configuration, compact and reasonable structure, fast drilling speed, economical and durable, low failure rate, etc. It has been recognized by the market once it is launched, and has been widely used in mining engineering construction, civil drilling, geothermal drilling and other fields.

Model & Name	JK-DR600	Travelling speed	2.5km/h
Weight	12Ton	Gradeability	30%
Dimensions(mm)	6200*2200*2950mm	Rated pressure	1.7-3.5 MPa
Power Oil	Diesel	Air consumption	17-42 m³/min
Engine Model	CUMMINS	Drill rod diameter	Φ102 / Φ108/ Φ114 mm
Rated Power	132 kW	Drill rod length	1.5m, 2.0m, 3.0m, 6.0m
Travelling System	Steel Crawler	Elevating capacity	28 Ton
Drilling depth	600m	Winch Elevating capacity	3 Ton

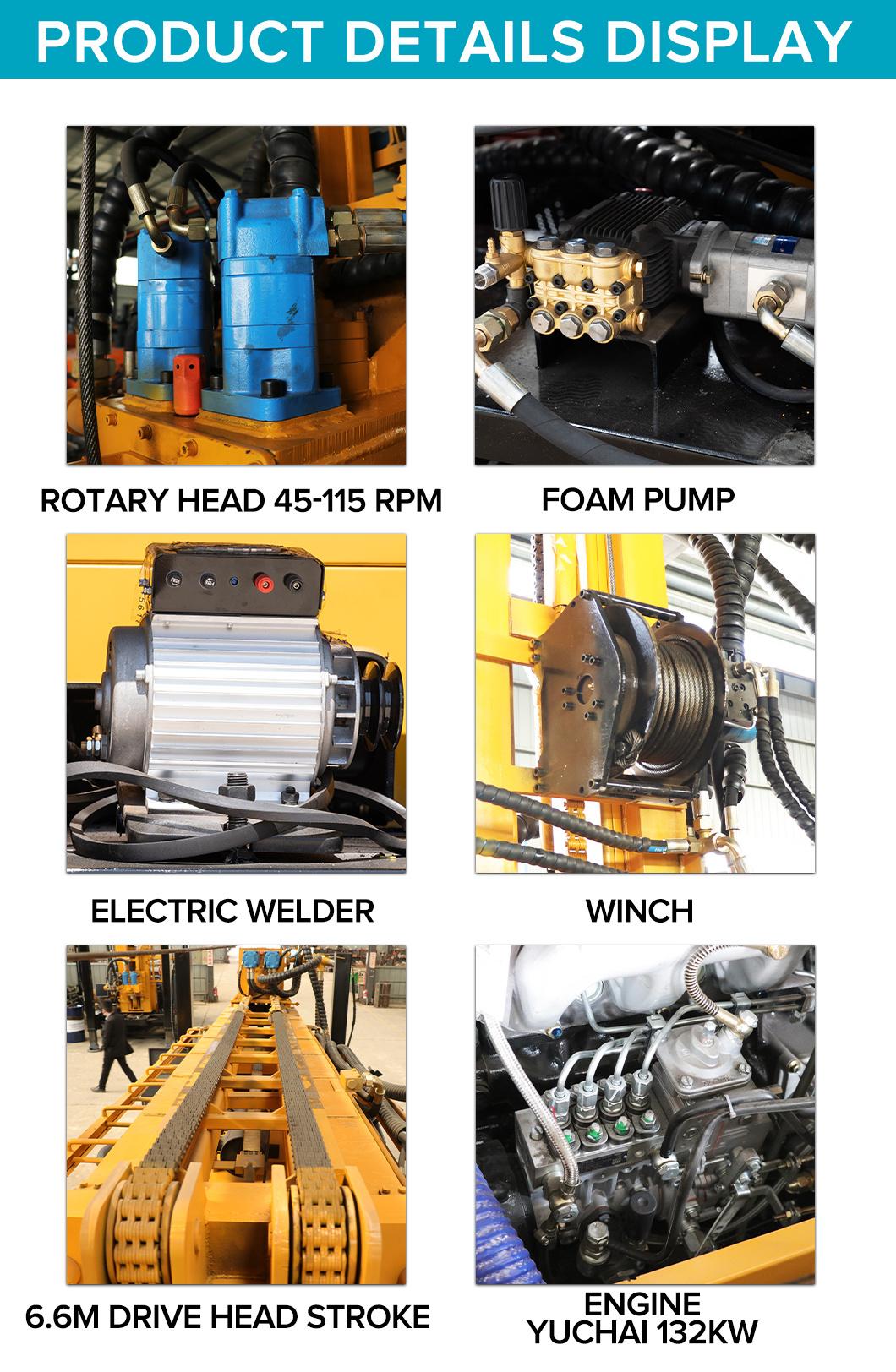

Bore diameter	140-350mm	Swing speed	45-115rpm
Drive Head Stroke	6.6m	Swing torque	8500-11000 N.m
