Multi Layer Co-Extrusion LDPE Stretch Film Extruder Machine Plant

Wenzhou Handpack Machinery Co., Ltd. / 2022-07-04

Multi Layer Co-Extrusion LDPE Stretch Film Extruder Machine Plant

=== Base Info ===

=== Description ===
Model No.PYM-65/90/65*1850Screw Diameter65/90/65mmScrew L/D30:1Screw Speed50-150rpmLayer StructureABC/ACBCAFilm materialPEFilm Width1500mm/3*500mmFilm Thickness0.01-0.05mmElectric power supplyCustomized, Standard is 380V/50HZ/3PTotal Power130KWCapacity180-300Kg/hTotal weight13.5TDimension13.5M*3.5M*3.5MProduct Advantages

  • Easy operating, long life, energy saving
  • Stable and reasonable extrusion
  • High quality T-die for excellent film evenness and stability
  • Enhanced cooling system
    (adopts 720 mm diameter primary cooling roller and 370 mm diameter secondary cooling roller)
  • Advanced oscillation (swing) system
  • Highest winding speed (up to 200m/min) among similar stretch film machines
  • High production capacity: up to 350 kgs/h at film thickness 23 microns and 150 m/min
  • Optional full automatic thickness gauge
  • Excellent stretch film rolls quality for both hand use rolls and stretch use rolls

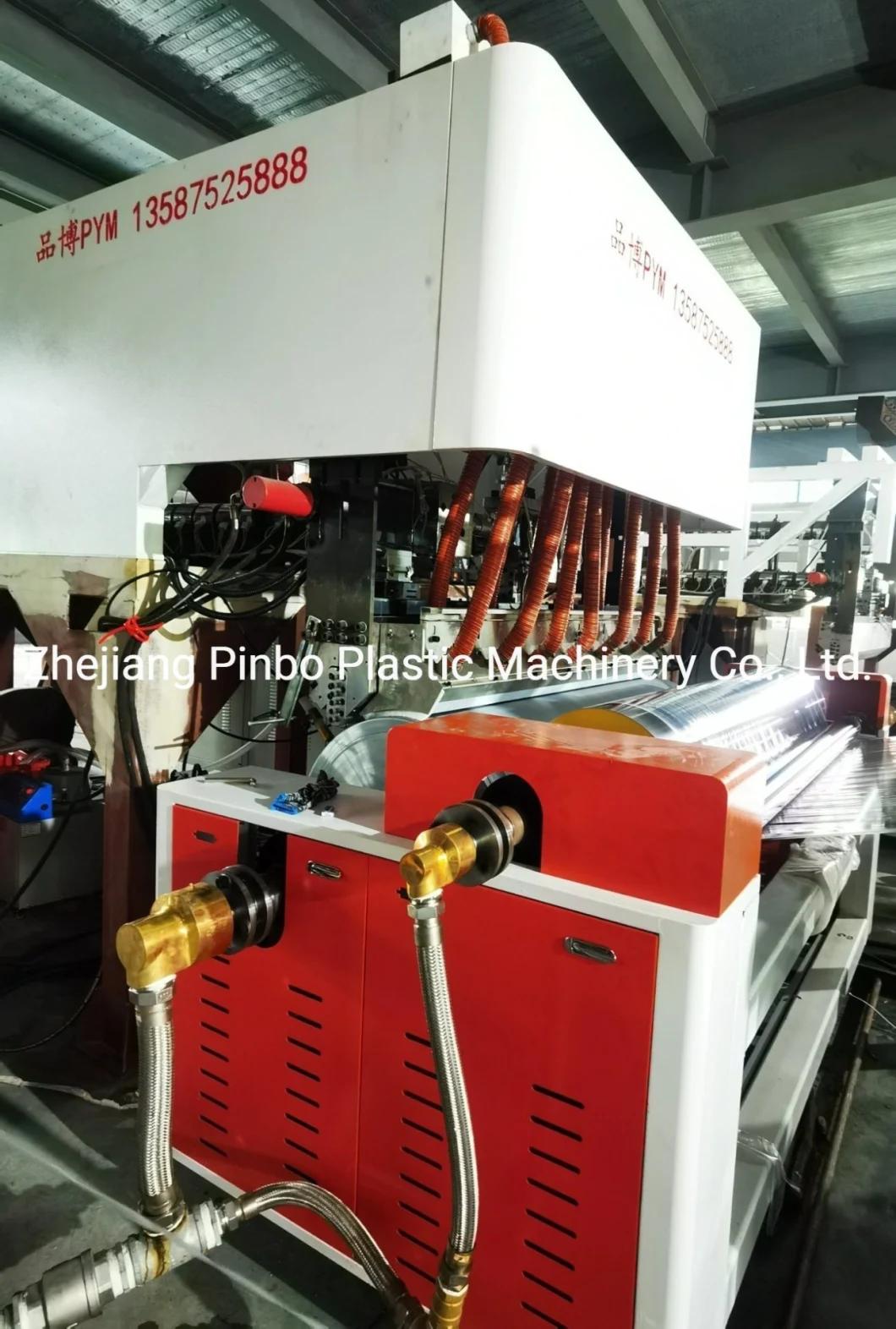

Machine details:
Multi Layer Co-Extrusion LDPE Stretch Film Extruder Machine Plant
Multi Layer Co-Extrusion LDPE Stretch Film Extruder Machine Plant
Multi Layer Co-Extrusion LDPE Stretch Film Extruder Machine Plant
Multi Layer Co-Extrusion LDPE Stretch Film Extruder Machine Plant
Multi Layer Co-Extrusion LDPE Stretch Film Extruder Machine Plant
Multi Layer Co-Extrusion LDPE Stretch Film Extruder Machine Plant
Multi Layer Co-Extrusion LDPE Stretch Film Extruder Machine PlantMulti Layer Co-Extrusion LDPE Stretch Film Extruder Machine PlantMulti Layer Co-Extrusion LDPE Stretch Film Extruder Machine PlantMulti Layer Co-Extrusion LDPE Stretch Film Extruder Machine PlantMulti Layer Co-Extrusion LDPE Stretch Film Extruder Machine Plant
