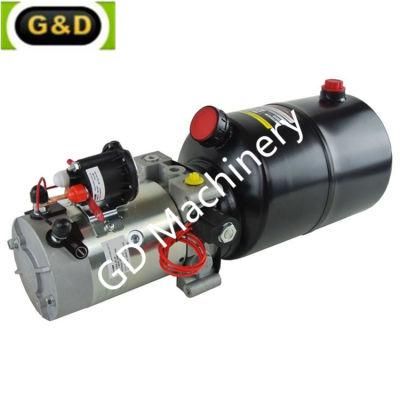

Agricultural Application Tipper Pack Hydraulic Power Pack

• Certification：ISO9001
• Pressure：Medium Pressure
• Work Temperature：Normal Temperature
• Voltage：12V
• Installation：Horizontal
• Material：Carbon Steel

=== Base Info ===

• Application：Agricultural Application
• Warranty：1 Year
• Transport Package：Plywood Case
• Specification：340 mm *210 mm*260 mm
• Origin：China
• Production Capacity：20000,Year

=== Description ===

Basic Info.

Application Agricultural Application Warranty 1 Year Transport Package Plywood Case Specification 340 mm *210 mm*260 mm Origin China Production Capacity 20000/Year

Product Description

Specification

• 1.6KW, 12vdc and 2.2KW, 24vdc electric motor complete with relay and plastic motor cover.
• A range of reservoirs complete with suction strainer and filler breather.
• Horizontal or vertical mounting options.
• Pressures of up to 200 bar and flows from 3 to 15 l/min.
• Two main relief valve options 40-100 bar and 100-200 bar.
• 12vdc and 24vdc lowering valve and P line check.
• Can be supplied suitable for all single and double acting applications.
• Push button pendants, isolators etc can be supplied as required.

• While this pack has been designed with tippers in mind, derivatives can be used for other applications including:

  • Tail lifts
  • Passenger lifts
  • Scissor lifts
  • Forklifts
  • Access lifts
  • Agricultural applications
  • Material handling equipment

  We also design custom power packs to suit specific customer requirements.




Our Advantage:

1.Stable quality in harsh environment

2.Small order

3.Competetive price

4.Customization according to oil circuit




NOTES:

1. Hydraulic power units can only be worked intermittently

2.Clean all the hydraulic parts concerned before mounting the power unit

3. Viscosity of the oil shoud be 15~68 cst, and the oil should be clean and free of impurities, N46 hydraulic oil is recommended

4. Check the oil level in the tank after the initial running of the power unit.

5. Oil changing is required after the initial 100 operation hours, afterwards once every 3000 hours.
