Cnrm High Efficiency 3/4 Strand Rope Making Machine in Stock for 3mm-10mm Twisted Rope

=== Base Info ===

=== Description ===

Basic Info.

Exhaust Don′t Exhaust Automation Automatic Computerized Computerized Rope Size 3-32mm Rope Strands 3 Strand and 4 Strand Rope Material PP PE Pet Cotton Jute Polyester Jute etc Output High Efficiency and Output Quality Good Quality Warranty 1 Year Technical Support Yes Loading Time 45days After Deposit Received Certification ISO Ce Power 7.5kw-30kw Usage Packing Agruculture Function Twisting Colour Customers′ Requirement Motor Quantity 1/2/3 Motors Brand Cnrm Transport Package Container Specification 5.6*2*2m Trademark CNRM Origin China HS Code 84794000 Production Capacity High Output

Product Description

3 or 4 Strands Twisted Plastic PP/PE/Pet/Nylon/Cotton/Jute Multifilament /Monofilament/Raffia Yarn  Rope/Baler Twine Making Machine


1.Product Description

The rope is divided into monofilament rope, split film rope, multifilament rope, nature rope, waste yarn rope.

Suitable rope

(1). Rope diameter: from 2mm up to 32mm.
(2). Suitable material: HDPE, PP, PET, nylon, polyester, cotton, sisal, jute, coconut, banana, recycled tape,nonwoven tape, etc. monofilament, multifilament, natural fiber, the machine has wide application scope.
(3). Rope structure: 3 strands, 4 strands, 4 strands with the core.
Complete production line for pp pe monofilament rope

(1). PP PE monofilament yarn extruder machine for matching High Speed nylon rope making machine for plastic monofilament/pp danline/Plastic split blown film/sisal jute/cotton cloth rope.

(2). Ring twister machine for first twisting of rope.

(3). Rope making machine for making 3 strands or 4 strand rope.

(4). Rope rewinder machine for reel, coil, hank packaging.

2.Plastic Rope Making Machine Parameters



Item	HDTM-M33	HDTM-M44	HDTM-M55	HDTM-M66	HDTM-M77
Rope Range	3-10mm	6-14mm	12-22mm	18-26mm	22-32mm
Lay Range	15-38mm	20-50mm	32-78mm	40-105	45-130
Power	7.5kw	7.5kw/11kw	18.5kw	22kw	30kw
Take-up capacity	Φ130*Φ500*Φ320	Φ130*Φ600*Φ400	Φ130*Φ600*Φ400	Φ140*Φ700*Φ450	Φ200*Φ550*Φ650
Size of pay-off bobbin	175*300mm(8)	175*300mm(8)	175*300mm(8)	175*300mm(8)	175*300mm(8)
Qty of 8" bobbin	8*3 or 8*4	24*3 or 24*4	32*3 or 32*4	46*3 or 46*4	64*3 or 64*4
Machine weigth	2500kg	3500kg	5000kg	6000kg	7000kg



Plastic Rope Making Machine Key Features

-Power transmission by timing belts.
-Auto stop after yarn breakage to control wastage.
-Digital length counter meter.
-Door Sensor.
-A.C. frequency drive.
-Direct coiling head. 3.Detailed Images

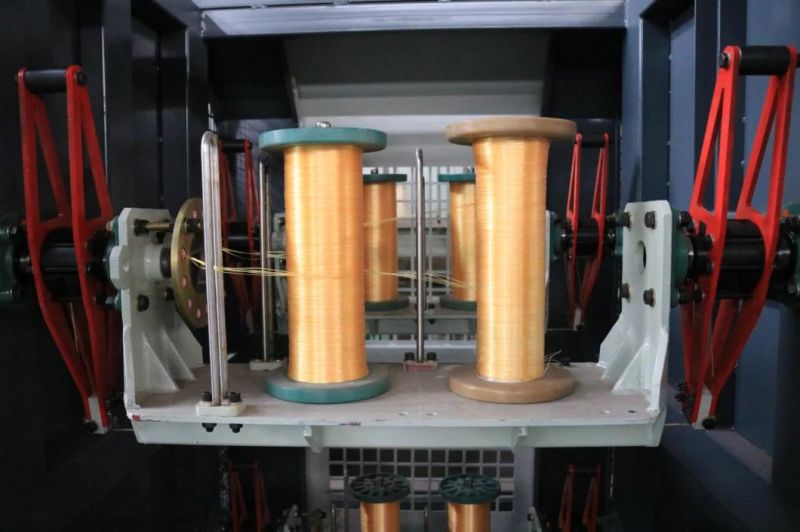

Plastic Rope Making Machine Overall Pictures

please tell your final rope diameter range,we are so pleased to recommend right twist rope machine models to you.
