Jk-Dr200X Water Well Drill Rig with Crawler Type Drilling Rig

=== Base Info ===

=== Description ===
 Model & NameJK-DR200XWeight  5000 kgDimensions(mm)3950*1700*2300mmPower OilDieselEngine ModelQUANCHAIRated Power65 kWTravelling SystemRubber CrawlerDrilling depth  200mBore diameter 140-350mmDrive Head Stroke3.4mTravelling speed2.5km/hGradeability30%Rated pressure1.7-3.0 MPaAir consumption17-30 m³/minDrill rod diameter Φ76,Φ89mmDrill rod length 1.5m, 2.0m, 3.0mElevating capacity 13TonSwing speed 45-65rpmSwing torque   3500-4700 N.m

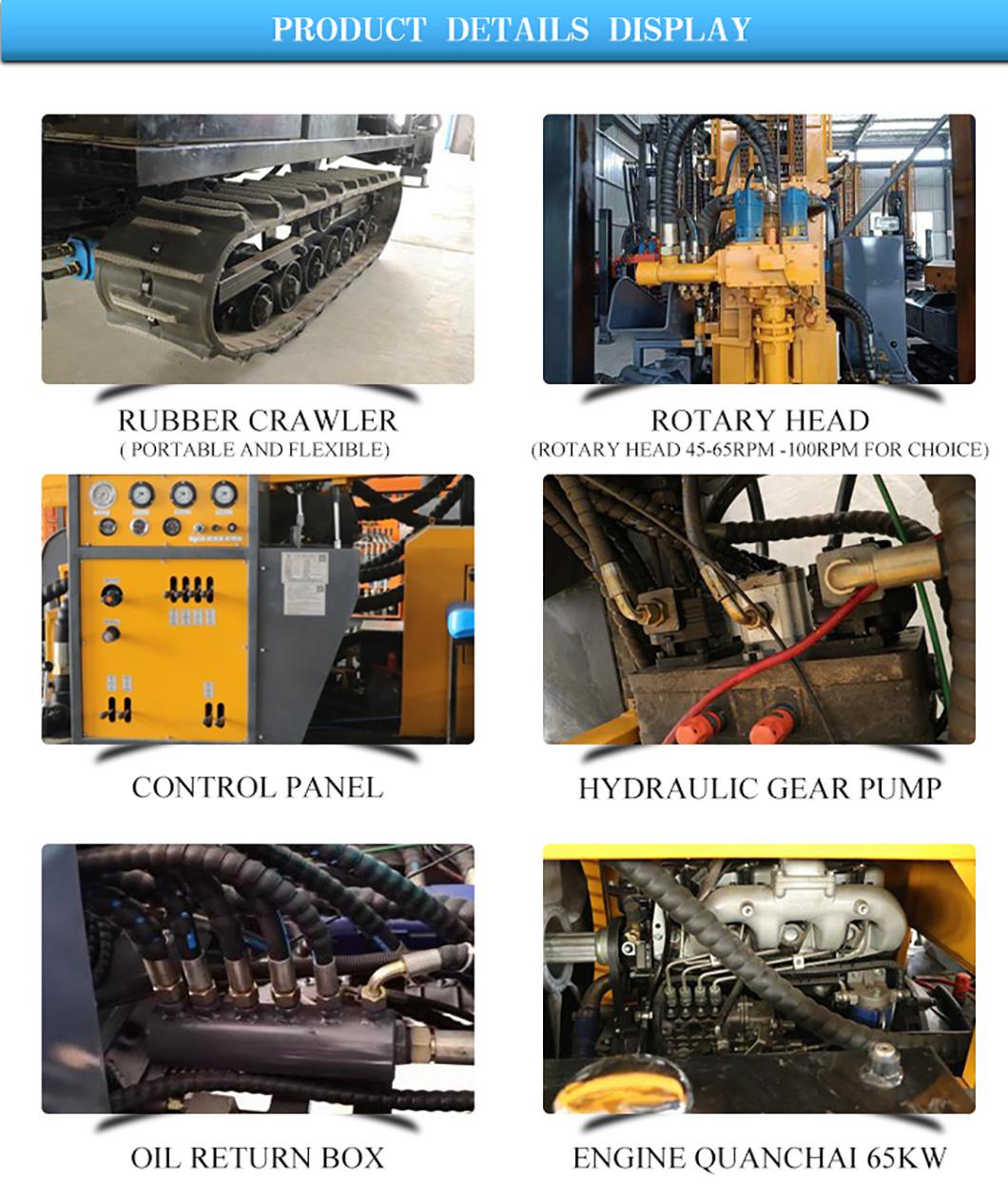

1. The engine uses QUANCHAI 65KWturbocharged engine;
2. Walking travel: crawler mounted ,trailer mounted for choice.
3. Hydraulic oil pump:Parallel gearbox design separates the oil pump unit, the power supply is adequately distributed, the hydraulic system is uniquely designed, and the maintenance cost is small;
4.Power head device:gearbox integrated casting, dual motor power, large torque, durable, low maintenance costs;
5.Drilling machine chassis:professional digging chassis, durable, heavy bearing, wide chain plate, less damage to hard roads;
6.Lifting force:design composite tower, 3.4m long stroke, double cylinder lift capacity 13 ton
7. Each rig is equipped with a relief valve to raise the boom to protect the cylinder and ensure work safety;
8. Each hydraulic oil pipe is covered with a protective jacket to make the oil pipe last longer.
