Full Hydraulic Crawler Drilling Rigs Zdy4000lp (S)

=== Base Info ===

=== Description ===

Basic Info.

Model NO. ZDY4000LP(S) Drill Hole Depth >300m Bit Type Drag Bit Drilling Way Compound Rated Torque 4000~1050 N·m Rotary Speed 60~230 R/Min Borehole Depth 350 M Rod Diameter 73/89 mm DIP of The Main Axis -90°~+90° Azimuth Adjustment -90°~+90° Horizontal Drill Height 1.55~2.19 M Max Feed/Pull Force 123/123 Kn Feed/Pull Stroke 780 mm Motor Power 55 Kw Max Travelling Speed 1.8 Km/H Max Gradeability 15° Weight 5560 Kg Transport Package Wooden Box Specification 4.48*0.95*2.01 Trademark MK Origin Xi′an

Product Description

[Application scope]

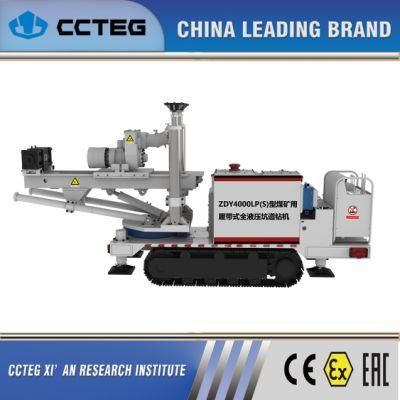

The ZDY4000LP(S) drill rig can meet the requirement of various types of drilling operation such as gas drainage, water injection, geological explosion, advanced pressure release, water detection/drainage, etc. It is suitable for rotary drilling and impact rotary drilling. The width of the whole machine is only 0.95m, which allows the drill rigs can be adapted to multi-purpose drilling construction in narrow roadways.The drilling machine adopts the narrow-body universal platform, with the adjustable range of main shaft inclination angle ±90° and the adjustable range of azimuth angle ±90°. The core components and hydraulic parts of the drilling machine are common with the corresponding split drilling machine, which is convenient to use and maintain and has high reliability. The width of the drilling rig is only 0.95m, which has strong adaptability, good passability and convenient replacement in underground roadways. The drilling rig adopts up and down stabilization, with two upper uprights and four lower stabilizing legs, so that the stability of the whole machine is good. The angle adjusting mechanism adopts the joint support form of inclined support cylinder and inclined support column, which has little vibration and good stability in the process of drilling. The main hydraulic parts are all domestic famous brands, which makes the series of drilling rigs have the advantages of stable performance and low price.


[Technical specification]
TypeZDY4000LP(S)
Rated torque/N·m4000~1050
Rotary speed/(r/min)60~230
Borehole depth/m350
Rod diameter/mm73/89
Dip of the main axis/°-90~+90
Azimuth adjustment/°-90~+90
Horizontal drill height/m1.55~2.19
Max feed/pull force/kN123/123
Feed/pull stroke/mm780
Motor power/kW55
Max travelling speed/(km/h)1.8
Max gradeability/°15
Weight/kg5560
Dimension(L×W×H)/m4.48×0.95×2.01
