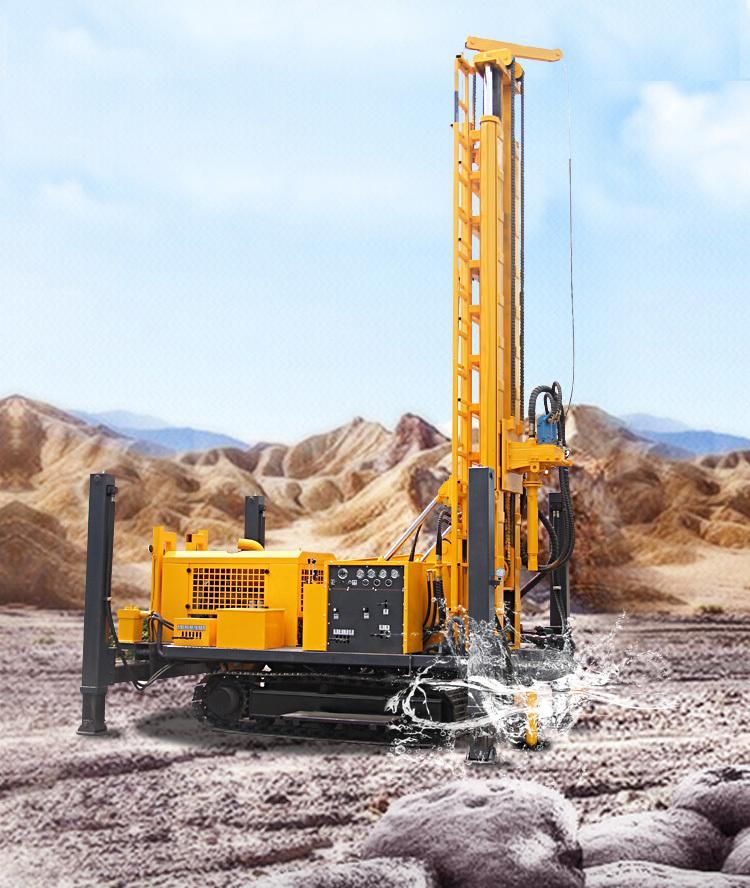

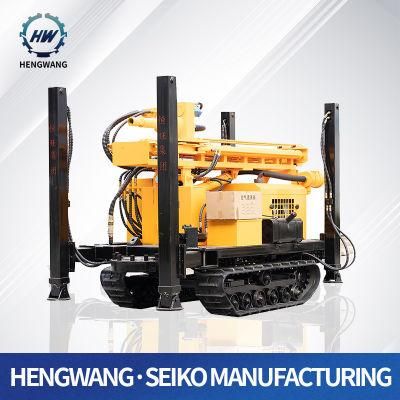

Crawler Pneumatic Rotary Water Well Drilling Rig Machine Prices
Kunshan Hexin Precise Machinery Co., Ltd. / 2022-06-23
=== Base Info ===
=== Description ===
Model | HWZ150L | HWZ180L | HWZ260L | HWZ300L | HWZ400L | HWZ500L |
Overall weight (T) | 3.5 | 4.2 | 6.4 | 8 | 8.7 | 9.5 |
Dimension (mm ) | 3400*1500*2400 | 3800*1700*2350 | 4100*1900*2600 | 5500*1950*2780 | 5300*2050*2700 | 5350*2100*2700 |
Drilling diameter(mm ) | 130-219 | 130-294 | 140-300 | 140-325 | 130-400 | 140-400 |
Drilling depth(m) | 150 | 180 | 260 | 300 | 400 | 500 |
One-time advance length of the drill(mm) | 3000 | 3000 | 3000 | 3000/6000 | 3000/6000 | 3000/6000 |
Traveling speed(km/h ) | 2.5 | 2.5 | 2.5 | 2.5 | 6 | 6 |
Climbing ability(max ) | 25 | 30 | 30 | 30 | 25 | 25 |
Minimum Ground Clearance(mm) | 250 | 250 | 250 | 230 | 300 | 350 |
Working Air Pressure(mpa ) | 1.45 - 2.5 | 1.7-2.5 | 1.7-3.0 | 1.7-3.3 | 1.7-3.5 | 1.7-3.5 |
Air consumption | 15 - 27 | 15-27 | 17-35 | 23 | 17-35 | 17-35 |
Main machine power(kw) | 42 /Yunnei | 60/ Yunnei | 85/Yuchai | 92/Yuchai | 100/6 cylinder | 114/6 cylinder |
Rotary Speed (rpm) | 38 - 80 | 48 - 70 | 40-70 | 55-115 | 45-75 | 45 - 75 |
Rotary torque(Nm ) | 4000-5000 | 4200-5600 | 7000-9000 | 8500-10000 | 9000-10000 | 9500-10000 |






More Advantages about our products Mud pump: can realize water and steam dual purpose
Welder: It can be welded when drilling the root canal
Hoist: easy to lift the drill pipe

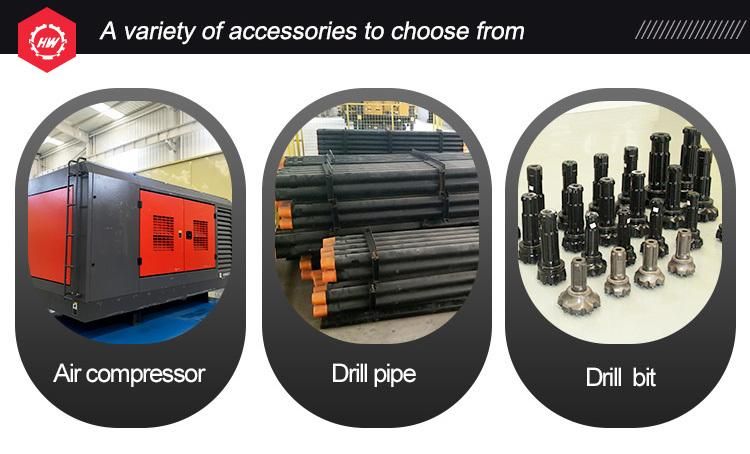

Certification: CE, ISO, SGS, TUV, BVThe parts need equipped on the pneumatic drill rig , Air compressor , Drill pipe , Drill bit

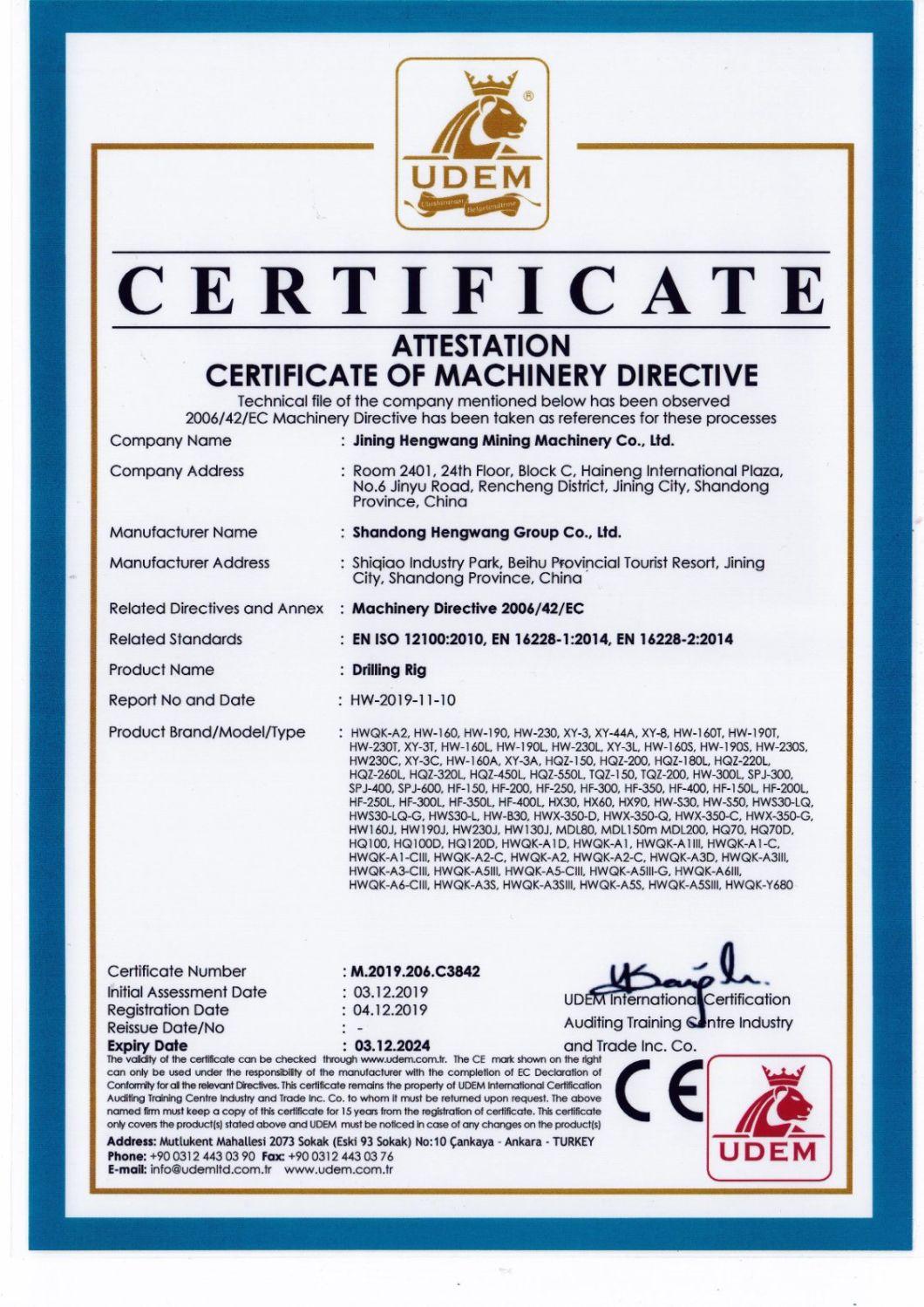

Certification
FAQ
Q:Are you manufacturer?
A: Yes, we are factory with more than 20 years of manufacturing experience.
Q:What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packagesbefore
you pay the balance.
Q:What is the warranty of our machine?
A:Our main machine enjoys a 1 year warranty, during this time all accessories broken can be changed for anew one.
And we provide videos for machine install and operation.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q:How do you make our business long-term and good relationship?
A:We keep good quality and competitive price to ensure our customers benefits;
Q:Do you have any certificates for your machine?
A: All of our products coming with the certificates of CE, IS09001.
