Plastic Pet Bottle Recycling Machine/Pet HDPE LDPE PP Recycling Granulator Machine

=== Base Info ===

=== Description ===
IndexParameterPET flake size8~12 mmMoisture< 1.5 %Viscose< 20 ppmPP/PE< 20 ppmMetal< 20 ppmOther color PET flake< 30 ppmLabel< 20 ppmPVC< 30 ppmTotal impurities< 100 ppmPHneutralBulk density0.3g/cm³
2. Estimated Plant Paramter:Capacity(kg/h)Installation Power(kw)Required Area(m²)Manpower5002206008150043080012300065010001860001000140030

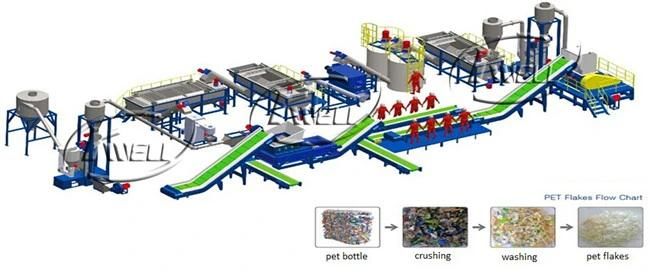

Machine Process Flow Introduction:
Bottle bales→Bale Opening→Trommel Filtering→Label Removing→Bottle Pre-washing→Bottle Optional sorting→Manual Sorting→Wet Crushing→Floating Washing→Drying→Hot Flotation Washer→Drying→Continuous Friction→Continuous Floating Washing→Drying→Fluid-bed drying→Blending→Label&Dust remover→Metal separation→Flake Optical Sorting→Packing
→Clean Flakes


Machine Main Parts' Function:
1. De-laber

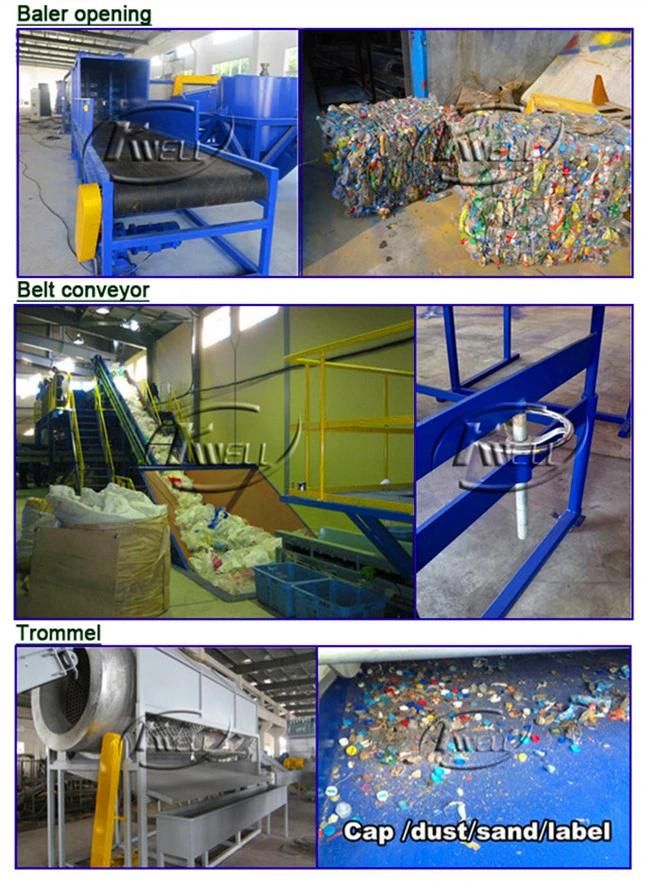

Bottle bale opening

2.Belt conveyor
Put the material on the moving belt, which will convey the bottle into label remover

3. Trommel
Removing rock, stone, dust, loosen caps and small metals, especially, the iron will be removed by high speed

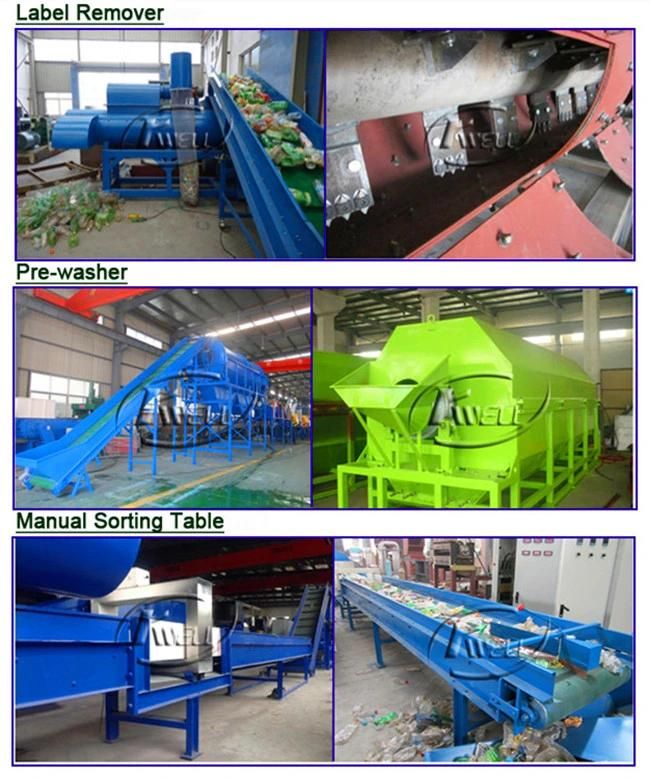

4.Bottle label separator
Removing labels from bottles

5.Manual Select working table
IF the label still in the bottle, worker can remove the label by hand

6.Belt conveyor
Put the material on the moving belt, which will convey the bottle into crusher

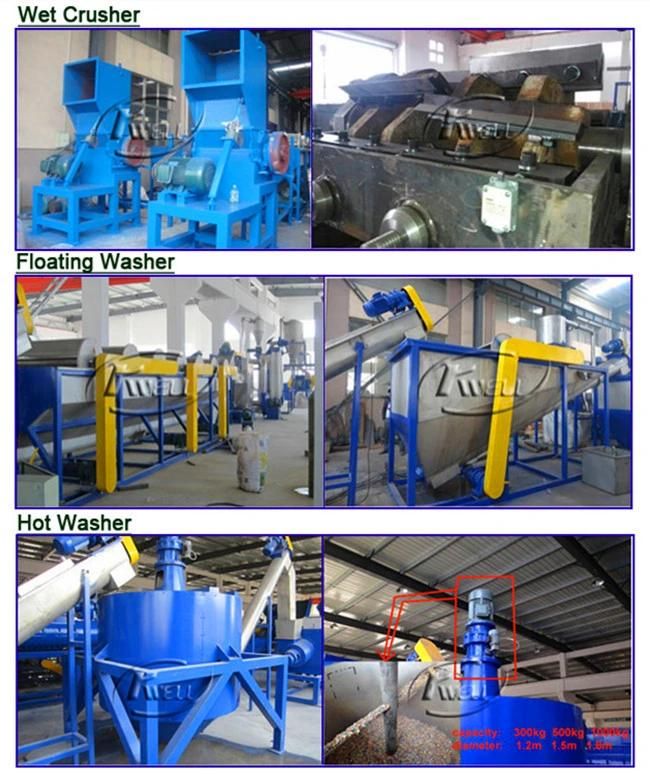

7.Crusher
Crush the material.

8.Screw loader
Put the flakes into the Hot washer to clean.

9.Floating washer
Cleaning flakes to remove chemicals and separating out rest labels and caps

10.Hot washer
Connected with steam boiler. Steam is supplied into washing tank to heat water and flakes. Hot water makes waste; label and glue loosen from bottles.

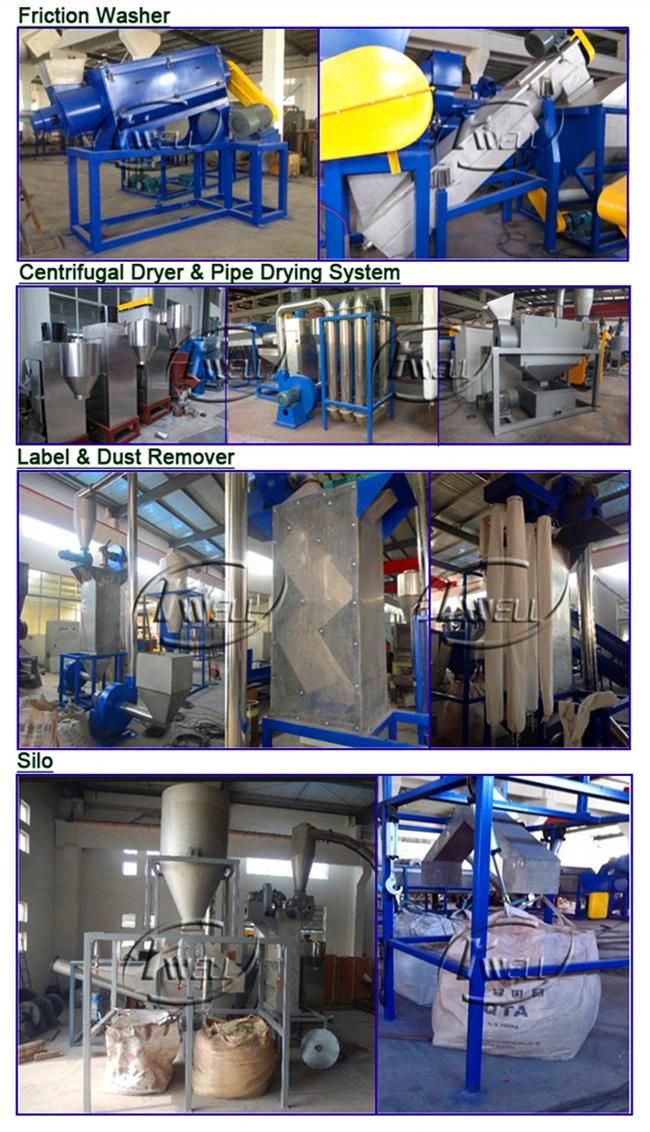

11.Friction washer
After crushing material from enters the mouth, through the high speed on the axis of the blade flap and spray water to the common function of good cleaning effect.

12.Centrifugal dryer
Rejection the water from the flakes, moisture content is less than 2%

13.Pipe drying system
Hot air drying

14.PVC (label) separator
Used for the PET bottles, round and pressed bottles,effective more than 98%,save energy and labor,without water

15.Storage bunker
Storage materials

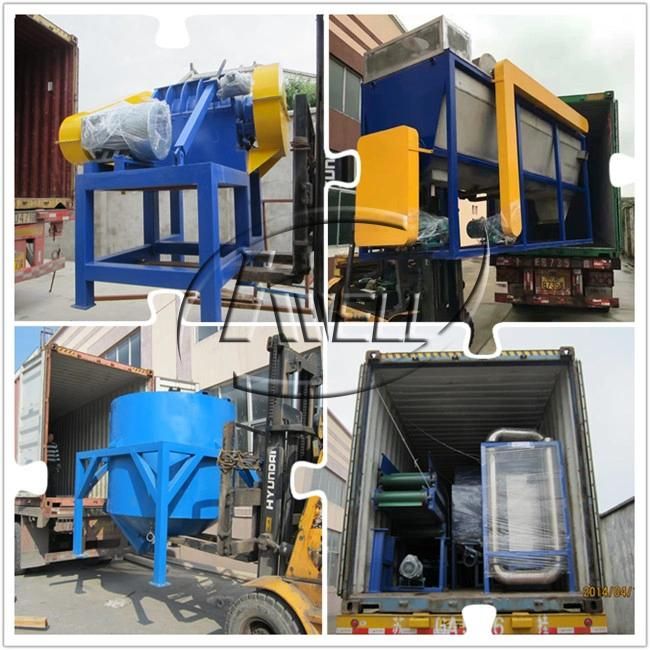

Machine packing details:


About our service:
PET Bottle washing line Before-sale

1. Introduce products and applications detain
2. Recommend suitable solution
3. Provide with reference information
4. Offer lab for test

1. Provide with layout and engineering conditions
2. Inform the project processing status
3. Offer other documents
