- Manufacturing Process:Sintered
- Application:Stone
- Main Diameter Size:250-3500mm
- Core Thickness:2.2-9.5mm
- Segment Height:13,15,20,25,30mm
- Cutting Material:Granite
=== Base Info ===
- Model NO.:JDKKL-101
- OEM&ODM:Yes
- Customized:Customized
- Manufacturing Arts:Sinter
- Brand:Jdk
- Delivery Time:3-5days
- Export Market:More Than 70 Countries
- Transport Package:Carton
- Specification:SGS, CE
- Trademark:JDK
- Origin:Quanzhou, China
- HS Code:82079010
- Production Capacity:10000PCS,Day
=== Description ===
"<<" "K" "M" Shape Segment (Product Code : JDK- << / JDK-K / JDK-M ) |
Features: | | | | | |
1.The unique "<<" "K" "M" design of segment makes fast diamond exposed and high cutting efficiency |
2.The design of segment allows ideal debris removal and bettering cooling. |
3.It works in low nosie,small cutter slot which ensure maxium use of stone and uniform thickness |
Product Name | Specification | Core Thickness | Segment Dimension | Segment Number | Application |
JDK Block Cutting Segment | Φ900 | 5.0 | 24x7.0/6.2x 15(20) | 64 | Granite |
Φ1000 | 5.0 | 24x7.0/6.2x 15(20) | 70 |
Φ1200 | 5.5 | 24x7.4/6.6x 15(20) | 80 |
Φ1400 | 6.0 | 24x8.0/7.2x 15(20) | 92 |
Φ1400 | 6.5 | 24x8.4/7.6x 15(20) | 92 |
Φ1600 | 7.2 | 24x9.2/8.4x 15(20) | 104/108 |
Φ1800 | 7.5 | 24x10.0/9.2x 15(20) | 120 |
Φ2000 | 8.0 | 24x10.6/9.8x 15(20) | 128/132 |
Φ2200 | 9.0 | 24x11.0/10.2x15(20) | 132/136 |
Φ2500 | 9.0 | 24x11.5/10.5x15(20) | 140 |
Φ2700 | 9.0 | 24x12.5/11.5x15(20) | 140 |
Φ3000 | 9.3 | 24x13/12x 20(25)mm | 160 |
Φ3500 | 9.5 | 24x13.5/13.0/12.2x30mm | 180 |
Other specification are available upon request. |
iameter (mm) | Bore | Segment length | Segment thickness | Segment height | Segment No. |
250 | 50/60 | 40 | 2.8/3.0 | 10/12/15/20 | 17 |
300 | 50/60 | 40 | 3.0/3.2 | 10/12/15/20 | 21 |
350 | 50/60 | 40/20 | 3.0/3.2 | 10/12/15/20 | 24 |
400 | 50/60 | 40/20 | 3.4/3.6 | 10/12/15/20 | 28 |
450 | 50/60 | 40/20 | 3.8/4.0 | 10/12/15/20 | 32 |
500 | 50/60 | 40/20 | 3.8/4.0 | 10/12/15/20 | 30/36 |
550 | 50/60 | 40/20 | 4.0/4.6 | 10/12/15/20 | 32/40 |
600 | 50/60 | 40/20 | 4.6/4.8 | 10/12/15/20 | 36/42 |
650 | 50/60 | 40/20 | 5.0/5.2 | 10/12/15/20 | 40/46 |
700 | 50/60 | 40/20 | 5.0/5.2 | 10/12/15/20 | 42/50 |
800 | 50/60 | 40/20 | 5.5 | 10/12/15/20 | 46/57 |
:
Factory == Own Exporting License == Quality Control == Competitive Price == Own Technology == OEM
Manufacturing process The diamond segment production process for segments primarily include material proportioning, mixing, cold pressing, mold assembling, hot pressing, mold disassembling, testing and packing.

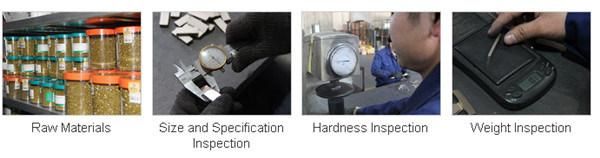

Quality controlOur professional inspectors test the hardness, weight, size, and other parameters for our products.
Application. JDK Diamond segment for granite cutting sell very well in United States, Ukraine,Russia,Spain,Portugal,Czech Republic Sweden,Greece, India,Malaysia, Philippines and other 70 countries countries.
How To Buy Our Diamond Segment1)Tell us which natural stone you are cutting or send us the photo of the natural stone if possible.
2)Tell us the size of the segment you are looking for.
3)Make the payment after the negotiation.
Payment TT, Western Union,
As for bulk order, L/C is also available
100% payment before delivery
JDK Team and ExhibitionJDK has exhibited the stone cutting tools at stone fair and exhibition in many countries,such as Italy,Poland, Spain,Russia,India,Pakistan,Iran,Egypt,Brazil United States,and Mexico,
Our advantage:
1. Manufacturer with more than 20 years experience
2. A great quantity of formula special for all kinds of different stone
3. Approved quality with factory competitive price
4. Long lifespan, good sharpness, stable performance and high cutting efficiency
5. Sandwich, groove type segment with shape straight, trapezia, boatshape, K, V, etc
6. Custom-design can be meet upon request, small trial order available any time, sample for testing can be delivery in very short time.
