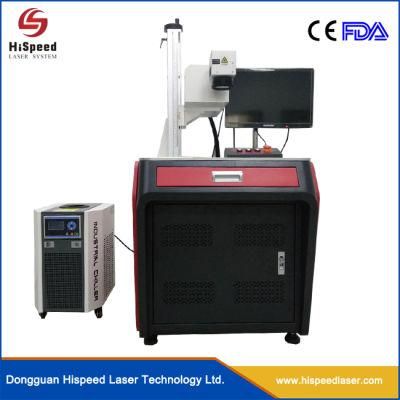

Hispeed UV Marking Machine Markable for Plastic Bottle Glass Cup PVC

• Laser Visibility：Visible
• Applicable Material：Metal
• Cooling System：Water Cooling
• Technical Class：Pulse Laser
• Laser Wavelength：Deep Ultraviolet
• Laser Classification：Solid Laser

=== Base Info ===

• Model NO.：UV-3,UV-5,UV-8
• Type：UV Laser Marking Machine
• Marking Method：Scanning Marking
• Product Name：UV Laser Marking Machine
• MOQ：1 Laser
• Warranty：1 Years
• Factory：Dongguan Hispeed Laser
• Brand：Hispeed Laser
• Application：Surface High and Low Surface Relief Marking
• Marking Range：50*50mm-300*300mm(Optional)
• Beam Quality：M2<1.2
• Line Speed：7000mm,S
• Line Width：0.01mm
• Power Requirement：220V 50Hz,110V 60Hz
• Transport Package：Wooden Case
• Specification：800*650*1430mm
• Trademark：Hispeed or Customized
• Origin：China
• HS Code：8456100090
• Production Capacity：50 Sets , Month

=== Description ===
Hispeed UV Marking Machine Markable for Plastic Bottle Glass Cup PVC



>>>>>Equipment Description<<<<<<

HiSpeed UV Laser Marking Machine 3W 5W 8W adopts three order intracavity frequency doubling (THG) technology. Compared to infrared laser, 355nm ultraviolet laser has extremely small laser facula, which reduces the mechanical deformation to a significant extent and diminishes the influence of heat-process to a very limited area.
Therefore it can be mainly applied for hyperfine marking and engraving, especially suitable for marking on packing materials ,medicines, Mobile phones ,keyboard , chargers etc.

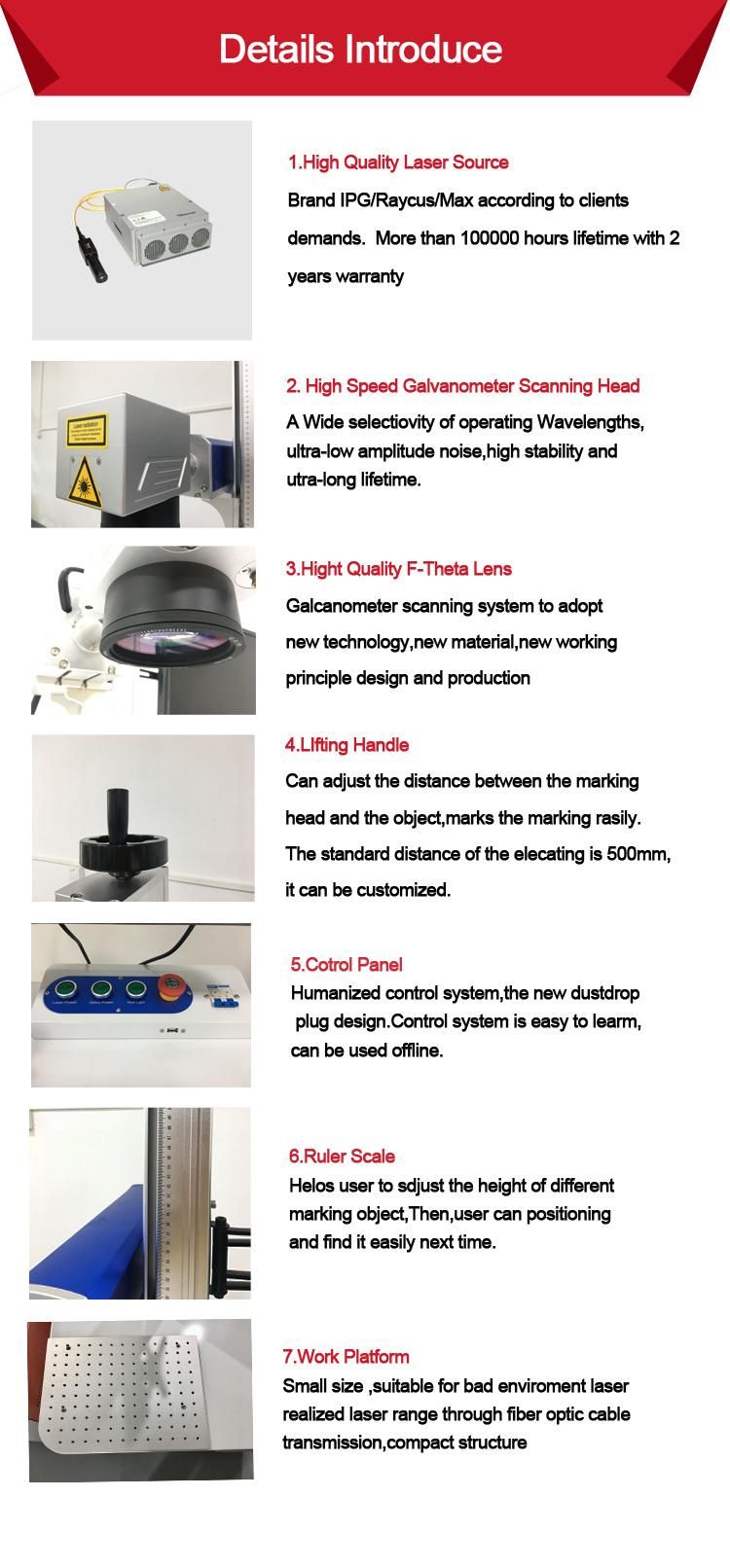

>>>>>>Machine Features<<<<<<

• Stable water-cooling,high precision temperature control
• Applied for hyperfine marking and engraving
• High quality permanent marking
• Environment friendly and safe Machinery
• Electro-optical conversion efficiency, long service life

>>>>>>Technical Parameters<<<<<<


Model	UV-3/UV-5/UV-8
Power	3W,5W,8W
Wavelength	355nm
Beam Quality	M2<1.3
Output Power	10%-100%
Output Frequency	15KHz-100KHz
Power Stability(8h)	<±2%rm
Pulse to pulse instabilit	<±3%rms
Spatial Mode	TEMoo(M2<1.3)
Beam Divergence	<2 mrad (full angle)
Beam Diameter	0.6±0.1mm
Beam Roundness	>90%
Pointing stability	<50urad
Polarization Direction	Horizontal
Polarization Ratio	100:1
Cooling	Air-cooling/Water-cooling(8W)

>>>>>Applications&Materials<<<<<<

1. Metal and Non-metal Materials
2. Glass Marking
3.  LCD Screen, Plasma Screen Marking
4. Thin Ceramic Marking
5. Silicon Chips Marking
6.  IC Grain Marking
7. Polymer Film Marking
8. Other High Value-added Products Marking

>>>>>>Applicable Materials<<<<<<



Q1: What's the warranty?
A1: Two years for laser source, one year for other parts, change or repair the broken parts during warranty, our
FAE will teach you how to remove the broken parts by video.
Warranty excluding man-made damage.
We are real warranty based series number on the machine, not false or empty promises, any too long time warrantyis unreliable, ourt warrannty is effective and enforceable.

Q2: What's the package?
A2: We have 3 layers package. For the outside, we adopt wood craft case.
In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer,
the machine is covered by thickening plastic Bag for waterproof.

Q3: How to install and run the machine?
A3: You will get details in user manual, you only need install the column with laser path and put on monitor of computer.
You will get a CD of orginal marking software and online video about basic operation.
You also will get a software operation manual and you can be a laser marking master after reading and practics.
You can send your questions to our online after-serive 24 hours.

>>>>>>Company Information<<<<<<

Hispeed laser company is a professional Laser Marking Machine Manufacturer , The company focuses on the development and innovation of a complete set of laser processing and application solutions for customers. The core products are "Fiber laser marking machine, UV laser marking machine and CO2 laser marking machine" as the core products. The company has formed three major products series and targeted solutions for different segments, different sizes and different applications for advertising, industrial manufacture and so on. It is a more influential equipment manufacturer in the laser application industry.

The growth of Hispeed laser company is the process of serving customers and growing up with customers. With gratitude, we do everything in our heart and meet every challenge with confidence.


>>>>>>>>Contact Us<<<<<<<<<

Hispeed Laser is a real manufacturer of fiber laser marking machine,contact us for further information if you are interested,thanks a lot.
