- Condition:New
- Customized:Customized
- Voltage:380V,220V,440V,415V
- Composition:Water Treatment Equipment
- Processing Material:Natural Ingredients
- Process:Homogenizing and Fining
=== Base Info ===
- Model NO.:GJB
- Name:Stainless Steel Ce Beverage High Pressure Yogurt J
- Material:Stainless Steel 304 ,316
- Capacity:500L,H--10000L,H
- Pressure:250bar to 700bar
- Working Life Time:More Than 10years
- Plunger:3PCS
- Packing:Plywood Box
- Homogenizer Electricity:220V,380V,415V,440V
- Certificated:CSA,Ce
- Delivery:Within 15 Days
- Motor:ABB ,Siemens ,China Brand
- Spare Parts:Available
- Ome:Yes
- After Sale Service:Yes
- Working Temperature:No Big Than 85c
- Transport Package:Standard Wooden Box
- Specification:Based on special order
- Trademark:KAIQUAN
- Origin:Shanghai, China
- HS Code:847982009
- Production Capacity:100 Units,Month
=== Description ===
Basic Info.
Model NO.
GJB
Name
Stainless Steel Ce Beverage High Pressure Yogurt J
Material
Stainless Steel 304 /316
Capacity
500L/H--10000L/H
Pressure
250bar to 700bar
Working Life Time
More Than 10years
Plunger
3PCS
Packing
Plywood Box
Homogenizer Electricity
220V,380V,415V,440V
Certificated
CSA,Ce
Delivery
Within 15 Days
Motor
ABB ,Siemens ,China Brand
Spare Parts
Available
Ome
Yes
After Sale Service
Yes
Working Temperature
No Big Than 85c
Transport Package
Standard Wooden Box
Specification
Based on special order
Trademark
KAIQUAN
Origin
Shanghai, China
HS Code
847982009
Production Capacity
100 Units/Month
Product Description

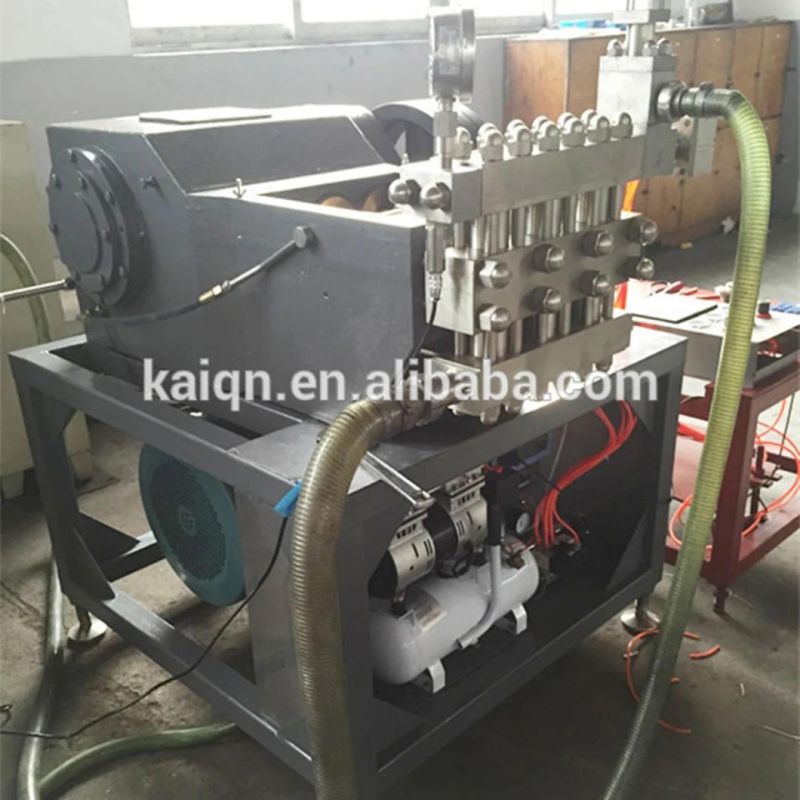

Stainless Steel CE Beverage High Pressure Yogurt Juice Milk Homogenizer
Model No. Technical parameter | KQ0.5-25 | KQ1-25 | KQ1.5-25 | KQ2-25 | KQ2.5-25 | GJB3000-25 KQ3-25 | KQ5-25 |
Rated pressure(MPa) | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
Rated flow ( Liters/H ) | 500 | 1000 | 1500 | 2000 | 2500 | 3000 | 5000 |
Medium temperature(C) | ≤85 | ≤85 | ≤85 | ≤85 | ≤85 | ≤85 | ≤85 |
Feeding pipe diameter(mm) | 25 | 25 | 25 | 25 | 25 | 32 | 40 |
Discharge pipe diameter(mm) | 15 | 15 | 20 | 20 | 20 | 20 | 25 |
Power of motor(Kw) | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 45 |
Volt and Electricity Flow | 220V,60HZ,3PH | 380V,50HZ | 380V,50HZ | 380V,50HZ | 220V,60HZ,3PH | 380V,50HZ | 380V,50HZ |
Outline dimension (m) Length * width * height | 1.16×0.9×1.24 | 1.16×0.9×1.24 | 1.16×0.9×1.24 | 1.4×1.1×1.42 | 1.4×1.1×1.42 | 1.4×1.1×1.42 | 2.2×1.45×1.1 |
Weight(Tons) | 0.4 | 0.5 | 1.25 | 1.25 | 1.25 | 1.25 | 1.7 |
High pressure homogenization is a standard industrial process for dairy products, to improve their stability and shelf life
Series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.
The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.
The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. )Food Sanitary High Pressure Milk Homogenizer
Stainless Steel CE Beverage High Pressure Yogurt Juice Milk Homogenizer .
