300m Borehole Water Well Drilling Machine for Sale

=== Base Info ===

=== Description ===
Drilling ParameterHole diameter :90-1200(mm) Hole depth :250(m)Run Of Rod :3,4(m)Drill rod diameter :φ73 φ89 φ95 φ133(mm)Drilling Technology :Normal and Reverse Circulation for both Mud and AirDown‐The‐Hole hammers: Middle‐High‐Pressure AirPerformance ParameterDrill Head Inside Diameter :φ35  φ60  φ81  φ120Drill Head lifting speed(m/s) :0.25        0.15  Drill Head lifting Force(kN) :55.40      94.55  Drill Head Spin Speed:A(Forward: 14-30-66,Reverse (r/min): 13-23-50)B(Forward: 48-84-184,Reverse (r/min): 37-65-142)Shape Parameters Dimensions:(L-W-H) Working conditions 4910×2020×6650(mm)Transport status: (L-W-H) 6700×2020×2750(mm)Supporting Form :Mechanical ScrewMast Up‐Down :Hydraulic TypeRig mass:3400(Kg)Chassis :Trailer with two wheelsPower Unit :Diesel EnginePower:40(kW)Mud pump :LBN-20 Normal and Reverse Circulation Pump GroupFlow(m³/h) :  80Main Hoist Lifting Force:18.54(kN)Auxiliary Hoist Lifting Force: 0-15(kN)Notes: Drill head spin speed can be selected, A is normal

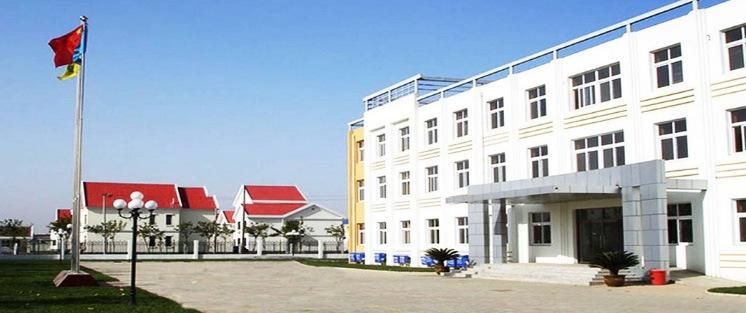

Company Profile

Glorytek Industry (Beijing)Co.,Ltd., located in Beijing,China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.

Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering,underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.

Exhibition


Certifications



Customer Photos



Contact Us

Jane Cheng
Sales Representative

Glorytek Industry ( Beijing ) Co., Ltd.
Address:No.B-2507, DongWeiCheng, GuanZhuang,Chao Yang District, Beijing, China.
Tel: +86-10-52864265/52864786
Fax: +86-10-52037270
Mobile:+86-13426420230
Website:  glorytek.en.made-in-china.com
