Mouthly Deal Stainless Steel Slitting Line Uncoiler Machine

• After-sales Service：Lifelong
• Warranty：12 Mouths
• Application：Home Appliance, Environmental Equipment, Agriculture Machinery, Aerospace Industry, Automotive Industry, Auto, Steel Industry
• Cooling System：Air Cooling
• Technical Class：Continuous Wave Laser
• Applicable Material：Metal

=== Base Info ===

• Model NO.：ZSL-6x1650
• Structure Type：Gantry Type
• Laser Classification：as The Client Required
• Laser Technology：as The Client Required
• Colour：Customized
• Thickness：6mm
• Width：1650mm
• Coil Weight：25 Tons
• Material：Cold Rolled Plate Hot Rolled Plate etc.
• Width Accuracy：0.1mm
• Cutting Burr：3%
• Slitting Quantity：30 Strips
• Line Speed：120m,Min
• Winding Split Level Error：1 mm
• Brand：Zeye
• Protection Class：IP40
• Transport Package：Seaworthy Packing
• Specification：40 m LX12 m W
• Trademark：ZeYe
• Origin：China
• HS Code：8460902000
• Production Capacity：70

=== Description ===

Basic Info.

Model NO. ZSL-6x1650 Structure Type Gantry Type Laser Classification as The Client Required Laser Technology as The Client Required Colour Customized Thickness 6mm Width 1650mm Coil Weight 25 Tons Material Cold Rolled Plate Hot Rolled Plate etc. Width Accuracy 0.1mm Cutting Burr 3% Slitting Quantity 30 Strips Line Speed 120m/Min Winding Split Level Error 1 mm Brand Zeye Protection Class IP40 Transport Package Seaworthy Packing Specification 40 m LX12 m W Trademark ZeYe Origin China HS Code 8460902000 Production Capacity 70

Product Description

Slitting line ZSL series
Slitting line is mainly used for metail coil shear recoiling process from decoiling,feeding, head shear, loop, slitting to recoiling.

Its function is to shear wide metal coil longitudinlly into narrow coils, many kinds of material are availble to shear, such as,
cold rolled plate, electrolytic galvanized plate, hot dip galvanized plate, color-coated plate, stainless steel plate, aluminum plate, cooper plate etc.
Main Units
1.Entry coil car,
2.Uncoiler,
3.Feeding device,
4. Hydraulic head shear,
5.Looper,
6.Slitter machine,
7.Scrap winder,
8.Looper,
9.Tension device,
10.Hydraulic shear,
11.Recoiler
12.Exit coil car.


Slitting Line Layout
 Main Technical Parameters


Model	ZSL-6	ZSL-8	ZSL-12	ZSL-16	ZSL-20/25
Material thickness	1.5-6.0mm	2.0-8.0 mm	3.0-12 mm	4.0-16.0 mm	6.0-20/25 mm
Material width	300-1600 mm	300-1800 mm	300-2000 mm	300-2000 mm	300-2200 mm
Slitting quantity	30	25	25	20	20
Width accuracy	±0.10 mm	±0.10 mm	±0.20 mm	±0.20 mm	±0.20 mm
Cutting burr	<3%	<3%	<3%	<3%	<3%
Winding split level floor	<1 mm	<1 mm	<1 mm	<1 mm	<1 mm
Line speed	120 m/min	100 m/min	80 m/min	60 m/min	60 m/min
Coil weight	20,30 t	20,30 t	20,35 t	20,35 t	20,35 t

Our advantages
1.Automatically detect the material parameter , one key to load coil, automatically centering adjustment.
2.Our parts of equipment are produced by Japan MAZAK, Spain CORREA cnc etc. the world class the most advanced processing equipments. Which can ensure to produce out high precision parts.

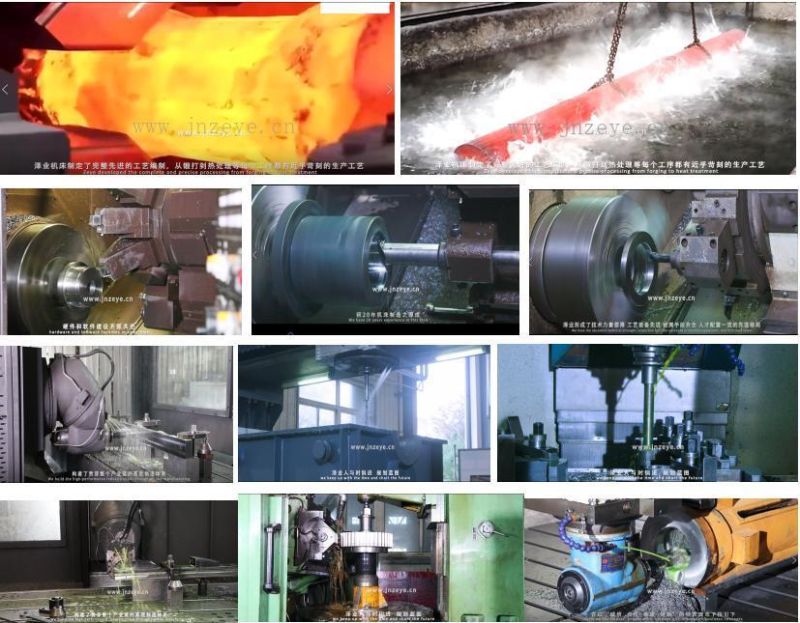

3. Every part has been finished it's own complete technology process, such as forge, rough machined,  heat treatment, cooling, burring, tempering,  finish turning , milling, drill, thread tapping, match pin, surface quenching,coat the anti-rust oil, fine grinding, test ,entry warehouse, which ensure every part meets it's the best performance.

4.Strictly inspection every section during production and assembly process, to ensure every part to be used is qualified.


Part of our customers
Due to enjoy the high reputation of our shearing products, we have supply our cutting lines to POSCO, BAOSTELL, MA STEEL,ANSTEEL, DELONG STEE, SHAN STEEL,SINOTRUCK, CRRC, CHERY, CHANGFENG MOTOR, HRA ,OBON,SIEMENS, MCC, BOSCH, SANDEN etc. famous companies.


Company introduction

Shandong Zetian CNC Machine Tool Co., Ltd (short for Zetian )and Jinan ZeYe Machine Tool Co., Ltd (short for ZeYe) are brother enterprises. Zetian  is for import and export business,  ZeYe  is one professional manufactory, was founded in 1997 in Jinan city, Shandong Province, China. ZeYe is mainly engaged in developing ,manufacturing and sales of Cut to Length Line, Slitting Line, Rotary Shear, Moving Shear, Slitting and Cut to Length Combined Line, Leveling Machine. Our products are widely used in plate processing, household appliance, automobiles, pipe mill, mechanical, hardware etc. industries. It could be application for processing cold and hot rolled steel, carbon steel, galvanized steel, silicon steel, tinplate, stainless steel, pre-painted steel, aluminum, copper and other metals.

We have one professional technical team and after sales service teams, we are ready to serve you at any time.




Welcome to visit our factory.



FAQ
Q: Could you produce the shear line as per our specific requirements?
A: Yes, we are a professional manufacturer specialized in automatic shearing line
for 23 years, we have a strong design & technical team,  we can design and manufacture as your requirements.

Q: How to get an accurate quotation ?
A: Please provide us the detailed requirements, such as coil weight, material, width, processing precision etc.

Q: What's the MOQ, warranty... ...
A: MOQ: 1 set.
Warranty: 12 months after the equipment run normally .

For more information, please contact with us.
