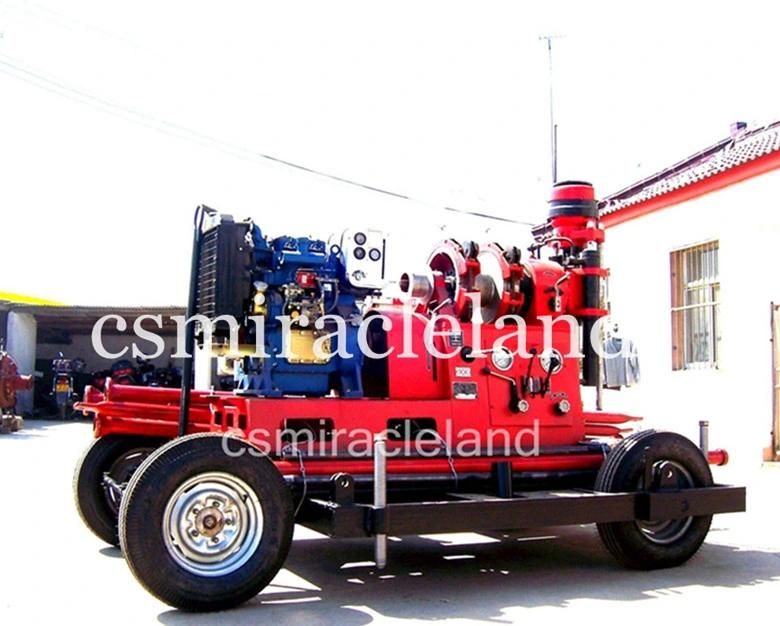

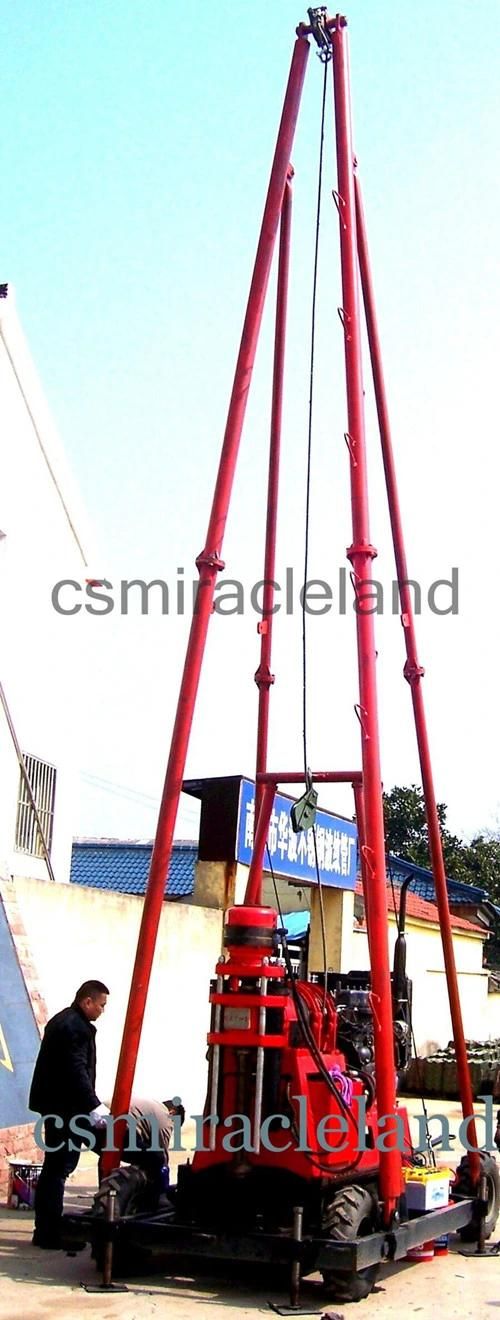

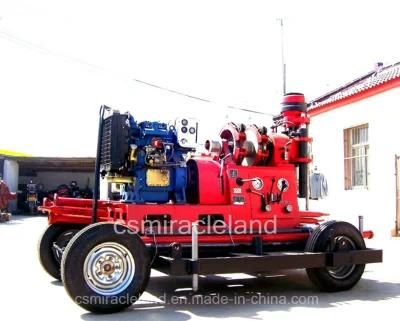

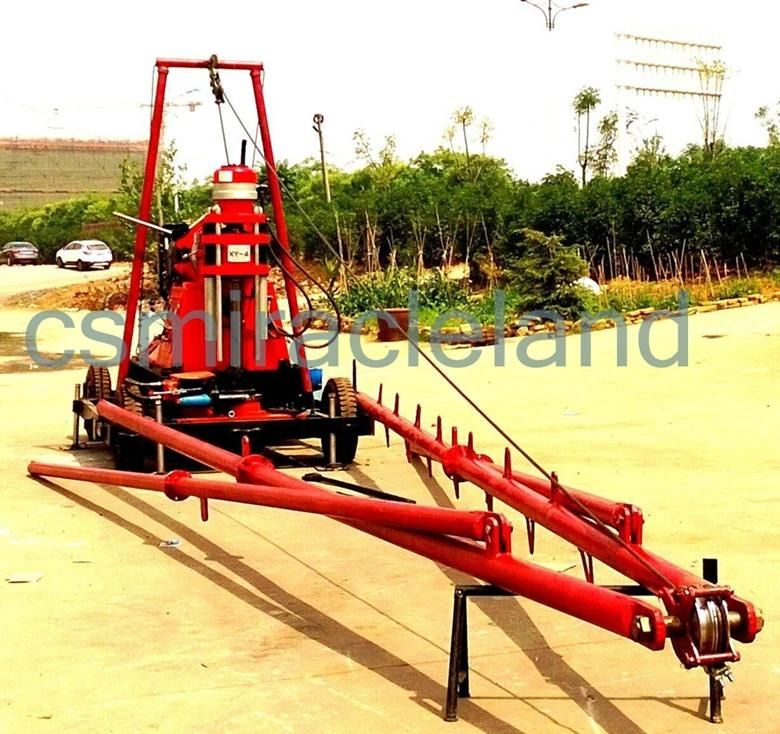

Four-Wheel Trailer Type Water Well Drilling Rig (XY-4)

=== Base Info ===

=== Description ===

Basic Info.

Model NO. trailer type water well drilling rig (XY-4) Origin China HS Code 8430490000

Product Description

XY-4 is a core drilling rig for middle and deep hole. It applies to all kinds of core drilling and engineering geological reconnaissance. Also the machine is widely used on areas such as road,railway and port construction, water resources and hydropower and architecture. The structure of the machine is reasonable,the weight is light and the capability is powerful.





the technical parameters of the XY-4 drilling rig:

Type	XY-4 Drilling Rig
Drilling depth(m)	1000
Oil pump type	CB-F32C-FL
Oil pump nominal displacement(ml/r)	32
Stroke of moving cylinder (mm)	400±10
Spindle speed(r/min)	Positive rotation rate: 1011872673883115748191191 Reverse rotation rate: 83251
Spindle hole diameter(mm)	Φ95
Spindle output torque(N.M)	5757
Spindle stroke(mm)	600
Spindle driving force max.(KN)	60
Spindle lifting power max.(KN)	80
Speed of single rope of the third layer(m/s)	0.821.512.163.14
Lift capacity of single rope max.(KN)	35
Diameter & Length of drum (m)	Φ16x52
Max distance from the hole(mm)	250
Weight(power unit excepted)(kg)	1500
Dimensions(L x W x H)(mm)	2640x1100x1750
Diesel engine type	4105
Diesel engine power (KW)	41
Oil pump nominal rotative velocity(dmin)	1500
Oil pump nominal pressure(MPa)	16
Electric motor type	Y225S-4
Electric motor power(KW)	37
