Sell off! Big Discount! Xj250/50t/70t Single Drum Drawworks Workover Rig Truck Mounted Light Drilling Rig API

=== Base Info ===

=== Description ===

 Main technical parameters
The depth of the well                            3200m (2-7 / 8 " extra oil pipe)
2000m (2-7 / 8 " drill)
Maximum static hook load                       700kN
Rated hook load                                500kN
Maximum engine net power                       247kW/1900rpm
Drawworks maximum input power                 250hp

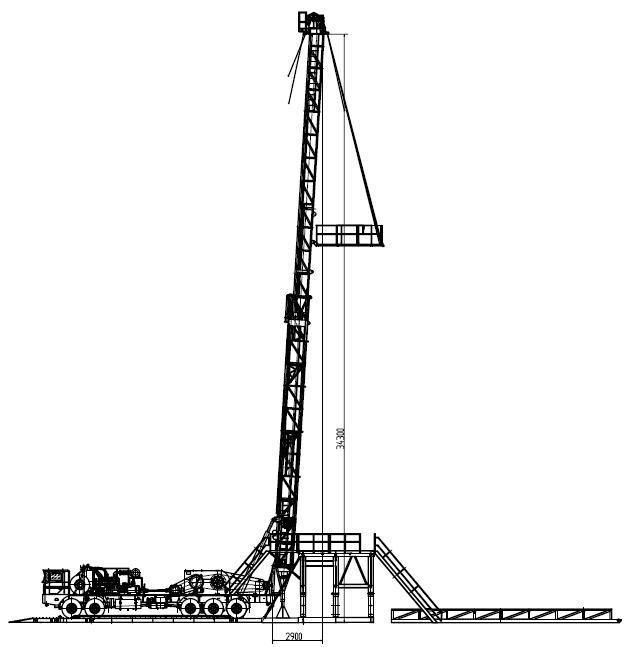

Mast height (ground to crown block )               2lm ( no monkey board)
Travelling system                               4×3
Chassis drive type                              6×4
Wireline diameter                              φ22mm
Maximum speed                               60 km/h (speed limit of 45 km/h)>
Close to the angle / departure angle>               18 °/ 12°
Minimum turning radius                         14m
Overall size                                   13200mmX3000mmX4000mm
Total weights                                  about 27,800 k g
Use temperature                               -19ºC ~ + 45ºC

6.3 Explosion-proof electrical parts; explosion-proof distribution box shell of main rig is explosion-proof type, the shell is composed of wiring cavity and main control cavity.
The wiring cavity is an explosion-proof structure, and the inlet and exit line is closed into a cavity, equipped with circuit cable introduction and exit device.There are all wiring diagram, wiring signs and line direction.The box has a stainless steel nameplate and is clearly marked by each circuit,
Chinese and English, the dimensions involved in metric English.
6.4 Well site lighting:
There are 8 lamp lights and 1 aviation barrier lamp as follows:

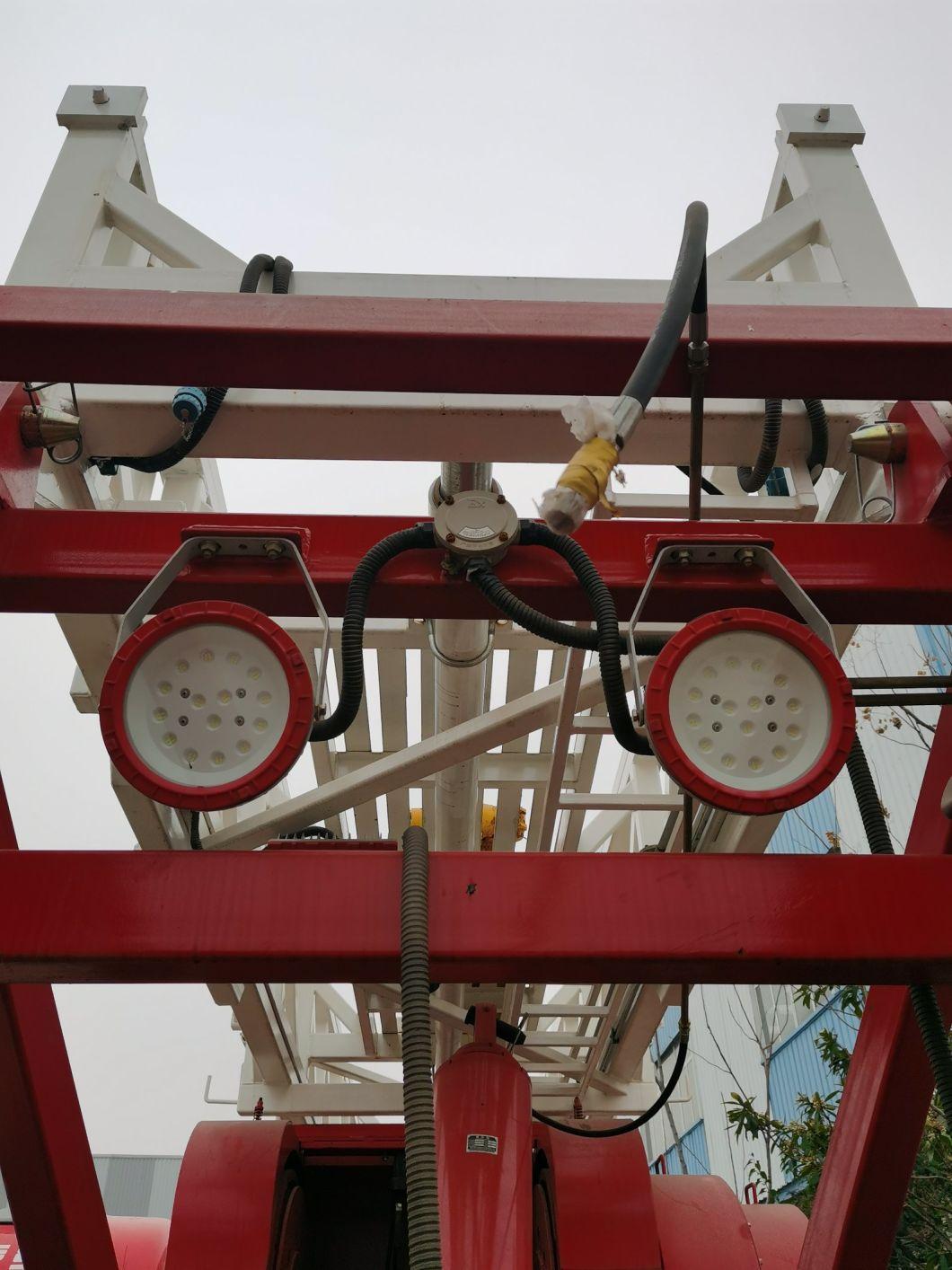

1. There are 4 explosion-proof lamps in the mast area, 1 emergency explosion-proof lamp is installed under the crown block, Other place is installed 3 sets (including 1 set is an emergency explosion-proof lamp).
2. The wellhead are is installed 2 explosion-proof lamps (one of which is emergency explosion-proof lamps) to provide lighting for the wellhead area

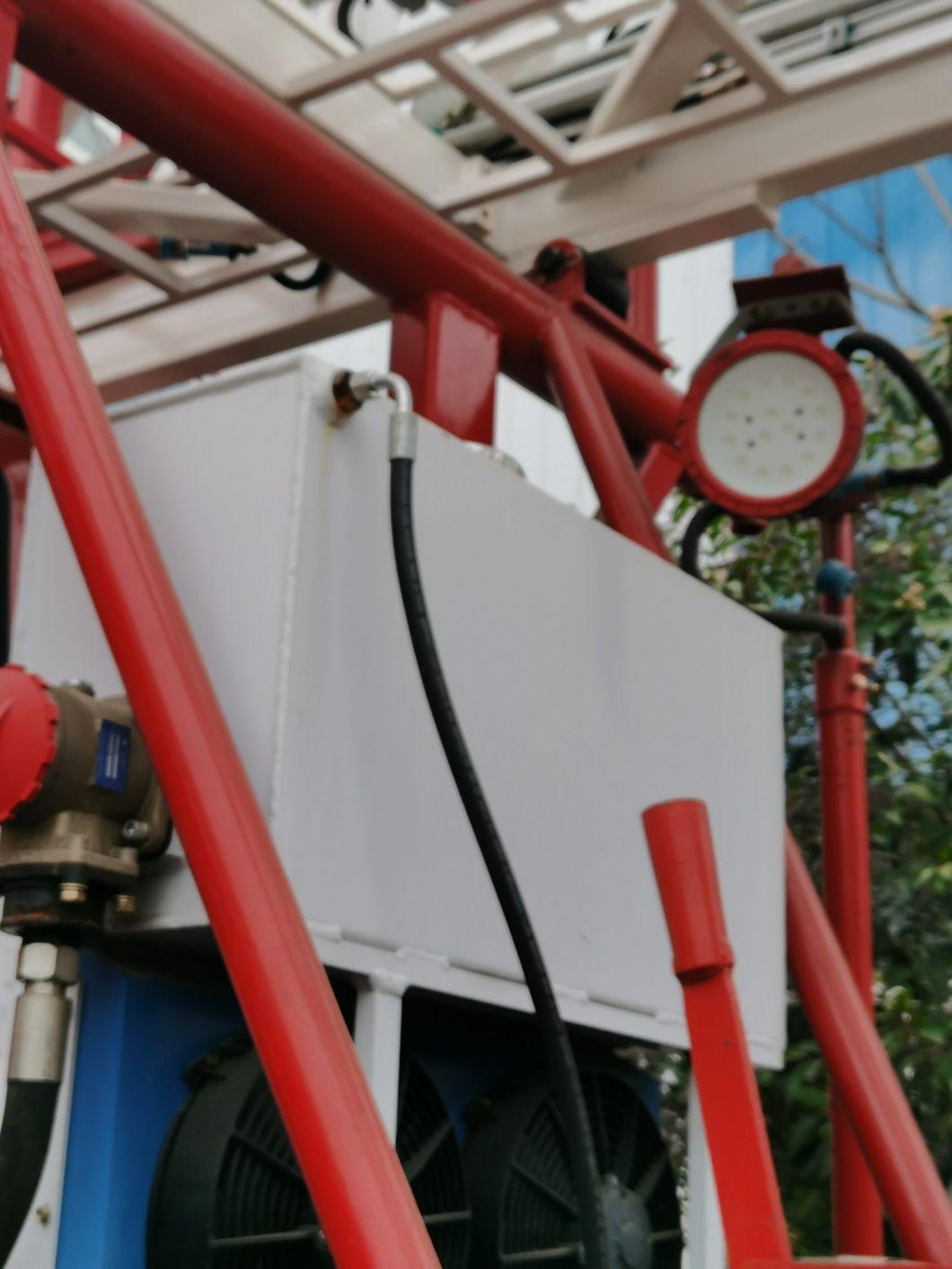

3. One explosion-proof lamp is in the engine area, to provide lighting for the engine area and lamp pole installation.
4.Only one explosion-proof floodlight in the drawworks area to provide lighting for the drawworks and drum.

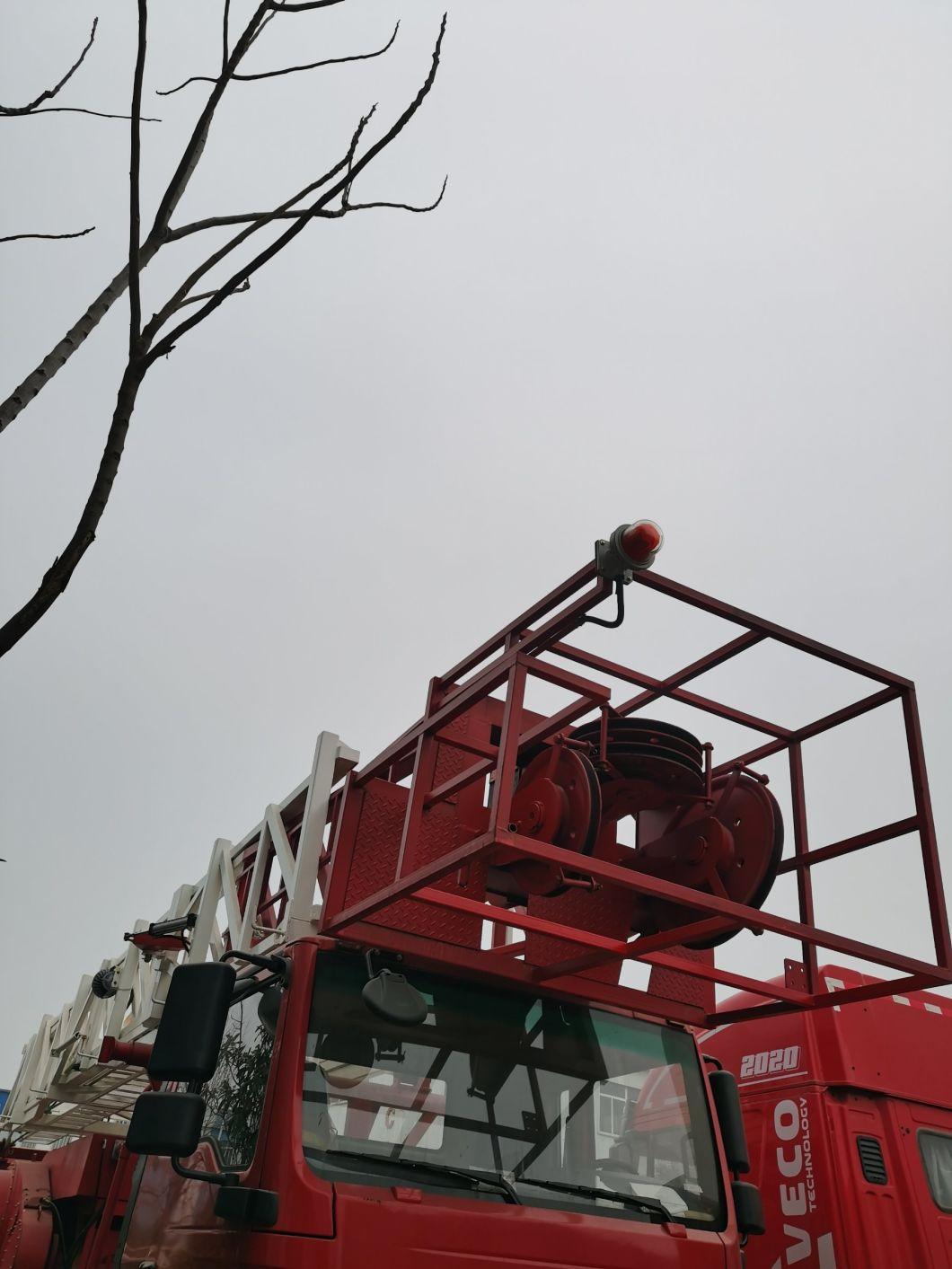

5. One explosion-proof aviation obstruction beacon installed on the top of crown block, LED strobe, red.
