Modified Starch Making Machine Production Line Converted Starch Making Line

• Processing Material：Special Agricultural Products, Natural Ingredients
• Customized：Customized
• Certification：CE, ISO9001
• Power Source：Electric
• Automatic Grade：Semi-Automatic
• Products：Nutritional Powder Making Machine Denaturated

=== Base Info ===

• Transport Package：Wooden Cases and Plastic Film
• Specification：Stainless steel
• Trademark：SUNWARD
• Origin：China
• HS Code：8438800000
• Production Capacity：100kg,H -1000kg,H

=== Description ===

Basic Info.

Transport Package Wooden Cases and Plastic Film Specification Stainless steel Trademark SUNWARD Origin China HS Code 8438800000 Production Capacity 100kg/H -1000kg/H

Product Description

Modified starch making machine production line converted starch making line
Modified starch making machine:

1.1  Modified starch making machine

Modified starch making machine uses corn starch, cassava starch, potato starch cosrice, corn, beans and all kinds of grains as raw materials. Through extruding,inflating,drying,crushing and mixing, it could produce many kinds of modified starch for different using: such as food using, paper process, drilling, chemical industry and so on

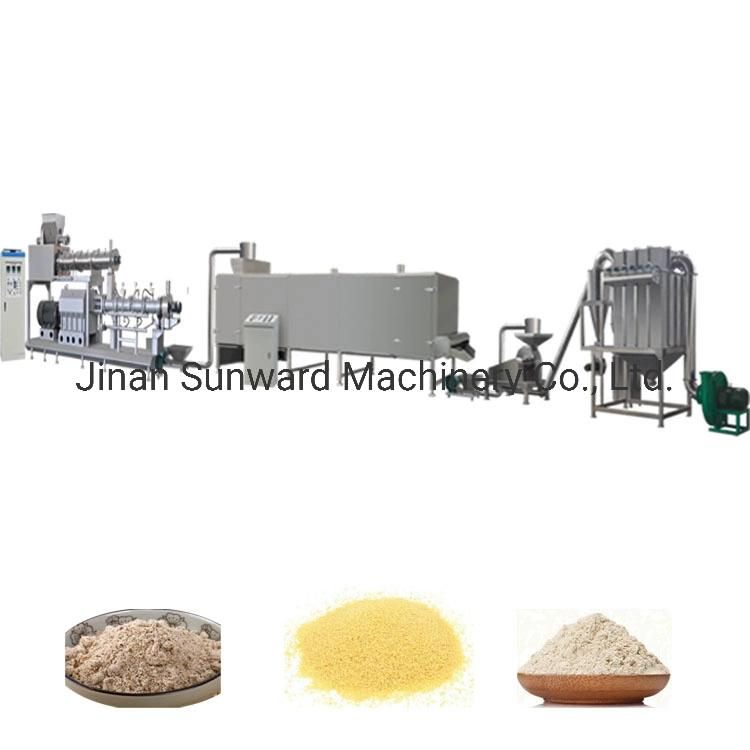

1.2 The whole line of modified starch making machine

Mixer→Screw conveyor→Twin screw extruder→Air conveyor→Dryer→Air conveyor→Milling system

2.Raw materials of modified starch making machine:
Modified starch machiney adopts corn starch,tapioca starch as raw material

3. Output of mModified starch making machine can be 100kg/h-150kg/h, 200kg/h-260kg/h, 300kg/h-500kg/h  and so on.

4. Features of mModified starch making machine:
1)The screws are made by alloy steel and special craft, the screw life is longer, uses building block system structure, may combine willfully.
2)The forced lubrication system, by guaranteed equipment transmission longer life.
3).Visible auto-temperature controlling system, make the temperature-controlling to be more direct -viewing, parameter to be more precise.
4). Voltage : Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries


5. The parameters of modified starch making machine:

Model	TSE-65	TSE-70	TSE-85
Installed Capacity(kw)	73	120	190
Real Power(kw/h)	50-73	96-120	148-190
Output(kg/h)	100-150	200-300	300-500

2 Main machine information
2.1 Twin-screw extruder

1.The main extruder adopts frequency speed controlling with high automation.
2.The screws are made of the stainless steel and special craft, which has the advantage of durable usage, high pressure,and longer life.
3.The forced lubrication system ,which can guarantee the equipment transmission life longer.
4.Auto-temperature control system and self-cleaning ,which makes it more convenient.
5.It has the widest range of applications and can produce different products with different equipment and models.

2.2 Multi-layer dryer



1.We have four types of dryers, which includes fuel ovens, gas ovens, electric ovens, and high temperature inflated ovens (used to produce corn flakes).
2.The electric oven has three layers of five meters / five layers of five meters / five layers of eight meters / seven layers of eight meters / seven layers of eleven meters, etc., each layer has electric heating tubes,the purpose is to be more evenly heated.
3.Dryer is compact, has small dry area and a largesuperficial area. It also features small scale of heat elimination and high thermal effciency.
4.Mesh belt conveyors and thermal insulation boards all use stainless steel material, making the equipment clean and sanitary.
5. The speed of mesh belt conveyor is adjustable, the drying period for food in the oven can be adjusted.
6. The automatic temperature control system makes it possible to set the temperature according to your needs.

2.3 Grinder



1.Full stainless steel material.
2.draught fan and dusct collect device added to make the process clean. It is widely used in food process.
3. Change the mesh screen, it could process various sizes products


Packaging & Shipping

1. Testing Machine before package.
2. Packaging: inside is covered in plastic film, outside is wooden case.
3. Shipping: 15-35 working days after receiving deposit.
