Portable Oil Pressing Machine

• Type：Spiral Oil Press
• Application：Beans
• Voltage：380V
• Press Materials：Sunflower
• Press Series：Second
• Condition：New

=== Base Info ===

• Model NO.：YL
• Customized：Non-Customized
• Transport Package：Export Standard
• Trademark：chengli
• Origin：China
• Production Capacity：100kg Per Hour to 300ton Per Day

=== Description ===

Basic Info.

Model NO. YL Customized Non-Customized Transport Package Export Standard Trademark chengli Origin China Production Capacity 100kg Per Hour to 300ton Per Day

Product Description

soybean/cocnut/sunflower/peanut oil press machine have cold and hot dual-purpose multifunctional screw oil press is a large-scale oil press newly developed and improved by our company. It can squeeze rapeseed, peanut, soybean, sunflower and other vegetable oils. soybean/cocnut/sunflower/peanut oil press machine is micro-electrically controlled, infrared heating, vacuum filtration, three-stage pressing, hot pressing or cold pressing. It is the most ideal equipment for individual processing.
 1. soybean/cocnut/sunflower/peanut oil press machine,the wearing parts are made of high-quality steel after carburizing heat treatment, which prolongs the service life and reduces the user's use cost and maintenance time.
2. The use of a new large-modulus helical gearbox improves the transmission efficiency and reduces energy consumption.
3. Reasonable press chamber design improves oil output efficiency.4.The complete grinding and testing procedures before leaving the factory improve the ease of operation of the oil press.
When the oil press is running, the processed oil enters the press chamber from the hopper. The raw material is continuously pushed inward by the squeezing screw for pressing. Because the material embryo is in motion in the press chamber of the oil press, under the condition of high pressure in the press chamber, a great friction resistance is generated between the material embryo and the snail, and the material embryo and the press chamber. It can cause friction between the micro-materials and cause relative movement. On the other hand, because the diameter of the root circle of the snail is gradually increased and the pitch is gradually reduced, when the snail rotates, the threaded material can be pushed forward and turned outwards, and it is close to the screw thread. The surface material layer also rotates with the press shaft.

In this way, each embryo particle in the press chamber does not move at the same speed and in the same direction, but there is also relative movement between the particles. The heat generated by friction meets the heat necessary for the operation of the oil extraction process, helps to promote thermal denaturation of the protein in the raw material, destroys the colloid, increases the plasticity, and reduces the viscosity of the oil, which is easy to precipitate oil. The oil output rate of the oil press is improved, so that the oil in the oil is squeezed out and flows out from the gaps in the circular row and the row.

Model	6YL-100	6YL-125	6YL-130	6YL-160
Screw speed	30-40 r/min	30-40 r/min	28-40 r/min	28-40 r/min
Gear Ratio	15/40x15/55=1:9.78	15/34x15/55=1:9.59	15/38x19/48=1:7.38	15/38x15/52=1:8.78
Dimension	2100*1360*1950mm	2050x1350x2000mm	2400x2300x1700mm	2500x1600x2500mm
Productivity	150-250kg/h	200-300kg/h	250-400kg/h	450-600kg/h
Power	6-7.5KW	6-11KW	6-15KW	6-18.5KW
Vacuum pump	Y90S-4-1.1KW	Y100L1-4-1.5KW	Y100L1-4-2.2KW	Y100L1-4-2.2KW
Heater	3KW	3.3KW	3.8KW	4KW

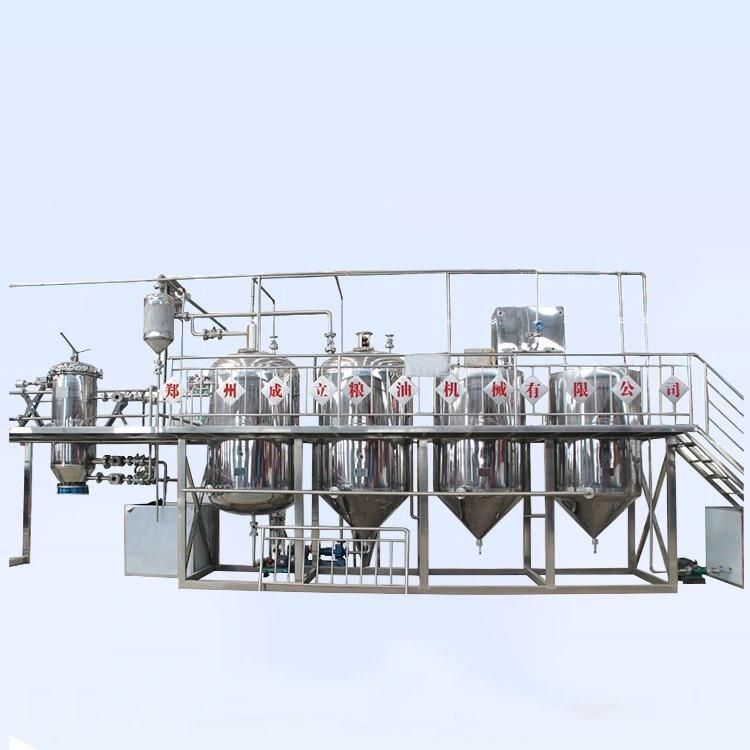

The company is a professional manufacturer of edible oil refining equipment; it is a professional company integrating grain and oil mechanical engineering design, manufacturing, installation and commissioning and other services. It is the production of Class I and Class II pressure vessels, namely flammable and explosive vapor vessels. Professional design and manufacturer.
The cold and hot dual-purpose multifunctional screw oil press is a new type of product newly developed and improved by our company. It can squeeze rapeseed, peanut, soybean, sunflower and other vegetable oils. The machine is micro-electrically controlled, infrared heating, vacuum filtration, three-stage pressing, hot pressing or cold pressing. It is the most ideal equipment for individual processing.

Screw oil press machine can use to various oil material, eg: peanut,sunflower, soybean, castor seed, sesame, rapeseed, cotton seed, corn germ, walnut, almond etc.
Service :

1. Installation: quality and quantity guaranteed; Handover completed.

2. Acceptance: acceptance test; acceptable deliverable.

3. Technical training: on site installation and product training.

4. 24 hours online. Your query will be answered quickly by email. All problems related to you can be solved through any online chat tool.


1. Professional patient introduction, detailed pictures and working video to show the machine.
