Hydraulic Oil Mill with Vacuum Filter

• Type：Hydraulic Pressure Mechanism for Oil Press
• Application：Edible Oil
• Voltage：380V
• Appearance：Vertical
• Press Materials：Sesame, Walnut, Peanut, Rape Seeds etc
• Press Series：Second

=== Base Info ===

• Model NO.：6Y-180-1
• Condition：New
• Customized：Customized
• Vacuum Filter：Yes, Glass Filter
• Max Pressure：60MPa
• English Manual：Yes
• CE Certificate：Yes
• Capacity：15-30kg,h
• Power：1.5+1.1kw
• Transport Package：Wooden Fumigated Box
• Specification：CE, ISO
• Trademark：VIC
• Origin：China
• HS Code：84792000
• Production Capacity：5000PCS,Year

=== Description ===

Basic Info.

Model NO. 6Y-180-1 Condition New Customized Customized Vacuum Filter Yes, Glass Filter Max Pressure 60MPa English Manual Yes CE Certificate Yes Capacity 15-30kg/h Power 1.5+1.1kw Transport Package Wooden Fumigated Box Specification CE, ISO Trademark VIC Origin China HS Code 84792000 Production Capacity 5000PCS/Year

Product Description

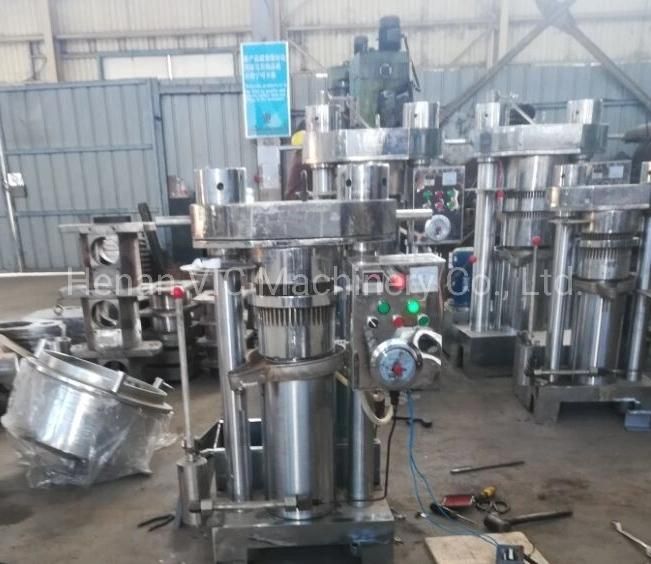

 Hydraulic Oil Mill with Vacuum Filter

 1.Application:The 6Y-230-I hydraulic oil press is improved based on 6Y-230 by introduced Korean technology and won high praise from users, with vacuum filter the final oil will be much better. It can be applied for oilseeds such as sesames, walnuts and pine nuts, etc.

With lower power consumption and noise, it can be fed with 7-8kg of material every time and completely squeeze in 6-8min. The final oil is good edible oil.

2.Technical data:
Model: 6Y-180-1 hydraulic oil press
Capacity: 15-30 kg/h for raw materials
Heating collar power: 1.5kw+1.1kw (380V/50Hz)
Heating collar control temperature: 70-100° C
Max pressure: 60Mpa
Motor model power: Y901-4. 1.5kw
Pressure Kg: 1600KN
Size: 1300X800X1200mm
Weight: 620kg
6Y series hydraulic oil press machine without filtering system:

Model	6Y-180	6Y-230	6Y-300
Process capacity	15-30kg/h	50-80kg/h	100-150kg/h
Power	1.5kw(380v/50hz)	1.5kw(380v/50hz)	3kw(380v/50hz)
Heating collar power	1kw	1kw	2kw
Heating collar temperature control	70-100 degree	70-100 degree	70-100 degree
Nominal pressure	1600KN	2200KN	3000KN
Max pressure in working	55MPA	55MPA	55MPA
Overall size	800x60x1100mm	900x750x1400mm	2600x1000x2000mm
Weight	530kg	880	3200kg

 3.More pictures

Contral box with double scale pressure

Hydraulic systerm

Press cloth and sealing ring

Package


Factory corner

4.Our factory
