UPVC PVC WPC Wood Plastic Door Frame Profile Production Machine

Zibo Dongchen Abrasives Co., Ltd. / 2022-07-04

UPVC PVC WPC Wood Plastic Door Frame Profile Production Machine

=== Base Info ===

=== Description ===
Overview Product Description


1. It is designed for producing various size of plastic composite products,such as WPC profiles,WPC board,WPC decorate panel.Our WPC machine has features of low consumption,low noise,stable running..
2. This WPC machine include:extruder,mould,vacuum calibration table,haul-off machine,cutter and stacker.
3. The extruder of WPC machine adopt special wpc screw and barrel for extrusion.With different mould,WPC machine can produce wpc products with different shapes.

Flow Process

1.PE/PP WPC profile production flow
Wood milling(wood powder,rice husk)-- Mixer(plastic+wood powder)--Pelletizing machine--PE/PP-WPC extrusion line
UPVC PVC WPC Wood Plastic Door Frame Profile Production Machine

2.PVC-WPC profile production flow
Wood milling(wood powder,rice husk)--Mixer(plastic+wood)--PVC-WPC extrusion line

UPVC PVC WPC Wood Plastic Door Frame Profile Production Machine
Technical Parameter

ModelYF180YF300YF600YF800YF1000Max.width of product(mm)1803006008001000Extruder modeSJZ51/105SJZ65/132SJZ80/156SJZ80/156SJZ92/188Extrusion capacity(kg/h)150180360360600Motor power(kw)18.5375555110Total length(m)1822262832

Machine list

ItemQuantity1.SJSZ series conical twin screw extruder with auto feederone set2.Die mould (designed as per custoemr sample or sample drawings)one set3.Vacuum calibration tableone set4.Haul-off unitone set5.Cutting unitone set6.Stackerone set

7.Electric control system

one set8.Spare parts listone setDetailed Photos

1.SJZ series conical twin screw extruder:
The specially designed screw and the advanced controlling system ensure excellent plasticization, high output and stable extruding.
UPVC PVC WPC Wood Plastic Door Frame Profile Production Machine
2.Die mould:
Mould adopts high-quality alloy steel and throttling device to ensure even pressure of feed influent at the mould lips, and also differential action of up-down piece guarantee even thickness of the plate.
UPVC PVC WPC Wood Plastic Door Frame Profile Production Machine
3.Vacuum calibration table:
Heating exchanging and cooling system of quick speed in calibrating system alternate effectively and ordinally with vacuum system, which ensures calibrating precision. Vacuum system composes two independent subsystems and each is equipped with several fixed circulating vacuum lines of three-point type. Meanwhile, each line carries vacuum regulating system and vacuum display system that realize even and stable vacuum degree of plate surface.
UPVC PVC WPC Wood Plastic Door Frame Profile Production Machine

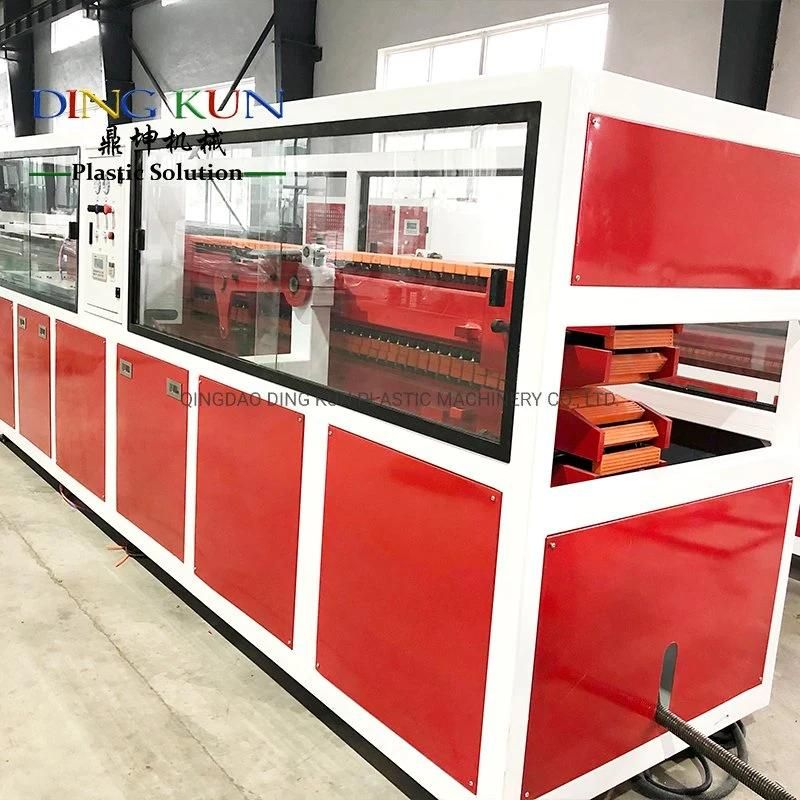

4.Haul-off unit & Cutter unit :
There are two tractors. The first one is of high powr, high reduction ratio, multi-roller type, well low-speed operation, high traction and is able to draw the plate up from the calibrating table evenly and synchronal. The second one is designed to remove stress, and in addition it is equipped with edge-cutting device to ensure the valid width and smooth cut of the edges.
UPVC PVC WPC Wood Plastic Door Frame Profile Production Machine5. Stacker
UPVC PVC WPC Wood Plastic Door Frame Profile Production Machine
WPC Products - Produced by machine
UPVC PVC WPC Wood Plastic Door Frame Profile Production Machine

Packaging & Shipping

UPVC PVC WPC Wood Plastic Door Frame Profile Production Machine

Certifications



CertificationCertified ByCertificate No.Business Scope Expiry DatISO 9001:2008Beijing Hangxie Certification
Center Co., Ltd.,
CNAS
03413Q21640R1MDesign and Production of
Single-Screw Plastic Extruders
and Conical Twin-Screw
Plastic ExtrudersCEEuropeanInspection and
Certification
Company S.A.CN.CE.0680-10/10Plastic Extrusion Machinery &
SJ-30, SJ-45, SJ-65, SJ-90,
SJ-120, SJ-150, SJ-180,
SJ-200, SJSZ-51/105,
SJSZ-65/132, SJZS-80/156,
SJSZ-92/188TUVTÜV Rheinland7467484_P+TProduction & Trade AssessmentMain Product Lines Verification ReportTÜV Rheinland7467487_P+TMain Product Lines VerificationSGS

SGS-CSTC Standards Technical Services Co.,Ltd
Focus Technology Co., LtdQIP-ASR155278Extrusion Machine, Pipe Machine ,profile Machine, Roof Machine



FAQ


Q: Your company is an industrial manufacture factory or a transactional company ?

A: Deerma Company is an industry manufacture of Extrusion Machines.

Q:All of your products are made by your self or compacted via purchasing the others?

A: we have independent technical team who focus on design & development & Manufacture extrusion machines. all the products are made by our technical team.

Q:Annual Production Capacity( Previous Year)

A: About 80 lines from 2018.1 to 2019.12 and total revenue is about USD 2500000

Q: Quality Control Management

Q: Is there quality control on all production lines?

A: Yes, all production lines have adequate quality
control

Q:Do the QA/QC inspectors work independently from the production line?
A: Yes

Q:How many QA/QC inspectors in total?
A: 4


Execellent Service-Turnkey Project (Pre-Sale and After-Sale Service)


Company Profile

UPVC PVC WPC Wood Plastic Door Frame Profile Production MachineUPVC PVC WPC Wood Plastic Door Frame Profile Production Machine
UPVC PVC WPC Wood Plastic Door Frame Profile Production Machine
DINGKUN is committed to providing full support for its local and international clients and dealers and will always provide a prompt response to customer enquiries.


1. Provide all the machines for the complete production according to customer's requirements.
2. Provide complete service for factory layout and other information to help customer to build the factory.
3. Provide the raw material to the customer if need.
4. Provide good service for machine installation and training, until the customers can run the machines and make stable production.
5. Provide after-sell service for all the life, except one year quality guarantee,
6. Provide good quality, good price and good service to customer. We are the professional and trustable supplier for turnkey projects. Let us do win-win business together.


Why Choose us
1.We are China Leading Plastic Machine Manufacturer.
2.Alibaba Assessed 7 years Domestic Supplier .
3.Inspected by the Inspection Institution of SGS Certification.
4.100% QC inspection Before Shipmeng.
5.Best Quality & Best Service with Competitive price.

We have SIX this production lines in our showroom for other customer , welcome to visit our factory
