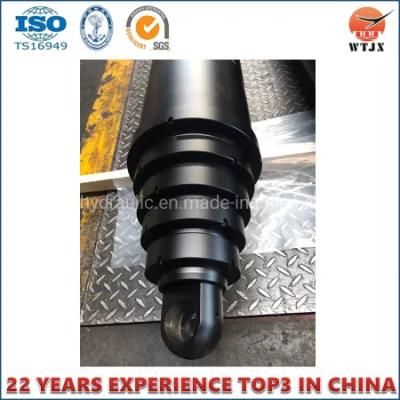

Customized Parker Piston Type Telescopic Hydraulic Cylinder for Tipper Truck/Dump Trailer

• Certification：ISO9001, ISO,Ts16949, ABS, API
• Pressure：Medium Pressure
• Work Temperature：Normal Temperature
• Acting Way：Single Acting
• Working Method：Straight Trip
• Adjusted Form：Switching Type

=== Base Info ===

• Model NO.：PK 4TG F7*180
• Structure：Piston Type
• Material：Carbon Steel, 27simn, Alloy Steel
• Rated Pressure：16-20MPa
• Color：as Customer′s Requirement
• Working Temperature：-30~+100 Degree Centigrade
• Delivery Time：25-30 Days
• Open Length：6124mm
• Closed Length：1552mm
• Stroke：4572mm
• Stage：4
• Transport Package：Pallets,Plywood
• Specification：CE
• Trademark：WTJX , ODM , OEM
• Origin：Shandong, Rizhao
• HS Code：84122100
• Production Capacity：200, 000 Sets

=== Description ===
MaterialCarbon steel, Alloy steel, 27SiMnHoned tube50-280mm, Heat treatment, honing, rollingPiston rod50-240mm ,tempering, plated nickel, Chrome or ceramicWorking Pressure16-20MpaSealsParker, Merkel, Hallite,KadenTechnologyBosch Rexroth, Parker, HYVA, MeillerCoatingSandblasting, primer paint, middle paint, finish paintTemperature range-30°C to +100°CWork mediumHydraulic OilPiston speedmaximum 0.5m/sMounting styleEarrings, flange, foot mounting, screw thread.


No.3  Complete Manufacturing Processes

700 sets manufacturing equipment,such as cold drawing production line ,heat treatment production line ,surface treatment production line,testing equipment,various digital-control machining equipment,gantry style linear electroplating production line.



>Owned plating plant founded in 1998;
>Owned honed tube plant founded in 2000;
>Owned Heat treatment founded in 1995;
>Each processing under our control, each products,every step under strict quality control;

No.4  Advantage
1) Professional, skilled, reliable.
2) One-stop total solution
3) Ready stock goods with fast delivery
4) Customizable: Non-standard sizes are also available
5) Small quantity is acceptable
6) Refund or replacement for any product faulty

No.5 Dream
*Company vision:Act as the laeder of internal hydraulic industry
*Enterprise concept:Better and stronger
*Core values:Learning and innovation,equality and justice,customers the first,and quality winning the world
*Enterprise spirit:Complete sincerity,complete precision more excellent,and up to date
*Quality policy:Pursue zero defects of our products,and realize zeo customers' complains
*Company type:Respond quickly,act immediately,finish what to do today,and improve day after day

No.6  Strict Quality Control System And Certificates and Packaging


1. Trial Operation Test
2. Start-up Pressure Test
3. Pressure-Tight Test
4. Leak Test
5. Full Stroke Test
6. Buffer Test
7. Testing the Effect of Limit
8. Load Efficiency Test
9. Reliability Test

Every piece of hydraulic cylinder are tested and will send out only after they are pasted the each test.

Our company has abundant technical force and perfect testing means. By making wide technical and business cooperation with many related enterprises, universities, colleges and institutes both at home and abroad, and employing senior engineers and software engineers, we have greatly strengthened and improved our designing, processing, and testing abilities.

No.7 After-service

 1).Pre-sale service: Keep communicating with the truck manufacturers , including selection of product model , design of hydraulic system,   test of performance and analysis of the accident. Once the problems occur, we will solve them immediately together with truck manufacturers
 2).The sale service: Provide training and technical support for users.
 3).After-sale service: Solve the problem firstly, then analyse responsibility ; Replace the system components immediately if any need.
 4). 24 hours telephone service hotline.

No.8 Rich Market Experiences and Exhibitions



We are the supplier of Sinotruk, CAMC, CIMC, Beiben Truck, AUMAN, JMC, FOTON, JAC, SHACMAN,  Dayun, IVECO most of famous truck manufacturing and refitting company use our telescopic cylinder as first choice.
We attended each Bauma ,Las Vegas exhibition, the world grade fair for construction equipments, building material machines, mining machines and earn much more opportunity to extend our business to oversea market.

No.9 FAQ

Q1. What are the same aspects of your cylinder with Hyva cylinder?
A: Same inside structure.
Same outside dimension and same mounting sizes. It can be interchangeable with Hyva's

Q2. Compared with Hyva cylinder, what are your cylinder advantages?
A: 1. Rod are chrome plated.
2. Tubes are quenched and tempered.
3. Tube inner hole goes through deephole boring machine processing. Surface roughness is 0.4Ra
and circular degree is 0.025.
4. Good quality yet lower price.

Q3: Are you a manufacture or a trade company?
A: Manufacture, we are the leader manufacturer of hydraulic industry in China with 22 years' experience and technology accumulation. With strong technical team we could solve any annoyance of you.

Q4: Do you have quality control system?
A: Yes, The quality management system introduced is: ISO/TS 16949:2009-certified by NQA and IATF cert.

Q5: How can I get a booklet and buy a cylinder from you?
A: Very easy! Just leave me a message or email or call me directly, let me know you are interesting in our products. I will talk with you for the details soon!

Q6: Can you tell me the price for the cylinder?
A: 1. Please advice the drawing with technical requirement.
2. Please advice the model No. after you check our booklet.
3. Please advice the tipping capacity, number of stages, closed length, mounting type and size.
4. Please also help advice the quantities, this is very important.

Q7: Do your products come with a warranty?
A: Yes, we have fourteen months warranty. In this year, if the quality problem we will free repair for you.

Q8: Hydraulic cylinder internal leakage?
A: 3 main reasons causing internal leakage: Overload, polishing bad controlled, cheap seal kits. As is known to all, vehicles in China are often overloaded, our products all designed to bear the overload power. Advanced equipment could assure the polish processing. And we use the imported/TOP brand seals to meet customers' requirement.

Q9: What about the quality feedback of your products?
A: We have never received even once quality complaint for many years of international business.

Q10: Can you help me to install or recommend what kind of hydraulic cylinder or power pack should I use for specific machine?
A: Yes, we have 25 experienced engineers who are always ready to help you. If you do not know what kind of hydraulic cylinders should be used in your machine, please just contact us, our engineers will design the exact products match your need.

Q11: What is the delivery time?
A: Within 15 days for samples.
15-30 days for bulk production, which is depend on quality, production process and so on.

Q12: What is your main payment term?
A: T/T, L/C, either is available.
