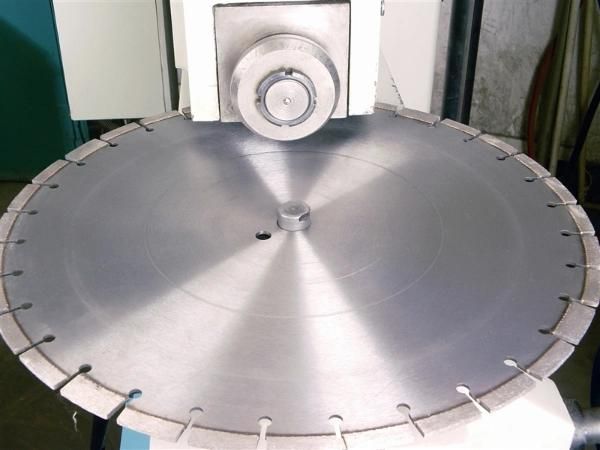

China Professional Concrete Cutting Diamond Cutting Disc

• Blade Type：Cutter Head
• Manufacturing Process：Sintered
• Application：Stone Cutting
• Item：Diamond Cutting Disc
• Technology：Laser Welded and Silver Welded
• Material：Steel Core and Sintered Diamond Segment

=== Base Info ===

• Model NO.：LQ350C
• Package：Carton Box and Crate
• Kind：Diamond Cutting Disc
• Manufacturing Arts：Sinter
• Usage：Stone Cutting, Diamond Cutting Disc
• Saw Blade External Diameter：350mm
• Transport Package：Carton Box and Crate
• Specification：300-4200mm, D400MM
• Trademark：KEENTOOL
• Origin：Quanzhou, China
• HS Code：82023100
• Production Capacity：3000PCS,Month

=== Description ===
DiameterLength
(mm)Width
(mm)Height
(mm)Segment No.Arbor size
(mm)InchMetric(mm)12"300403.010/12/15/202150/6014"350403.210/12/15/202416"400403.410/12/15/202818"450403.610/12/15/203220"500404.010/12/15/203624"600404.510/12/15/204228"700405.010/12/15/205032"800406.010/12/15/205736"900246.5/7.513/156410040"1000246.5/7.513/157048"1200247.0/8.013/158064"1600248.2/9.213/1510872"1800249.0/10.013/1512080"2000249.5/10.513/15128110"25002411/1215/20140120"30002411/1215/20160135"35002412.5/13.515/20180150/200155"40002413.5/14.515/20200165"42002413.5/14.515/20210When place order for saw blades please inform the following:
1) Diameter (Inch or mm)
2) Inner Hole Size (Inch or mm)
3) Installation hole (If, need drawing)
4) Silent or None Silent Saw Blade
5) Segment No. (how many PCS segment per blade)
6) Segment Size (L x W x H, if possible please inform Steel Core Thickness)
7) Use of saw blade (For Granite, or marble, or limestone, or Sandstone. Or other material)
8) Quantity NO. (How many PCS, or how many sets segments)
9) Machine Powder/RPM (If possible)
10) Expected Shipping Date
11) Special Requirements (If) ALWAYS AT YOUR SERVICE--KEENTOOL
