Single and Twin Screw Extruder for Pipe Sheet Board Profile

=== Base Info ===

=== Description ===
SPECIFICATIONS FOR PVC PIPE EXTRUSION LINEModelPipe spec(mm)Conical twin screw extruder Max.output
(kg/h)Total power(kw)GWG63-PVCΦ20-Φ63GSZ65/132180-300104GWG160-PVCΦ63-Φ160GSZ65/132180-300105GWG250-PVCΦ75-Φ250GSZ80/156300-450110GWG315-PVCΦ200-Φ315GSZ80/156300-450216GWG450-PVCΦ200-Φ450GSZ92/188650-750290GWG630-PVCΦ315-Φ630GSZ92/188750-850350GWG800-PVCΦ500-Φ800GSZ135/31950-1100410 Parallel twin-screw extruder technical specificationModelMotor power(kw)Screw diameter
(mm)Max.speed
(rpm)L/DMax.capacity(kg/h)Weight(kg)GSP75/2837753628:12804100GSP93/1345/55934531:14504700GSP110/3190/1101104531:16806500GSP120/31110/1321204531:18507500GSP135/311601354531:111008400

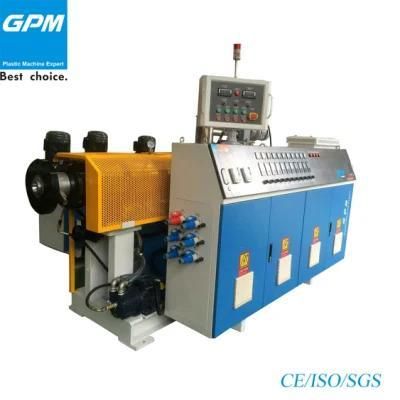

 Name: Extruder
Brand: GPM
Original: Shanghai, China
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits .

Name: Planetary cutter
Brand: GPM
Original: Shanghai , China
High efficiency cutting , no dust.

Name: Haul-off Machine
Brand: GPM
Original: Shanghai , China
Multi claw type tractor , available for different diameters pipe .

Name: Spring Tank
Brand:  GPM
Original:  Shanghai , China
Adopt adjustable bracket system, easy adjustment, labor and  time saving.



For choosing the proper machine and saving your time, please read these bellow guides carefully
1). What kinds of plastic machinery do you need ? Or what material do you want to process?
2). What capacity do you want? (kg/h )
3). What is the max and min size of the finish products .For example, the width and thickness of sheet(mm)?
4) What is the electric device you need ? Siemens, Omron or domestic ?
5) When do you want the machine? (Times for delivery)
6) Other requirements about the machine you want.

if you are interested in this machine ,please contact me:
mob :+86 13817556740


Jeremy He
