Pet Bottle Washing Recycling Line 1500-2000kg/H/Plastic Recycling Equipments

=== Base Info ===

=== Description ===

Basic Info.

Model NO. PET-2000 Processing Plasitc Power 30kw Electrical Imported Transport Package Wooden Block Specification 1500kg/H Trademark GM Origin China Production Capacity 10sets/Year

Product Description

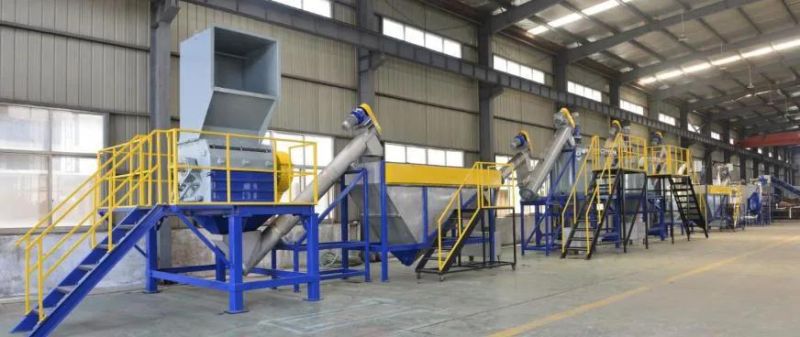

PET bottles recycling washing line
Capacity from 1000-3000kg/h

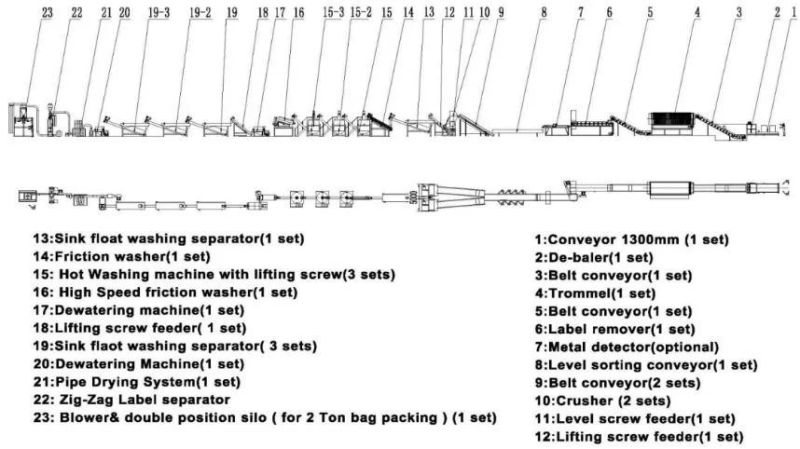

Processing flow chart
Debaling-trommel separation-pre-washing-manual sorting-wet crushing-sink float washing-hot washing-high speed friction washing-sink flat washing-air sorting-drying system-storage and packing
Main parameters

Capacity	500kg/h	1000kg/h	2000kg//h
Size of the production line	30x10x6m	50x120x6m	80x15x6m
Total power	155kw	285kw	445kw
Water consumption	3t/h	4t/h	5t/h

 Main technical parameters:
1.1. Electricity power use :380V,50Hz,3phase
1.2 Material: PET bottles
1.3. Final size of scraps: mesh screen: φ12mm
1.4. Output: 1500-2000Kg/hour
1.5 Machine color: specified by customer
