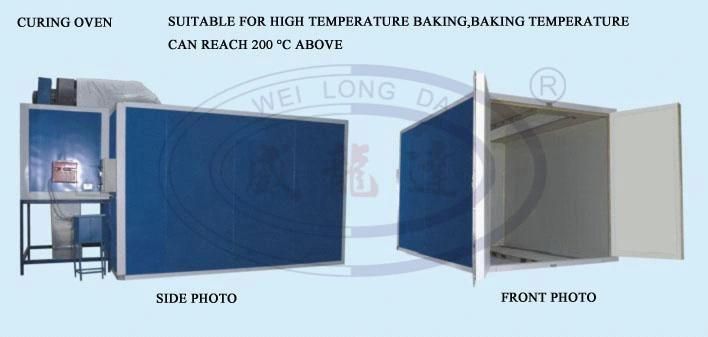

Chamber Type Curing Oven with Diesel System

Ako Printing Technology Shanghai Limited / 2022-07-05

Type：Oven
Voltage：380V
Customized：Customized
Oven Size：4600*2400*2200mm
Max Temperature：250 Degrees Celsius
Working Temperature：180-220 Degrees Celsius

=== Base Info ===

Model NO.：Baking oven
Empty Loading Rising Time：<=45min
Transport Package：Export Standard
Specification：Standard Type
Trademark：WeiLongDa
Origin：Guangzhou, China
HS Code：8419899090
Production Capacity：2, 000 PCS,Year

=== Description ===
1)Oven Oven Size: L4600mm×W2400mm×H2200mmFloor Setting TypeFront and back door both open 1. Technical Parameter:a) Max Temperature:250ºC;b) Working Temperature:180-220ºC;c) Empty Loading Rising Time:≤45 min.2. Technical Content:a) Oven Body:Outside panel adopts δ0.476mm stainless steel,Inside panel adoptsδ0.476mm galvanized stainless steel;b) Insulating layer adopts volume of 120Kg/mm³ rock wool,thickness 100mm;c) Board and board connected by mosaic structured) The ceiling has two explosive-proof holes.3. Oven Appearance:border white,oven body gray white. 1)Oven Oven Size: L4600mm×W2400mm×H2200mmFloor Setting TypeFront and back door both open 1. Technical Parameter:a) Max Temperature:2500C;b) Working Temperature:180-2200C;c) Empty Loading Rising Time:≤45 min.2. Technical Content:a) Oven Body:Outside panel adopts δ0.476mm stainless steel,Inside panel adoptsδ0.476mm galvanized stainless steel;b) Insulating layer adopts volume of 120Kg/m3 rock wool,thickness 100mm;c) Board and board connected by mosaic structured) The ceiling has two explosive-proof holes.3. Oven Appearance:border white,oven body gray white.

2) Heating System

1. Technical Parameter:

a) Heating source:0# diesel;

b) Power supply:380V;

c) Heating style: Hot air recycling

2. Technical Content:

Recycling fan:rated loading type water-cool Centrifugal fan Model:4-72-3.6#C-3KW 1set
Air Capacity:5268m3/H Full pressure:989pa

Burner:G20 Oil Consumption:8-16kg/h Power:320w

3. In-out air duct:adopt δ0.8mm bended galvanized stainless,outer fiber cloth,heat insulation EPS,thickness 50mm;

4. In-out wind groove:adopt δ0.8mm bended galvanized stainless,Inside oven uniformly distributed,Adjustable air flow shutter,assure inside oven temperature uniformly;

5. Heat exchanger:200000 Kcal/hour/set(1set);

6. Inside panel adopts δ1.0mm galvanized steel sheet,outside panelδ1.2mmgalvanized steel sheet;

7. Thermal barrier adopts 10mm thickness aluminum silicate,Temperature resistance 8000C;Thermal barrier adopts 150mm of volume of 120Kg/M3 rock wool;

8. Internal bladder made of stainless steel

3) Control Setting :

1. Automatical temperature control system,up and down limit temperature setting, digital display.

2. This product design accords to international standard,definitely safe when using.

3. Time meter controls constant temperature time,can turn off at a fixed time.

4. One control box,centralized control and easy operation.
