Plastic Film Mulch Extrusion Line Landfill PE Geomembrane Production Line

=== Base Info ===

=== Description ===

Basic Info.

Model NO. HSD Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Don′t Exhaust Automation Automatic Computerized Computerized Product Width Maximum 8000mm Product Thickness 0.2-3mm Transport Package Standard Package Specification ISO9001: 2008 Trademark HSD Origin Qingdao HS Code 8477109000 Production Capacity 30 Units/Year

Product Description

Plastic Film Mulch Extrusion Line Landfill PE Geomembrane Production Line

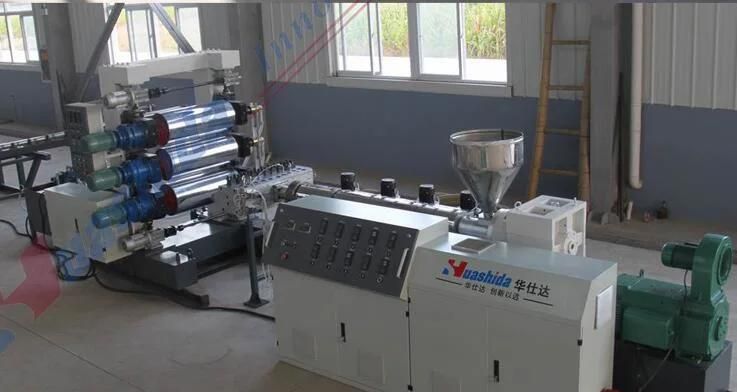

The sheet extrusion lines are the most complete, high performance, reliable sheet lines. We offer them as complete systems in 3 sizes: With a 65mm, 90mm, or 120mm extruder to produce what the capacity you need.



The single screw extruder with good motor, digital controls, vacuum venting, screen changer, gear box, and a flexible lip die. The extruder also can be equipped with the PLC/PCC control system, the specially design screw for HIPS, PP, and PET.

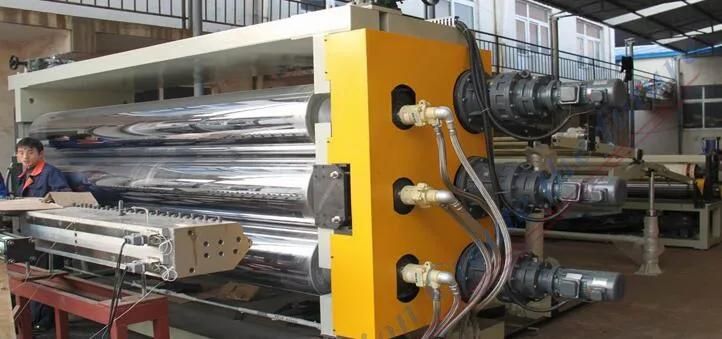

The sheet take-offs (Three rolls calender) feature three hard surface polishing rolls with flawless mirror chrome plating, designed for the highest efficiency heat transfer. Each roll is equipped with an individual, built-in, high volume pressurized water temperature control system. The sheet take-offs also includes two shaft winder.



Every lines include an edge trim system.

Extruder	Sheet Width	Sheet Thickness	Capacity	Total Power	Dimension
SJ65/30	Max. 800mm	0.2-3mm	150Kg/h	100Kw	18× 2× 2.5
SJ90/30(33)	Max. 1200mm	3-15mm	280-300Kg/h	150Kw	24× 2× 2.5
SJ120/30(33)	Max. 3000mm	5-20mm	500Kg/h	250Kw	20× 4× 2.5
