Portable Metal Laser Cutting Machines with Big Power

• Laser Visibility：Invisible
• Applicable Material：Nonmetal
• Cooling System：Air Cooling
• Technical Class：Pulse Laser
• Laser Wavelength：Fiber Laser
• Laser Classification：Solid Laser

=== Base Info ===

• Model NO.：CKD-PLMB-20,30,50,60
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Laser Source：30W, for Small Tag Deeply Engraving
• Computer：Optional, USD400
• Marking Scope：100*100mm for Deeply Engraving
• Application Material：Metal and Some Non-Metal
• Control Board：Bjjcz Original
• Shipping Date：3-5 Work Days After Payment
• Transport Package：Wooden Box
• Specification：CE & FDA & AS
• Trademark：CKD LASER
• Origin：Shenzhen, China
• HS Code：8456110090
• Production Capacity：200 Set,Month

=== Description ===

Basic Info.

Model NO. CKD-PLMB-20/30/50/60 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Laser Source 30W, for Small Tag Deeply Engraving Computer Optional, USD400 Marking Scope 100*100mm for Deeply Engraving Application Material Metal and Some Non-Metal Control Board Bjjcz Original Shipping Date 3-5 Work Days After Payment Transport Package Wooden Box Specification CE & FDA & AS Trademark CKD LASER Origin Shenzhen, China HS Code 8456110090 Production Capacity 200 Set/Month

Product Description

Recommend 50W or 60W if used to cutting metal.

Advantages:

* Minimalist, 50Kg after packing
* Self-repair, no after-service trouble
* Alarm after marking, improve efficiency
* More saftey both for user and machine: laser work indicator, power indicator
* Stable voltage, with electricity filter
* Small body with big marking scope
* Multi-fucntion for all kinds of marking content, support cooperating with other machines.
APLLICATION

Electronic products, daily necessities, packaging, gift, craft, auto parts, digital products, communication goods, building materials, electrical appliances, kitchenware, jewelry, sanitary ware, medical apparatus, advertising making, photovoltaic product, commodity, hardware, and so on.

PROCESS MATERIAL
All metal: stainless steel, copper, aluminum, gold, silver, titanium, alloy, etc.
Some non-metal: ABS, PVC, acrylic (non-transparent), ceramic, EP, HDPE, PC, plastic alloy, ink and paint face, etc.

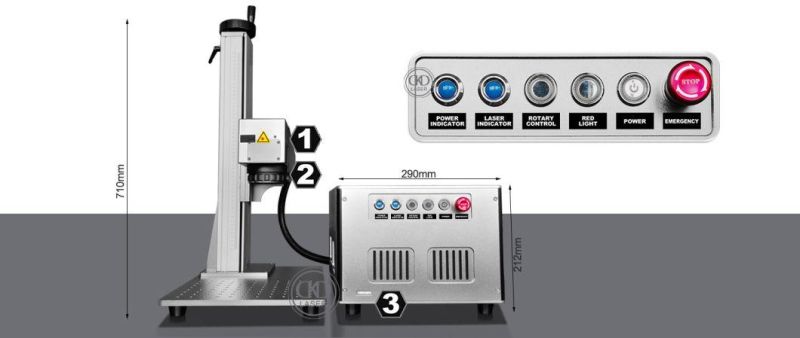

DETIALS

1 High speed galvanometer
2 Lens, scope is optional: 100*100/150*150/200*200/300*300mm
3 Laser cabinet: Humanized design, prevent electrostatic, small size for big power

4 Hand wheel: Small resistance, easy and flexible
5 Scale reader: 0.01mm accuracy, distortionless after long time using
6 Laser path: High accuracy, any vibration can not cause internal accuracy deviation.
7 Position board: Convenient for fix auxiliary tool, such as rotary, X-Y table, position bars and so on.

                                                                                                                   Alarms when the specified processing times are completed

8 Marking scope: small machine, big laser marking scope

9 Fiber cable: 2m long, makes the opertiaon more flexible.

Notice: The fiber cable can't be bent to much, beacuse there is a single of hairline optical fiber inside.

ATTACHMENTS

               Foot-switch                      Power cable                       Rotary                               Lens                             X-Y table

Standard attachments: foot-switch, power cable (plug depends on users' standard), lens on the machine.
Optional attachments: rotary (50/80/100mm chuck diameter), X-Y table, one more lens.

Notice: the machine is with one lens already, this lens is the sencond optional lens for another scope that you need.

CONFIGURATION- normal marking

Parameters	Unit	Data	Data	Data
Type		CKD-PLMN-20	CKD-PLMN-30	CKD-PLMN-50
Laser Average Output Power	W	20	30 (For pet tag deep engrave)	50
Fiber Laser Type		Q-switched	Q-switched	Q-switched
Function		Mark	Mark/Engrave	Mark/Engrave/Cut
Process Material		Metal & Some Non-metal	Metal & Some Non-metal	Metal & Some Non-metal
Color Marking on SS.		By Off-focusing	By Off-focusing	By Off-focusing
Marking Scope Choice	mm	100*100/150*150	100*100/150*150 /200*200	100*100/150*150/200*200 /300*300
Full power frequency range	kHz	30 ~60	30 ~60	50-100
Frequency adjustable range	kHz	30 ~60	30 ~60	50-100
Pulse Width	ns	110 ~140	110-130	120-150
Life-span of Fiber Laser Module	hrs	≥100,000	≥100,000	≥100,000
Temperature of Operation Environment	ºC	0-40	0-40	0-40
Cooling Mode		Air Cooling	Air Cooling	Air Cooling
Marking Software		With, EzCad2	With, EzCad2	With, EzCad2
Computer		Optional	Optional	Optional
Computer System		Windows 7/8/10	Windows 7/8/10	Windows 7/8/10
Power Source Requirement		220V,50Kz / 110V, 60Hz	220V,50Kz / 110V, 60Hz	220V,50Kz / 110V, 60Hz
Packing Size	cm	65*44*55, 1/2 machine 76*28*27, 2/2 machine	65*44*55, 1/2 machine 76*28*27, 2/2 machine	65*44*55, 1/2 machine 76*28*27, 2/2 machine
Gross Weight	Kg	50	50	50

CONFIGURATION- color marking

Parameters	Unit	Data	Data	Data
Type		CKD-PLMN-20	CKD-PLMN-30	CKD-PLMN-60
Laser Average Output Power	W	20	30	60
Fiber Laser Type		MOPA	MOPA	MOPA
Function		Mark/Peal	Mark/Peal/Engrave	Mark/Peal/Engrave/Cut
Process Material		Metal & Some Non-metal	Metal & Some Non-metal	Metal & Some Non-metal
Color Marking on SS.		Easier than normal marking	Easier than normal marking	Easier than normal marking
Full power frequency range	kHz	25 ~ 4000	31-2000	40-1200
Frequency adjustable range	kHz	1 ~ 4000	1-2000	1 ~ 4000
Pulse Width	ns	2 ~ 350	2-250	2-500
Marking Scope Choice	mm	100*100/150*150	100*100/150*150 /200*200	100*100/150*150/200*200 /300*300
Life-span of Fiber Laser Module	hrs	≥100,000	≥100,000	≥100,000
Temperature of Operation Environment	ºC	0-40	0-40	0-40
Cooling Mode		Air Cooling	Air Cooling	Air Cooling
Marking Software		With, EzCad2	With, EzCad2	With, EzCad2
Computer		Optional	Optional	Optional
Computer System		Windows 7/8/10	Windows 7/8/10	Windows 7/8/10
Power Source Requirement		220V,50Kz / 110V, 60Hz	220V,50Kz / 110V, 60Hz	220V,50Kz / 110V, 60Hz
Packing Size	cm	65*44*55, 1/2 machine 76*28*27, 2/2 machine	65*44*55, 1/2 machine 76*28*27, 2/2 machine	65*44*55, 1/2 machine 76*28*27, 2/2 machine
Gross Weight	Kg	50	50	50

CERTIFICATES

PACKING & SHIPPING
* Packed by two cartons, 50Kg total, easy shipping and fast shipping, door to door!
