Tilting Electromagnetism Heat Jacket Kettle

• Power Source：Electric
• Process：Thermal Processing
• Automatic Grade：Semi-Automatic
• Type：Mix Filling Machines
• Voltage：380V
• Customized：Customized

=== Base Info ===

• Model NO.：100L-500L
• Material：SS304, SS316L
• Transport Package：Wooden Box
• Specification：50L-500L
• Trademark：Tianlong
• Origin：Wenzhou, China
• Production Capacity：1000 Sets Per Week

=== Description ===
Volume L100200300400500Main Body Diameter800mm900mm1000mm1100mm1200mmSize L*W*H1700*1400*15501900*1800*16001950*1850*15502000*1950*16502050*2000*1750Mixing TypePlanet/ScraperRising Arm TypeAuto/HydraulicHeating TypeElectromagnetism/gas
Application :
Applied for cooking food such as sugar, cakes, drinks , conserve , jam etc. and used in the industry such as , brewery,wine, pharmaceutical ,dairy , chemical etc.

Principle :

Eelectromagnetism heating : fast heat up , no naked flame , no smoke, won't explosion , no harmful gas , save energy , safety .
Heat efficiency can reach 98% . Outside the cooker is not in high temperature in case any scald .

Structure :

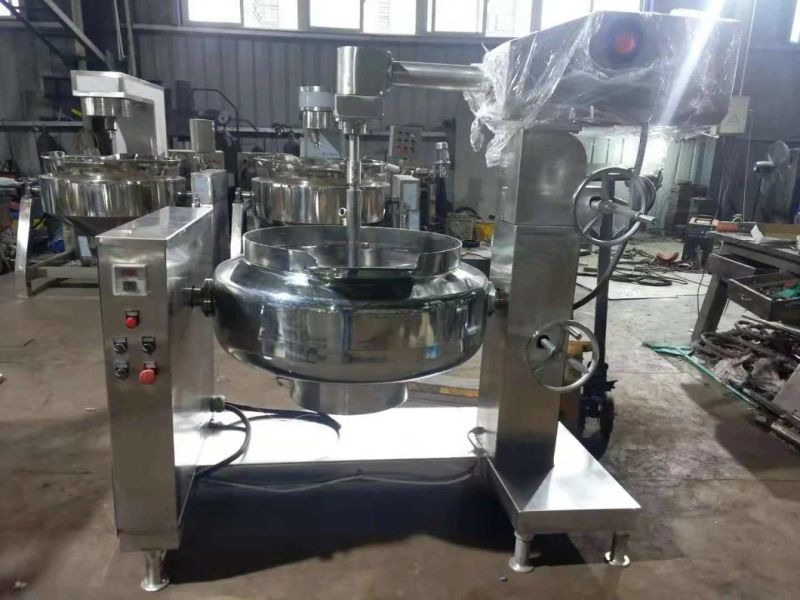

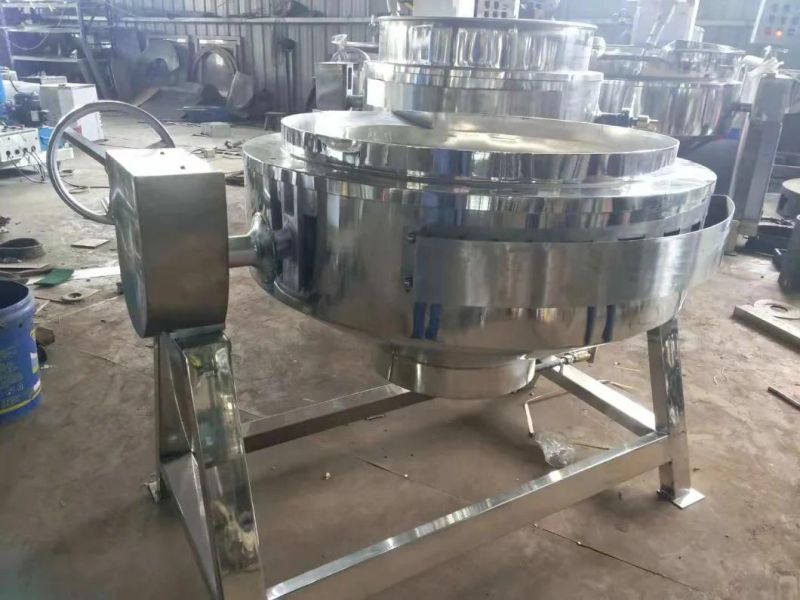

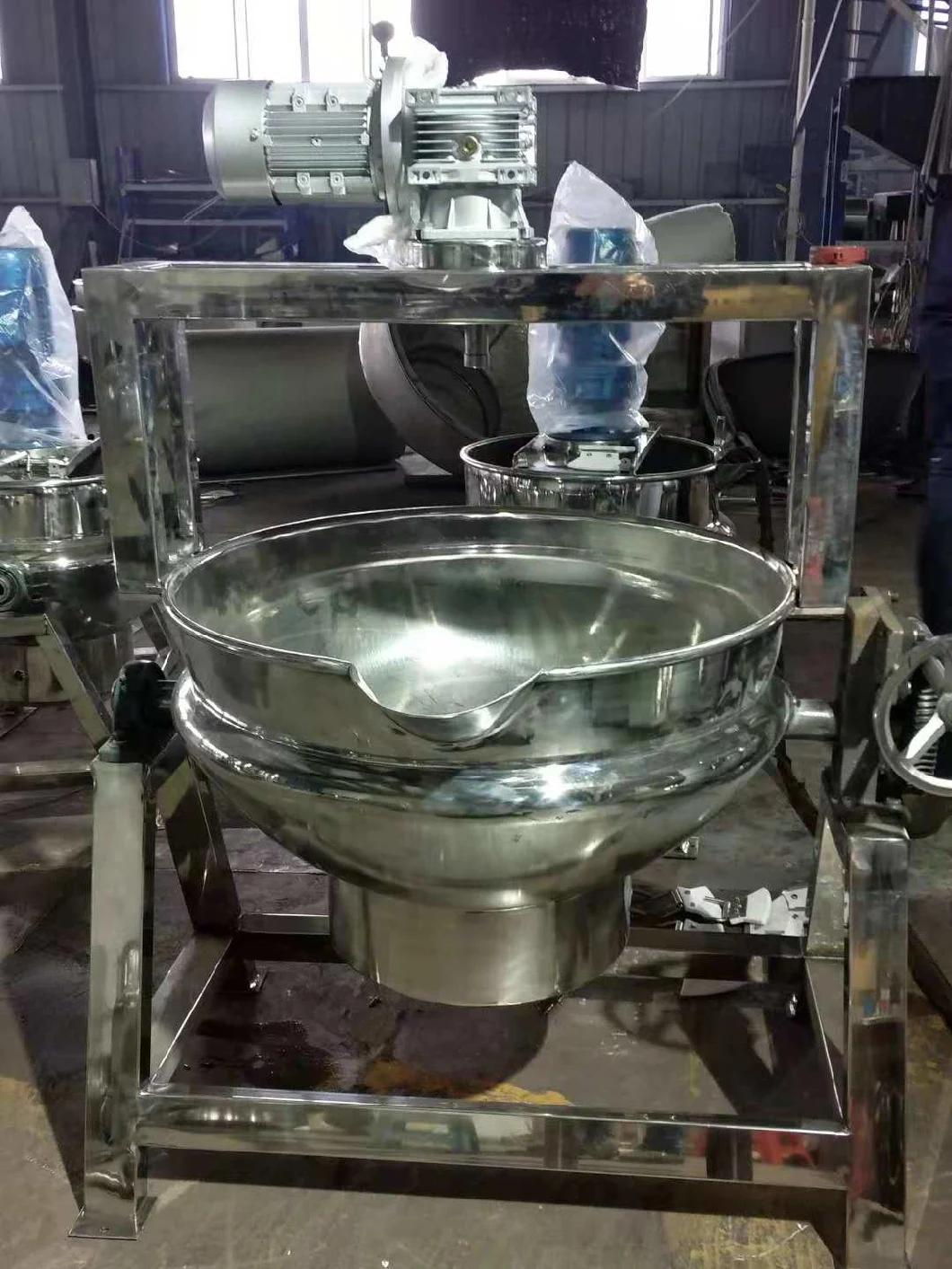

The equipment consist of cooker body , frame , mixer , heating system , adjustable speed regulator , mixing shaft, tilting system

The dome end is one time fast pressuring , there is very tiny error on sizes .
The scraper will be highly fitted with cooker body , so the food can be scraped thoroughly , and won't be pasted .

The scraper adopts high strength PTFE, can bear high temperature , non-toxic,food grade .

PLC auto control , can better control the mixing time and mixing style .

Manual tilt discharge food .
