PVC/WPC Crust Foam Board Extruder/Making Machine (SJSZ-80/156)

Shanghai Ace Superhard Tool Co., Ltd / 2022-07-04

PVC/WPC Crust Foam Board Extruder/Making Machine (SJSZ-80/156)

=== Base Info ===

=== Description ===

Basic Info.

Model NO. SJSZ-80/156 Customized Customized Condition New Power Supply 380V Three Phase Control System PLC Control System Material Stailness Steel Transport Package PE Film and Wooden Package Specification ISO9000 ISO2000 CE Trademark JINFUXIN Origin Qingdao, China HS Code 84775900 Production Capacity 65sets/Year

Product Description

Product Description
Competitive WPC Crust Foam Board Machine with CE and ISO9001 Certification(SJSZ-80/156)

Specifications
1, Building WPC Board Machine
2, Thickness: 3-30mm
3, Width: 1220mm
4, CE, ISO9001

Main Technique Parameter
1, Conical double screw extruder SJSZ-80/156

A) Output: 300-400kg/h
B) Transmission system:
High torque output vertical reducer gear box
Structure: Vertical
Provided with outside-circulation cooling system
Imported thrust bearing and high-torque output
Material of Gear: 20CrMnTi, with gear grinding technical treatment and cementite

2. Mold
A) Structure: Special design for PVC WPC board
B) Width of die: 1400mm
C)Thickness: 12-20mm
D) Material: 5CrNiMo, high quality alloy

3, Vacuum calibrating and forming table
Max. Calibrating width: 1450mm
Calibrating table length: 2000mm
Vacuum pump power: 5.5kw*2 units
Max. Exhausting volume: 80m3/min
Water pump power: 4kw

4, Cooling bracket
A) Total length of roller bracket 5000mm
B) Cooling Roller
Diameter: Ø 63mm
Length: 1320mm

5, Haul-off unit
Max. Pulling width: 1450mm
Max pulling thickness: 20mm
Pair roller qty: 7 pairs
Driven motor power: 5.5kw

6, Transverse cutting bracket

Rack type synchronize pressing unit
Special design flat cutting motor: 2.2kW
With non-pole cylinder left and right moving system

After-sale service and technology:

(1)the supplier provide service manual and maintenance instruction of main electric
Appliance, limb, usage manual of equipment. We also supply water, electricity, gas of
Equipment and installation drawing.

(2)the supplier is responsible for installation, debugging and training, but the air tickets, Insurance, eating, housing and every day 50 USD for each engineer will be borned by The buyers. We will realize guarantee of repair; Replacement and refund of substandard Products within one year after the machine leaves factory. And half a year for electric Parts. Fittings of the machine will be supplied at preferential price after one year.
ComponentsAmount
1,Conical double screw extruder SJSZ-80/1561 set
2,Extruder Mould1 set
3,Vacuum calibrating and forming table1 set
4,ZS-1450 Cooling bracket1 set
5,Haul-off unit1 set
6, Transverse cutting bracket1 set
7, Dropper for the finished product1 set
8, Control system1 set

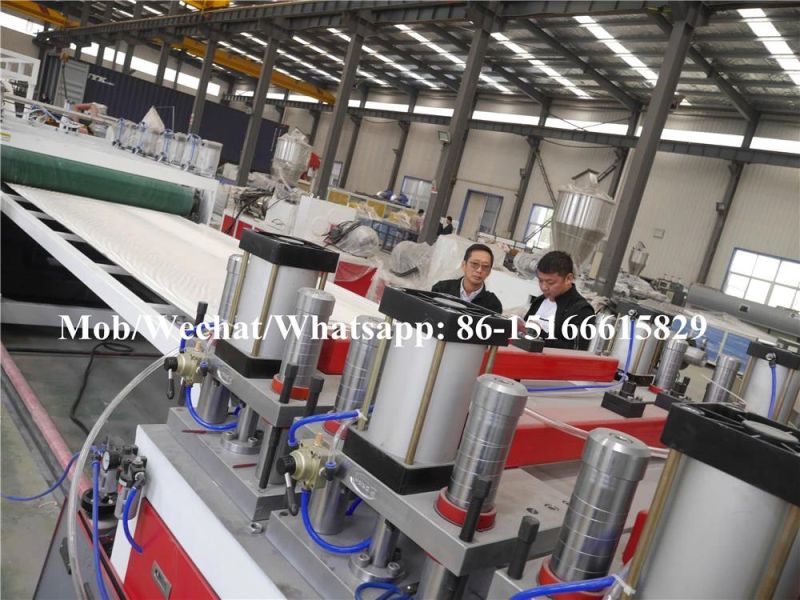

PVC/WPC Crust Foam Board Extruder/Making Machine (SJSZ-80/156)
