Plastic Extruder, Single Plastic Extruder Machine

=== Base Info ===

=== Description ===
Conical twin screw extruderSpecification/ModelSJZ45/90SJZ51/105SJZ65/132SJZ80/156SJZ92/188Screw diameter  45/9051/105  65/132  80/156  92/188Ratitional speed of screw  1-45rpm  1-45.5rpm  1-38rpm  1-36.9rpm1-34.5rpm Main motor power  15kw22kw  37kw  55kw   110kwBarrel heating power  9.6kw11.5kw  24kw36kw88kw Production capacity  70kg/h  120kg/h250kg/h  360kg/h1000kg/h Weight  2500kg  3000kg4000kg 5000kg   5500kg
Photos of twin screw extruder machine:



Single Screw Extruder:
Wedo single screw extruder can extrude PP.PE pipe at high speed by changing special barrel.
Computer control or conventional control is optional.
According to customer's requirements, most reasonable screw can be made so as to achieve best plasticity state and material quality.
The screw is made by high precision special digital screw miller; extruding property can be highly harmonized.
It has firstly introduced advanced technique of producing screws with variable pitch and depth, so that the material can be more softly sheared and cut.
The distribution box is specially designed, pull force bearing is fully imported, and the drive life span can be prolonged.
It can bear larger extruding pressure.

Characteristic of Wedo single screw extruder
1. SJ series single screw Extruder is specially used for thermo plastic like PE PP PB PS PC ABS PMMA.Also can produce the pipe,sheet,board ,bar and extrusion blowing product.
2. Special designed screw and barrel for low abrasion high fusion stable fusion process.
3. Advanced electric control system,different section trouble alarm.
4. Water cooling screw and feeding grooved sleeve gurantee extrusion stable.
5. High performance gearbox system for torque distribution.
6. High efficient and low noise cooling system to make sure low noise working.

Technical Parameter for Wedo single screw extruder :

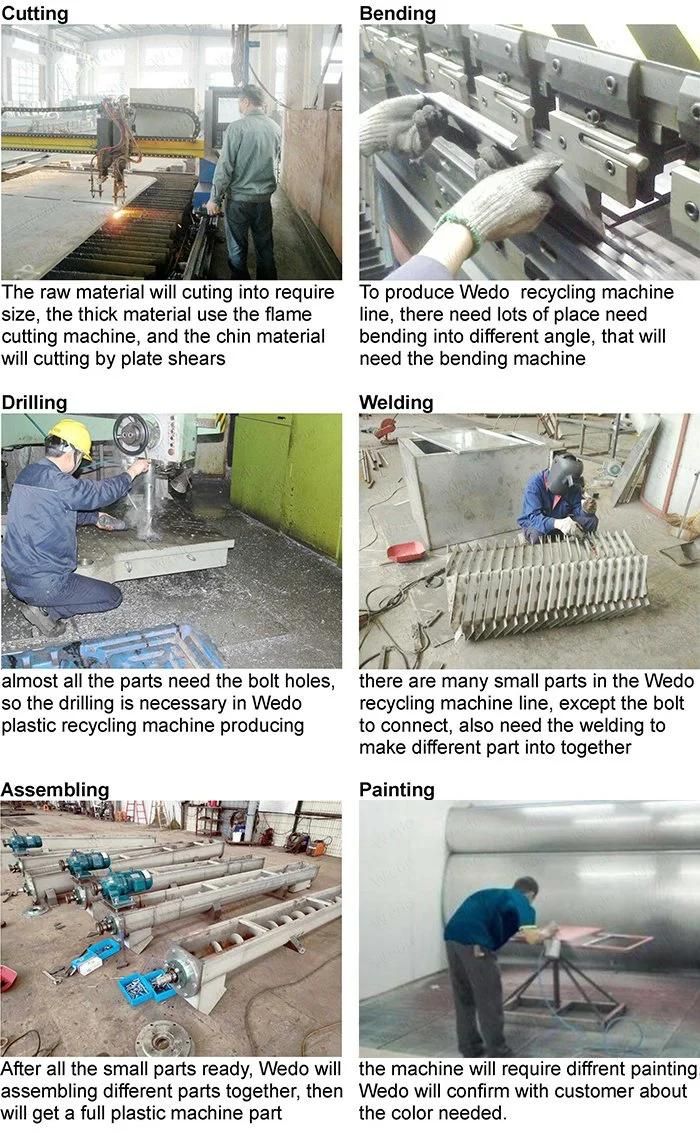

 producing before packing and shipping, this ensure the plastic recycling machine will delivery in good quality, and custerm will get good machine.


Wedo service:
We do best service for you in PP PE single screw extruder, PVC conical twin-screw extruder machine
