Energy Drink Processing Production Machines / Juice Making Machine / Carbonated Mixing ...

• Customized：Customized
• Certification：CE
• Scale：Medium
• Automation：Automatic
• Principle：High Temperature
• Structure：Plate

=== Base Info ===

• Model NO.：SJ
• Operation：Continuous
• Energy：Heat Sterilization
• Property：Juice Sterilizing
• Type：High Voltage Electric Field Sterilization Equipment
• Processing Machine：Juice Sterilizing Machine
• Capacity：1000-10000lph
• Material：SUS304,316
• Heating Manner：Electric Heating , Steam Heating , Heating Oil
• Pipe Connection：Will Be Finished in Factory
• Sterilizing Liquid：Fresh Juice , Milk (No Pulp)
• More Function：Customize
• Transport Package：Wooden Case
• Specification：Customize
• Trademark：QC
• Origin：Jiangsu, China
• HS Code：8438800000
• Production Capacity：20 Sets Per Month

=== Description ===

Type

QHS 1500

QHS - 3000

QHS 4000

QHS - 5000

QHS - 6000

Production Capacity (kg/h)



1000 - 1500



2500 - 3000



2000 - 4000



2500 - 5000



4000 - 6000

Adjust Proportion of Syrup and Water



1:3 1:10



1:3 1:10



1:3 1:10



1:3 1:10



1:3 1:10

Gas Qty

1.5-2.5

2.5

2.5

2.5

2.5

Cool Water Entry Temperature ()



0 - 5

Working Pressure (MPa)



0.05 0.15

Storage Tank Working Pressure (MPa)



0.2 0.5

Power (KW)

1.5

3.7

4.05

5.6

6.2

Dimension (mm)

900 * 700

*2000

1720 * 1140

*2100

1860 * 1300

*2100

1960 * 1400

*2150

2020 * 1500

*2200

Weight (kg)

500

1100

1300

1600

1800

Application

1. This mixer adopts advances gas-liquid mixing device,can mix syrup,water and CO2 gas at the same time for filling machine.

2, Also it can apply to thin beer,aerate for beer and produce sparking wine.

3, This mixer is advances in technology,even in mixing,reliable in performance,compact in structure,easy in operation.

4, It adopts foreign advanced technology-static mixer to lighten water layer, increase carbonizing time, assure mixing result and deoxying.

5, It adopts high-quality water pump and SIEMENS electrical equipment and other parts to form complete automatic control system.

6, It has coordinating action, beautiful appearance, convenient washing, high automatic level and other advantages. It is suitable for mixing all kinds of drink, such as soda water, fruit juice, cola and other soft and hard drink.

7, It is suitable for aerated beverage firm of large,middle or small scale.



Detailed photos on site











Customized service

We can customize the machine according to all the customers(such as material, power, filling type, bottle size, and so on), at the same time, our engineers will also give professional advice to help customers better establish the ideal factory.


Complete solution of JUICE PRODUCTION LINE

1) Water treatment equipment---RO purified equipment, UF purified equipment, Sand filter, Carbon filter, Water softner, Sea Water treatment.

2) Filling Machine---3 in 1 Washing filling capping---for your water, carbonated drink, juice, wine, vinegar, milk, tea and so on.

----150 to 2000ml bottle, 3.5-10L,11- 20L bottle (3-6gallon bottle)

---PET bottle, Glass bottle, PP bottle and Can

----Screw cap, Aluminum cap, Grown cap and three (four) twist caps etc.

3) Labeling Machine---Stick label, Shrink sleeve label, Hot melt Opp labels. Wet glue label

4) Printer , Manual code printer , Inkjet printer , Laser printer

5) Packing Machine----Shrink film, Cartons packing machine

6) Bottle Blowing Machine--- for making plastic bottle

7) Injection Molding Machine---for your cap and perform


Another production machines


Plate UHT sterilizer:
It is mainly used for heating and sterilizing sensitive liquids such as fruit juice, tea and alcohol etc...The sterilization temperature is 85-135ºC, the capacity is 1-15T. The control components are all internationally famous brands. Pipe UHT sterilizer:
It is mainly used for high viscosity, large flesh and acidic drinks, such as fresh juice, jam and coffee etc...., The sterilization temperature is 80-137ºC, the capacity is 1-15T, The control components are all internationally famous brands. High pressure homogenizer:
T means under the triple action of extrusion, strong impact and pressure-loss expansion, make the liquid is more uniformly mixed with each other, so that the liquid taste is more soft, the capacity is 1-10T. Vacuum degasser:
It is mainly composed of degassing chamber, condenser, vacuum pump etc. It is widely used in fresh juice, tea and milk drinks etc. It can remove air (oxygen) from liquid, inhibit browning and oxidation of substances, prevent quality degradation, remove particulate gas, prevent foaming from affecting sterilization, reduce corrosion to the inner wall of container, and play an anti-corrosion role. UHT instantaneous sterilizer:
It is suitable for instantaneous sterilization of liquid materials, such as fruit juice, fresh milk, soy milk and alcohol drink etc. It has such features as high efficiency, energy saving, simple operation and good sterilization effect etc. CIP(Clean-in-place) System:
It is mainly used for cleaning equipment and pipes such as beverage, juice, beer and dairy products etc.
CIP uses centrifugal pump to convoy cleaning liquid into the material pipeline and equipment for full closed cycle cleaning, reducing labor depth and ensuring the quality of beverages.

CIP Technical parameter

Operation temperature	60-138ºC
Cleaning time	12min/time
Sequence of cleaning liquids	Clear water---alkali liquid---acid liquid---clear water
Material name	2% Nitric acid liquid, 2% caustic alkali liquid, 2% clear water
Outline dimensions	3240*1740*1950mm
Steam pressure	0.3-0.7MPa
Motor power	2.2kw
Centrifugal pump flow	10m3/h
Centrifugal pump lift	40m
Equipment weight	1050kg

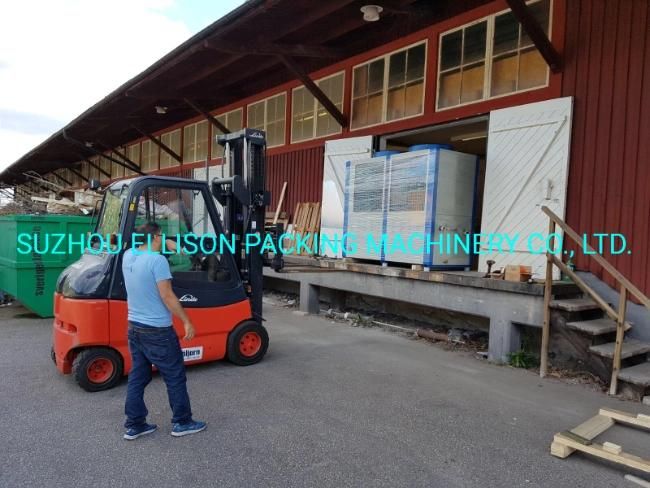

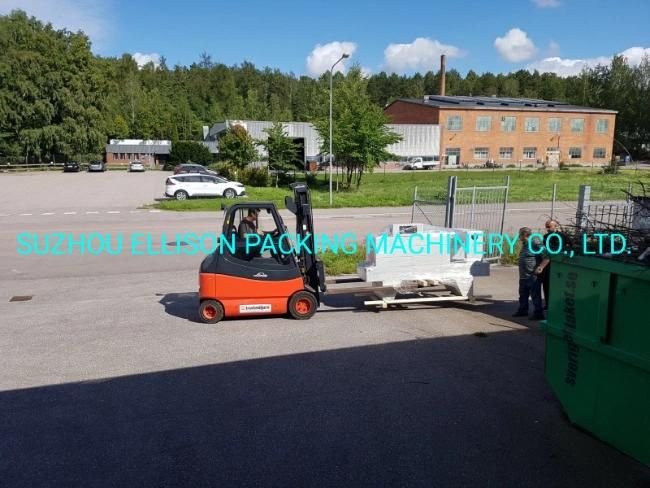

Shipping & Cooperation brand
