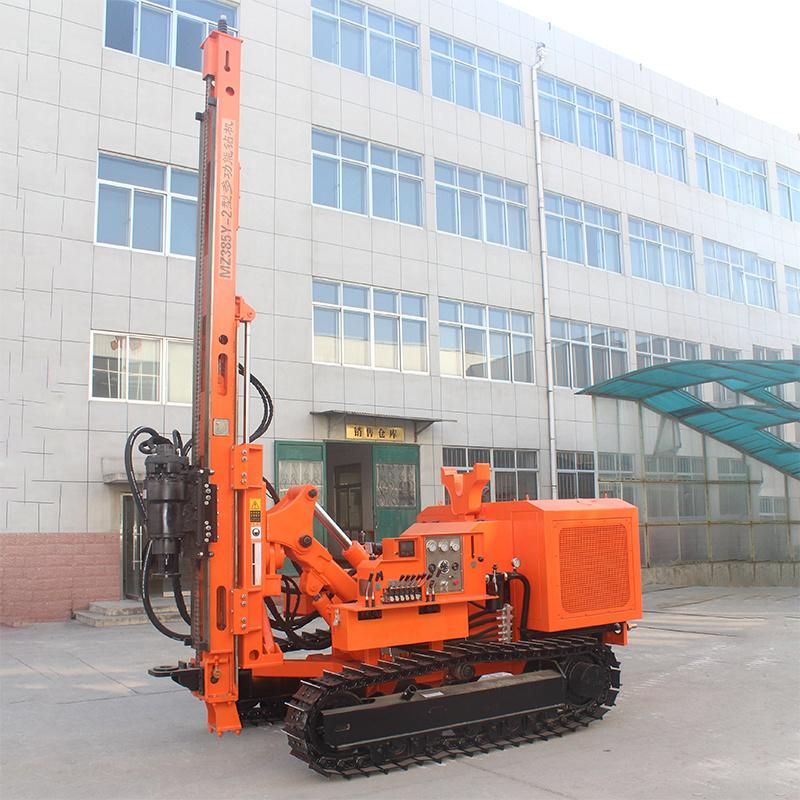

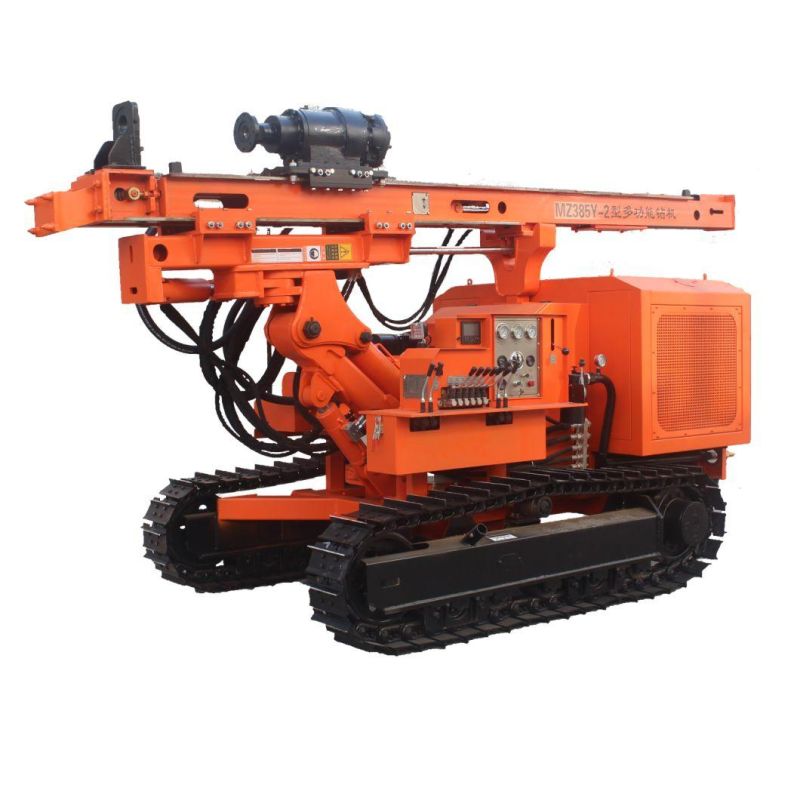

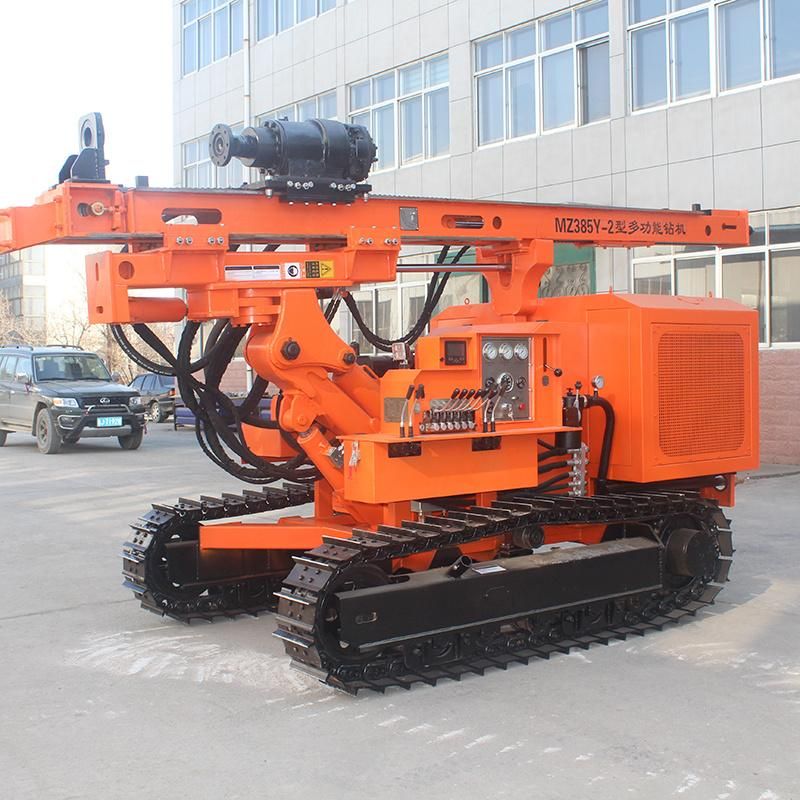

Mining Hydraulic Crawler Rock Quarry Gold Mine Blasting Hole Drilling Rig
Wenzhou Daba Machinery Co., Ltd. / 2022-06-23
=== Base Info ===
=== Description ===
Air pressure(Mpa)
0.7-1.6(medium pressure)
1.6-2.46(high pressure)
Pipe diameter(mm)
76/89/102
For rock(F)
6-20
Bore diameter(screw)(mm)
Max 400
Bore depth(m)
0-30
Screw pipe diameter(mm)
130-400
Once promotion(mm)
3200
Skid pitch(°)
120
Swinging angle of skid(°)
Left Right Total 40
Boom swing angle(°)
Left Right Total 45
Rotation Speed(r/min)
0-110
Host Power (Kw)
84
Climb ability(°)
35
Dimension(L*W*H)(mm)
5300*1970*2635
weight(Kg)
5900
Walk speed(km/h)
0-2.5
Company Profile
Shipping and Package
Customer Visit
FAQQ1: What's your delivery time?
A: 15 days to produce, within 3 days if in stock.
Q2: What's methods of payments are accepted?
A: We agree T/T ,L/C , One touch , West Union ,Money Gram ,Paypal.
Q3: What about the shipments and package?
A: 40' container for 2 sets, 20' container for 1 set,
Machine in nude packing, spare parts in standard export wooden box.
Q4: Have you got any certificate?
A:We have got ISO,CE certificate.
Q5: How to control the quality?
A: We will control the quality by ISO and CE requests.
Q6: Do you have after-sale service and warranty service ?
A: Yes, we have.We can supply instruction for operation and maintenance.If necessary, we can send our engineer to repair the machine in your company.
Warranty is one year for the machine.
Contact : Tinayu
