China 1000W 1500W 2000W Industrial Portable Handheld CNC Auto Fiber Laser Welding Machine Price for Jewelry, Aluminum, Stainless Steel

• Application：Biomedicine, Electronic Industry, Automotive Industry, Powder Metallurgy, Manufacturing Industry
• Technical Class：Pulse Laser
• Control：Automatic
• Power Density：Deep Fusion Welding
• Laser Classification：Optical Fiber Laser
• Type：Portable Welding Machine

=== Base Info ===

• Input Power：AC220V,380V
• Cooling Type：Water Cooling
• Welding Depth：0.2-1.5mm 0.2-2mm 0.2-3mm
• Transport Package：Wooden Case
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：5000 Sets,Year

=== Description ===

Basic Info.

Input Power AC220V/380V Cooling Type Water Cooling Welding Depth 0.2-1.5mm 0.2-2mm 0.2-3mm Transport Package Wooden Case Origin Shandong HS Code 8456110090 Production Capacity 5000 Sets/Year

Product Description

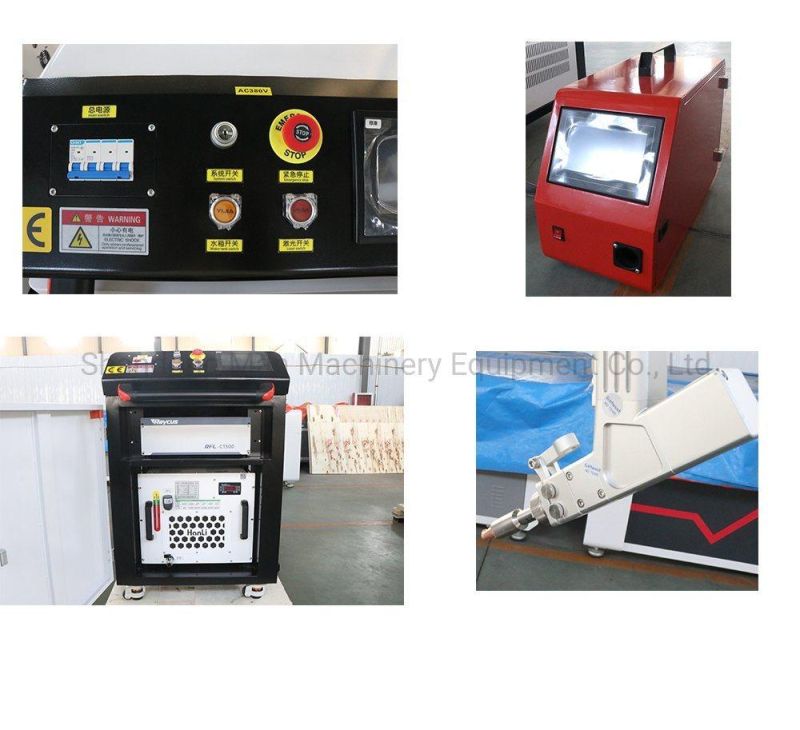

China 1000W 1500W 2000W Industrial Portable Handheld CNC Auto Fiber Laser Welding Machine Price for Jewelry, Aluminum, Stainless Steel1. Picture for Welding Machines

Operation mode:
Manual welding, with simple fixture, flexible and simple operation

Electricity demand:
220/380VAC, 50/60Hz

Scope of application
Cabinet, kitchen, stair, elevator, shelf, door and window guardrail, communication sheet metal shell, fan, stainless steel fixture and other industries have complex and irregular welding procedures. The welding of thin stainless steel plate, iron plate, galvanized plate and other metal materials can perfectly replace the traditional argon arc welding, secondary arc welding, electric welding and other processes.


2. Main Parameters Of Welding Machines

Maximum laser power	1000W	1500W	2000W
Laser wavelength	1070±10nm	1070±10nm	1070±10nm
Pulse width	Continuous light output	Continuous light output	Continuous light output
Number of optical fiber output	1 line	1 line	1 line
Welding depth	0.2-1.5mm	0.2-2mm	0.2-3mm
Total power	<6KW	<8KW	<10KW
Power input	AC220V+10%/3P+PE	AC220V+10%/3P+PE	AC380V+10%/3P+PE
Host size(mm)	480W*850D*224H	600W*1400D*1050H	600W*1400D*1050H
Cooling mode	water-cooling	water-cooling	water-cooling
Optical fiber model	QBH	QBH	QBH
Fiber diameter	50um	50um	50um
Fiber length	10m	10m	10m

3.Main Features Of Welding Machines


Company Team & Exhibition
