SGS Multifunctional Chocolate Coating Enrobing Machine

• After-sales Service：Online
• Warranty：1 Year
• Certification：CE, ISO9001
• Power Source：Electric
• Process：Mild Processing
• Automatic Grade：Automatic

=== Base Info ===

• Model NO.：TYJ 600
• Application：Candy, Chocolate, Biscuit, Donut
• Customized：Customized
• Layout：Horizental
• Structure：Fixed
• Driven Type：Electric
• Control Type：PLC Control
• Certificates：SGS, CE, ISO9001
• Mesh Belt Speed：0-5m,Min
• Conveyor Belt Speed：0.6m,Min
• Cooling Tunnel Temperature：0-10 Degrees Centigrade
• Material：SUS304
• Transport Package：Standard Wooden Case
• Specification：CE, ISO9001-2008
• Trademark：Gusu Machinery
• Origin：China
• HS Code：8438200000
• Production Capacity：5000 Sets,Month

=== Description ===

Basic Info.

Model NO. TYJ 600 Application Candy, Chocolate, Biscuit, Donut Customized Customized Layout Horizental Structure Fixed Driven Type Electric Control Type PLC Control Certificates SGS, CE, ISO9001 Mesh Belt Speed 0-5m/Min Conveyor Belt Speed 0.6m/Min Cooling Tunnel Temperature 0-10 Degrees Centigrade Material SUS304 Transport Package Standard Wooden Case Specification CE, ISO9001-2008 Trademark Gusu Machinery Origin China HS Code 8438200000 Production Capacity 5000 Sets/Month

Product Description

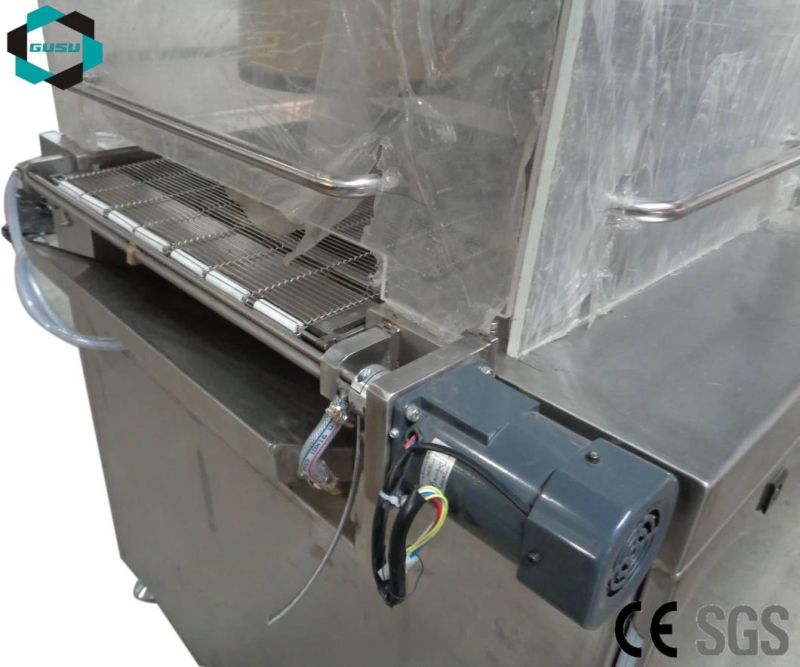

Chocolate Enrober Machine

Product Description
TYJ Series Chocolate Enrobing Machines used for enrobing chocolate on the surface of products such as candies, cakes, and biscuits, etc. you can make various unique flavors.

Features:
1) Widths from 400mm to 2000mm;
2) Easy maintenance and cleaning of the chocolate containment tank, with removable mesh conveyor;
3) High speed air-blowers adjustable by inverter group, to remove chocolate excess;
4) Industrial blower with variable temperature and adjustable height to remove excess chocolate;
5) Adjustable speed vibrational feature to remove excess chocolate;
6) Manufactured with food grade approved materials such as stainless steel and plastics;
7) Bottom only or full coating of products;
8) Easy access to maintenance and clean;
9) Built in stainless steel SUS304.


Technical Parameter

Model	Conveyor Belt Width (mm)	Conveyor Belt Speed (m/min)	Total Power   (Kw)	Cooling Temp.       (ºC)	Weight   (kg)	Outer Dimension(mm)
TYJ400	400	0~6	12.35	0~10	2000	L*1192*1580
TYJ600	550	0~6	24.44	0~10	2300	1240*940*1800
TYJ800	750	0~6	25.44	0~10	2800	L*1400*1800
TYJ900	850	0~6	25.44	0~10	3200	L*1550*1800
TYJ1000	950	0~6	29.84	0~10	3600	L*1650*1800
TYJ1200	1150	0~6	30.84	0~10	4000	L*1850*1800

 Combinatorial Arrangements

1. Automatic feed mechanism which can reduce operation staffs to improve production efficiency.
2. Patterns decorator which can make different colors of curve patterns coated on the surface to improve product level.
3. Material Spreader which can spread crushed peanut, sesame or other nuts granules on the chocolate surface to enhance flavors.



RAQ

1 How to Order
1. Customer send us an inquiry.
2. Confirm machine type, order quantity, price, lead time, payment term etc.
3.Our sales send the Proforma Invoice with company seal.
4. Customer make the payment for deposit and send us Bank receipt.
5. Inform the clients that we have got the payment,and will arrange the production according to your request, inform the estimated time
6. Production products photos will send to you for approval.
7. Clients make payment for balance and Ship the goods .
8. Order is finished when you receive the goods and satisfy with them .
9. Feedback to us about Quality , Service, Market Feedback & Suggestion.And we can do better

2 About after-sell service
Usually machine guarantee time is about 1 year . Within guarantee time . Machine breaking caused bymachine itself design defect , we are responsible for it .we can provided free charge breaking part .If machine breaking caused by humane factor , user need take responsibility for it , we will providedtechnical support .

3 About goods shipping
We have long time working shipping forwarder. We can do our best to send machine to your port safe and quickly.

4 About our online Service
24 hours online to solve any problem .
Your email will be reply within 12 hours .
Your satisfy is our pursuit .sincerely hope our cooperation .
