1-20ton/H Thailand Palm Fruit Oil Extraction Processing Palm Oil Press Machine

• Type：Pressing Machines
• Application：Aplam Fruit
• Voltage：380V
• Appearance：Vertical
• Press Materials：Oil Palm Fruit
• Press Series：Fourth

=== Base Info ===

• Model NO.：1-20t,h
• Condition：New
• Customized：Customized
• Mainly Pressing The：Palm Fruit & Ffb
• All The Palm Oil Pressing Equipment Adop：The Advance Technology in Thailand, Malaysia
• We Can Supply The：Flow Chart, Video and Can Help You Installed
• Steamless Palm Fruit Oil Mill：Have Installation in Thailand, Malaysia
• Palm Oil Milling Equipment Capacity：1t -10tffb,H
• Palm Oil Milling Equipment Adopt：Dry Type Extraction The Palm Oil
• Instalaltion & Test：We Responsible for The Installation & Training
• The Palm Oil Milling Equipment Working：We Can Supply The Working Video
• Company Type：Manufacutre & Distributor
• The Rate of Output Oil：>30%
• Main Market：Thailand, Indosia, Malaysia, Philipiness
• Quality：High Quality Palm Oil Press Machine
• Price：Good Price Palm Oil Press Machine
• Service：Best Service Palm Oil Press Machine
• Transport Package：Wooden Case
• Specification：CE ISO9001
• Trademark：HYPH
• Origin：China
• HS Code：84792000
• Production Capacity：1-10t Ffb,H

=== Description ===

02

CPO Yield per ton

>22%

About 20%

The other yield

Cake meal (for cow feed)

Waste Fibre

03

Water usage

Steam boiler, washing water

Steam boiler, washing water; crude oil clean water which about 1.5 times of crude oil

04

Generate Electricity

Adopts biomass generating electricity, adopts EFB, husk, etc, about 400RP/kwh

Adopts steam generating electricity, big investment, about 800RP/kwh

05

Operation and efficiency

Almost automatic, operating not influence capacity and quality

Complex operating, capacity and quality depend on operating heavily

06

Equipment area

500M2

About 1000M2

07

Installation

About 7 months

Above 1 year

08

Maintenance

About 3-4months check, 2 years change spare parts free

Need pay for spare parts

09

After service

 7*24 hours

Main machines for palm oil press machine

 In conventional milling process, the FFB's are sterilized and the fruitlets stripped off.
The loose fruitlets are then digested and pressed to extract the CPO.
The kernels are separated from the fibrous mesocarp in the press cake and later cracked to obtained CPKO.

Main data for palm oil press machine
Input fresh palm fruit: 1-10 tons / hour
The rate of output oil: > 30%
Palm kernel recovery rate: 90%

Main process for palm oil press machine



Palm Fruit Oil Extraction Processing Equipment Main Pictures



1.Raw materials storage section:
Fresh palm fruit bunch must be first measurement recorded by the pound into the plant, then unloaded to loaded fruit slopes and stored.



2.Sterilizing section:
   The fresh palm fruit bunch are airtight sterilized in sterilizer.The purpose to prevent enzymes broken down, avoiding FFA content in oil further increase; pretreatment peel, prepared for the follow-up processing; pre-conditioning stone, reducing the damage kernel.
This process adopts the different type Boiling vessel for sterilizing the palm fruit. If for small cacpacity ,it directly use waste palm branch or wood for the fuel to reduce down the cost.



3.Threshing section:
The purpose of threshing is the oil palm fruit be separated from the fruit bunch through strong vibration, Threshing equipment is revolving drum thresher.  The oil palm fruit separated be ejected then into the press section. Empty fruit bunch be ejected to the yard from the other side of the revolving drum, or shipped out from the plant as palm orchards slipcover to recycling use, or burning in the locale as fertilizer for agricultural land.



4.Digester & Pressing section:
Oil palm fruit first carry out cooking before pressed, fruit sterilized must be pre-heating for the soft-  pulp, and damage pulp cell structure. Then enter into continuous screw press for pressing.Oil palm fruit pressed is divided into two parts: oil, water, solid impurities mixture and the press cake (fiber and nuclear). Oil, water, solid impurities mixture by the crude oil gutter inflow to oil purification section; press cake by breaking screw conveyor into the fiber- recovery section.



5.CPO Clarification section:
Directly use vertical screen to remove out the sludge ,then use plate filter to remove out the gums from the crude palm oil ,to get the good quality CPO .
this process does not use any water .



6.Finished oil storage and transportation section:
Finished crude oil is stored in storage tanks, the capacity of oil storage tank is two 1000 tons, serve oil shed loading and issuing regularly oil to outside. Finished crude oil generally be stored and transported between at 32 ºC to 40 ºC, in order to prevent overheating, the working temperature of the palm oil should be at 50 ºC to 55 ºC.



7.Fiber separation section:
Press cake broken by breaking screw conveyor and then transported into the fiber separation air net and fiber polishing roller for fiber separating. The fiber material separated are sent to the boiler room as fuel; the stone separated are transported to stone warehouse by pneumatic conveying system for temporary storage.

8.Kernel recovery section:
The stone processes intenerate tempering before broken, the intenerating stone by the corrugated crusher be divided into two or more petal, kernel was released. The broken mixture enters into broken mixture separation system; separation system adopts two stage separation and water separation. Separation shell is sent to the warehouse for temporary storage, and when necessary as boiler room fuel;  the moisture content of separation kernel falls to below 7 percent through the hot air to dry. Dried kernel are sent to kernel storage warehouse for storing.

9. Power generator
The Shell and palm fiber as the  fuel directly used for power generation, which can meet the electricity needs,not need the external power to supply for the project.

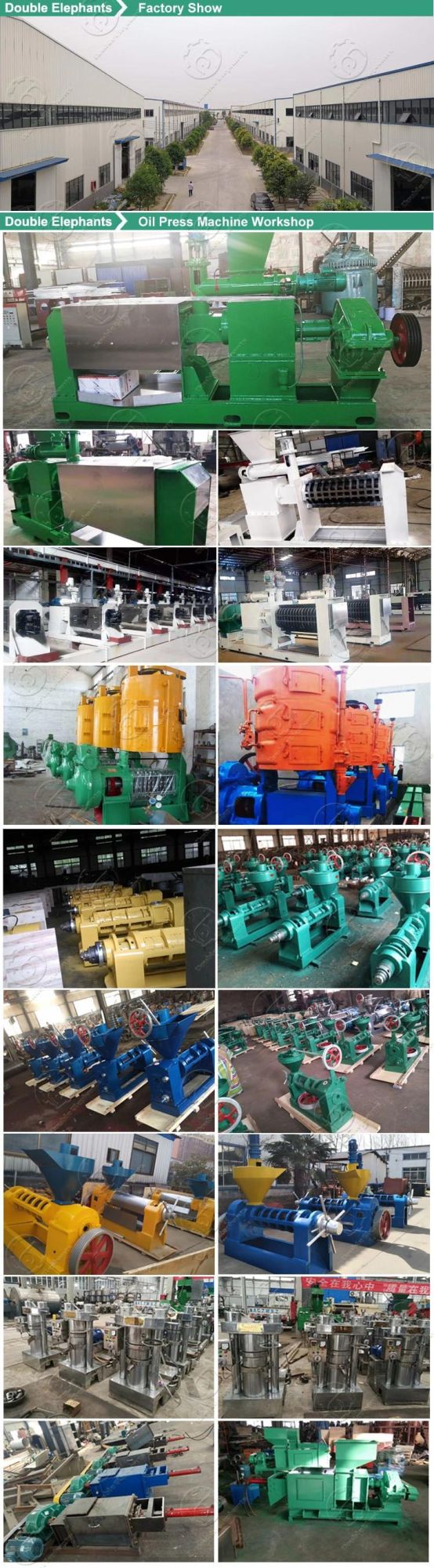

Henan Double Elephants Machinery I/E CO.,LTD
