Plastic Crusher Plastic Shredder/Pet Bottle Crushing Machine Shredder

=== Base Info ===

=== Description ===

Basic Info.

Model NO. Multiple models Automation Automatic Computerized Computerized Certification CE, ISO9001:2008, SGS/BV External Dimensions(mm) 1700*2500*2000mm Transport Package Wooden Package/Film Package/According to Customer Specification CE/ISO9001/SGS Trademark SOYU Origin China HS Code 84778000 Production Capacity 1000sets/Year

Product Description

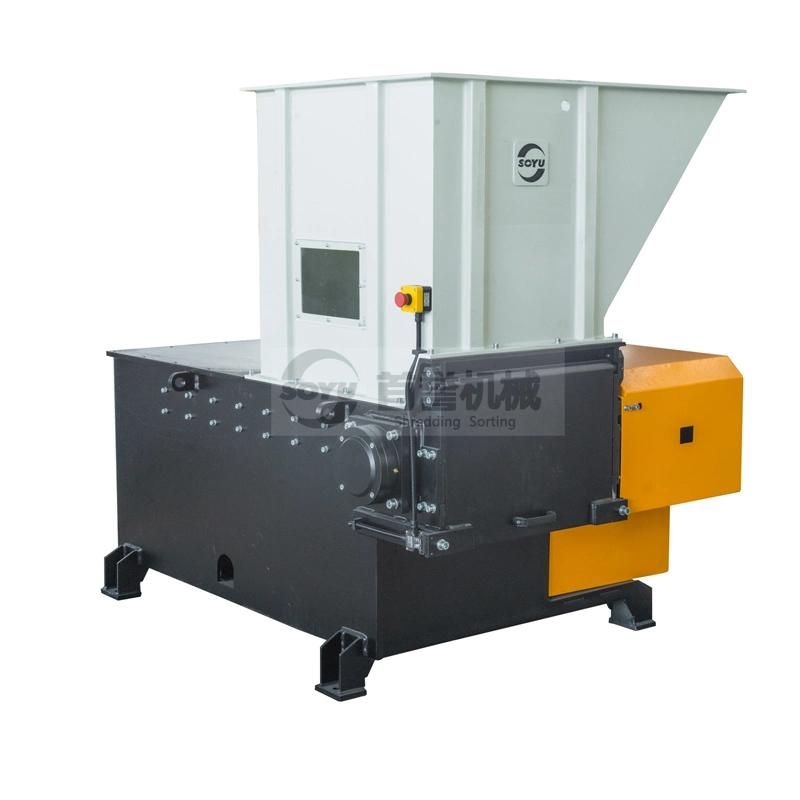

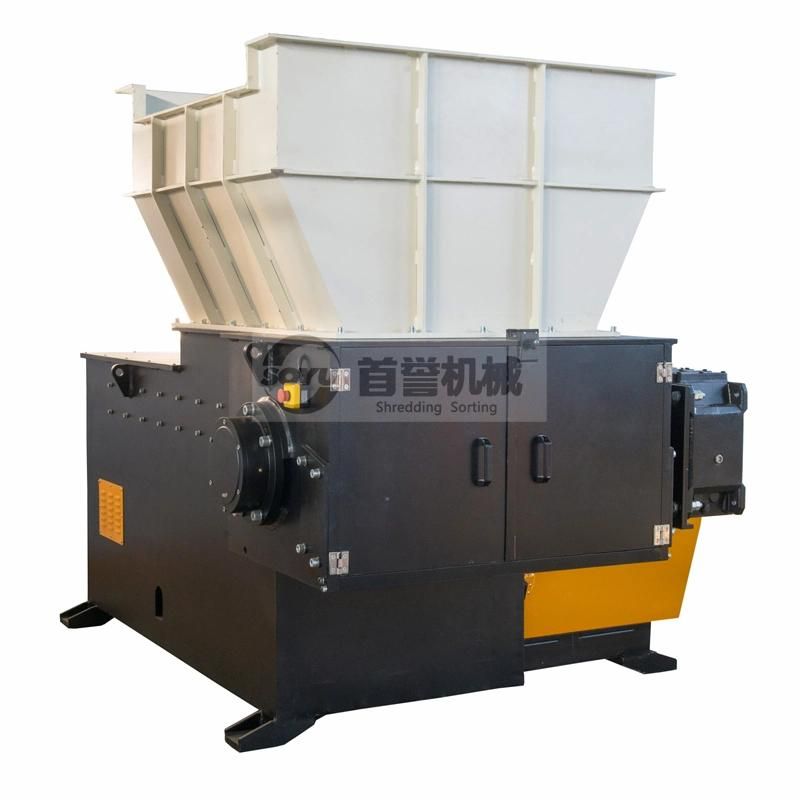

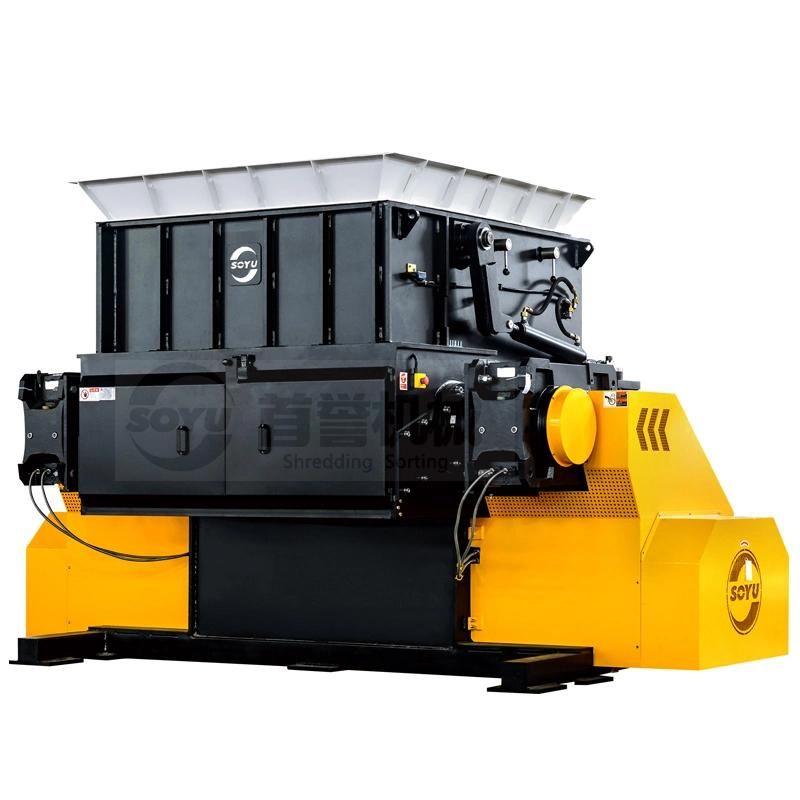

Plastic crusher plastic shredder/Pet bottle crushing machine shredder

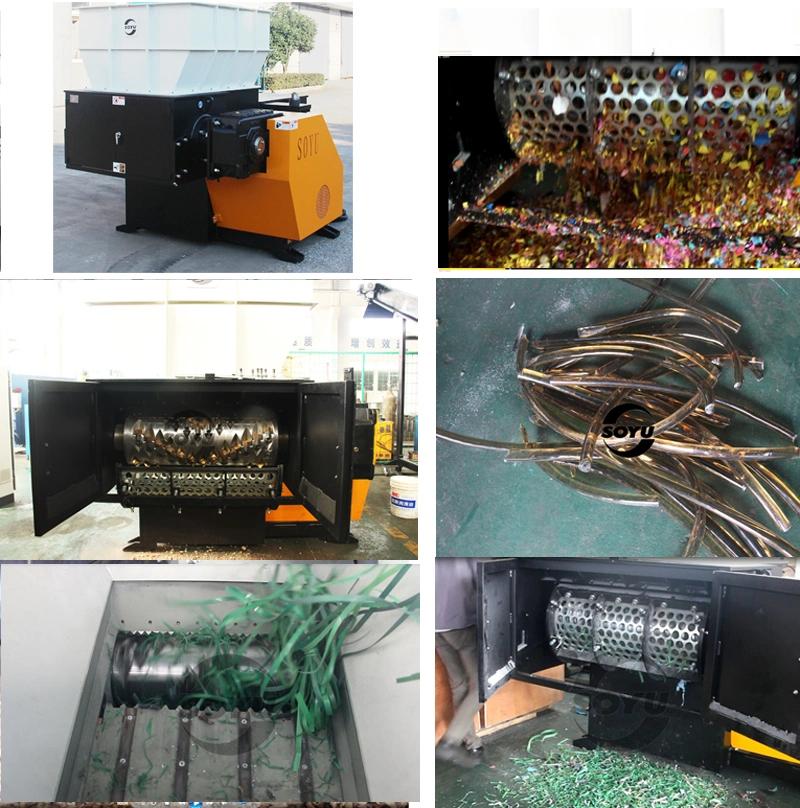

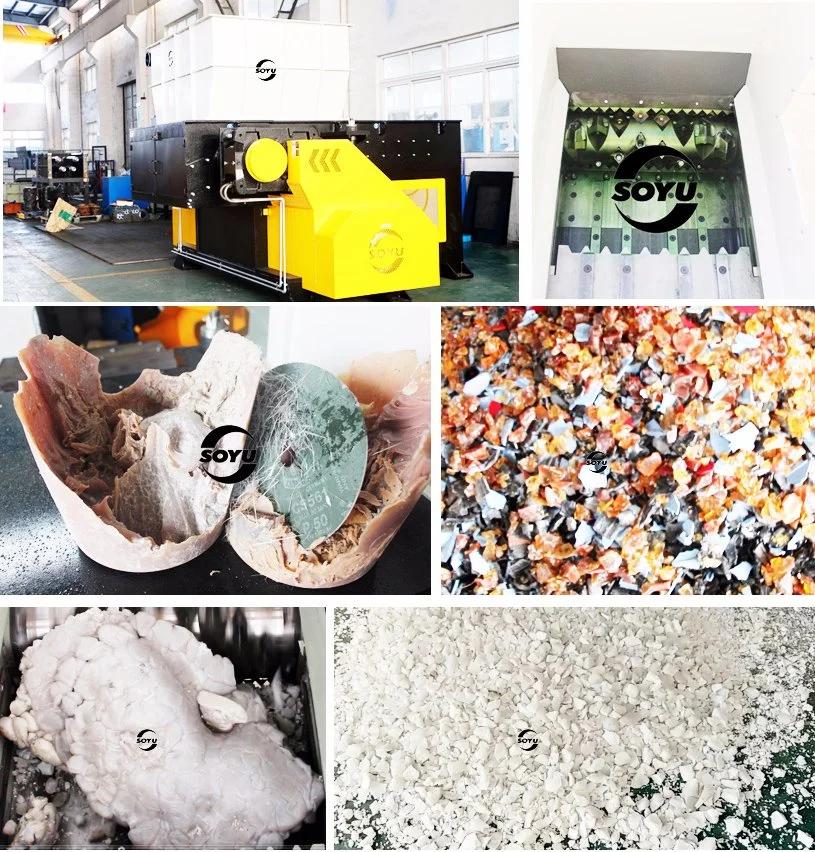

This type of single shaft shredder is the conventional single shaft shredder, applicable to shred solid materials like plastic, rubber, fiber, paper, wood, electrical components and cable which are difficult to shred. For example, the sideline plastics, toe gum, hardboard, electronic board, wood, plastic barrel etc. Clients could select the corresponding model according to the material size and quantity. But the clear situation should be stated to us specially for shredding the ultra hard plastic such as nylon, ABS and PC.
Suitable Shredding Applications:
- plastic lump and plastic block, like PP, PE, PET, PC, ABS, Nylon.
-Plastic pipes
-Film,Woven bags
- Living garbage,
- Medical waste
-Electronic Waste
-Copper Cable,Aluminum Cable with steel
- Aluminum cans
-Wood: Pallet,tree root,solid wood etc
fiber/film
paper/ hardboard
cable
wood
electrical board
pipe
toe gum
plastic barrel

Features:

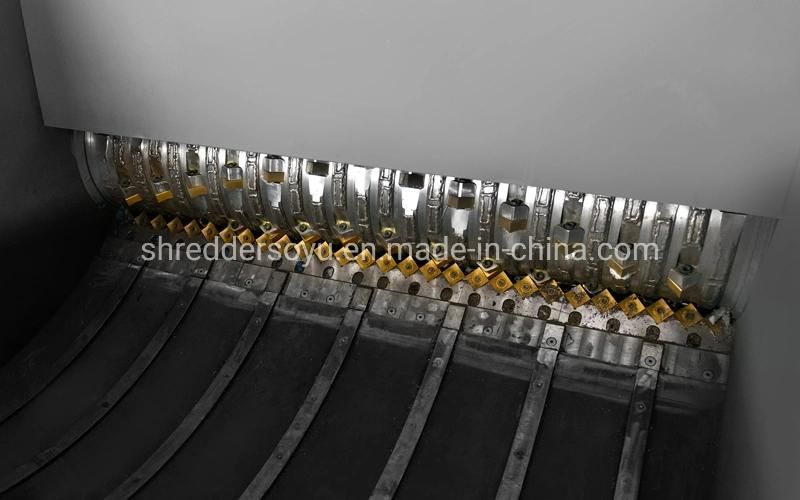

•  Teeth are DC53 steel. Stator knives are D2 steel.

•  The main electronic controls are a combination of Siemens.

•  Microcomputer technology incorporating rotator speed variations with start, stop and reverse features.

•  Automatic reverse sensors to protect the machine against over loading and jamming.

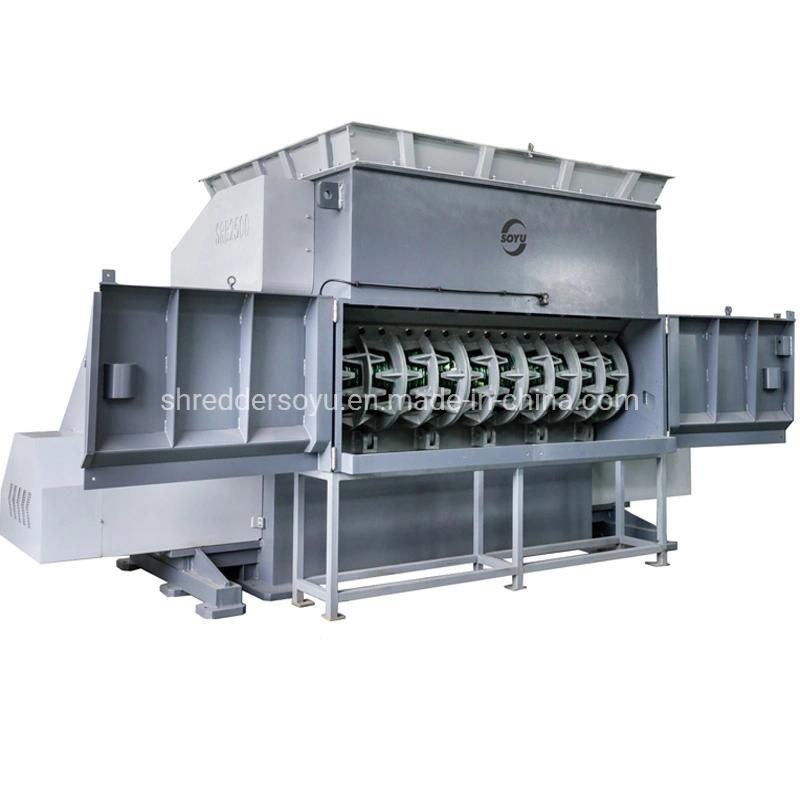

•  Engineered using split bearing block technology so the blades can be changed quickly and efficiently.

•  Specifically designed rotor to be extremely wear resistant.

•  Rotor teeth can be rotated 4 times before they need changing, lowering running costs and reducing down time.

•  Extremely versatile machine able to process a number of different materials

•  Machinery protection, accord with the European CE standard.

Model	SR600	SR750	SR900	SR1100
Main shaft speed(rpm)	73	73	73	73
Ram travel(mm)	500	820	820	820
Rotor diameter(mm)	Φ220	Φ400	Φ400	Φ400
Number of rotor blades(pcs)	23	44	52	66
Number of fixed blades(pcs)	4	6	6	8
Discharge height(mm)	500	610	610	610
Screen holes diameter(mm)	40	40	40	40
Motor power(kw)	18.5	37	45	55~75
Hydraulic power(kw)	1.5	2.2	2.2	5.5
Cutting chamber dimensions(mm)	540x600	830x708	830x840	830x1071
Overall dimensions(LxWxH)(mm)	1800x1350x1700	2810x2000x2115	2810x2100x2115	2810x2650x2115
Weight(kg)	Approx 1600	Approx 4460	Approx 4560	Approx 5464

Model	SR1400	SR1600	SR2100	SR2500
Main shaft speed(rpm)	73	73	73	73
Ram travel(mm)	820	1000	1000	1200
Rotor diameter(mm)	Φ400	Φ480	Φ480	Φ660
Number of rotor blades(pcs)	80	94	122	150
Number of fixed blades(pcs)	10	12	16	20
Discharge height(mm)	610	950	950	950
Screen holes diameter(mm)	40	40	40	40
Motor power(kw)	75~90	2x55~2x75	2x75~2x90	2x90~2x110
Hydraulic power(kw)	5.5	7.5	7.5	11
Cutting chamber dimensions(mm)	830x1302	1000x1533	1000x1995	1200x2457
Overall dimensions(LxWxH)(mm)	2810x2890x2115	3475x4100x2700	3475x4900x2700	3475x5400x2700
Weight(kg)	Approx 6200	Approx 10800	Approx 13000	Approx 16000

Why Choose SOYU Machinery?

Changshu Shouyu Machinery Co., Ltd. (hereinafter referred to as SOYU) , a China-Italy cooperation company.

SOYU Machinery was founded in 2009 Year.

We specialize in design, manufacture and sale by ourselves, so we can offer you high-quality products, competitive price and star-grade service.

Our factory focuses on the manufacture experience accumulation and technology research.

To improve our products, we visit operation sites,absorb customer's proposals and strengthen professional oversea service. We can supply OEM / ODM service. Our engineers have rich design and production experience in shredding &sorting field. We can offer customized products according to your ideas and drawings.

Quality ControlProfessional R&D and QC teams take care of every detail during design, process, assembly, test and package.
