Plastic Polycarbonate PC PP Sheet UV-Protection Sun Extrusion Making Machine

=== Base Info ===

=== Description ===

Basic Info.

Screw Single-Screw Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Main Electrical Parts ABB, Omron, Rkc, Schneider, FUJI, Delix etc. Customized Customized Application Housing Waterproof, Architecture Engineering Model No Lsj-120/35+45/30 Board Width 2100mm Board Thickness 4-10mm Die Head T-Type, Jc-Times Brand Transportation 2X40f Containers Extruder Model High Efficiency Single Screw Extruder 150/33 Three Roller Calendars Vertical Type, Alloy Steel Material Transport Package Wooden Pallets and Cases and Films Specification 350kg/H Trademark Leader Machinery Origin Qingdao of China HS Code 8477209000

Product Description

This extrusion line consists of single screw extruder, melt-pump, hydraulic filter exchanging unit, hollow
sheet die head, vacuum calibrating table, first haul off machine, oven, corona treating unit, cooling table, second haul off machine, trimming and length-settled cutting units and stacker etc.

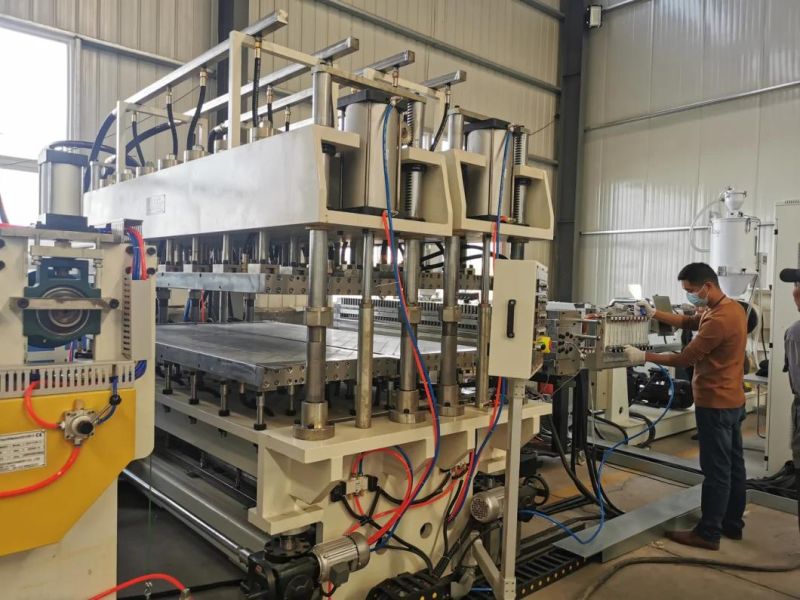

Characteristics of vacuum calibrator:
1. High quality mould steel or high strength Al-Mg Alloy
2. Special harden treatment and non-sticky coating on the surface.
3. Independently controlled vacuumize device and temperature controlling system.
4. Consist of vacuum sealing edge device.

The technology of hollow sheet die with co-extrusion feed block to get UV+PC+UV, UV+PC hollow sheet can save 30% UV on the surface.

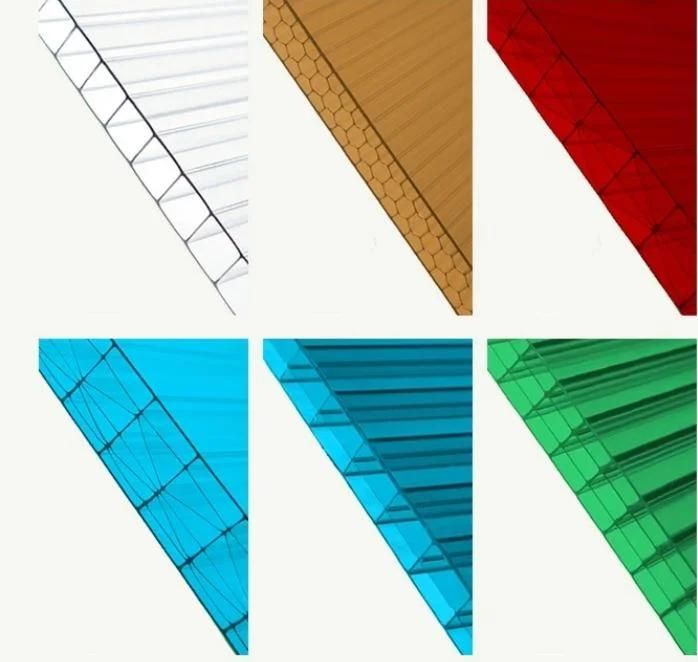

Hollow Sheets Specifications:
Sheet width: 600mm-700mm-1050mm- 1220mm-2100mm-2300mm,
Sheet thickness is 4mm-6mm-8mm-10mm-12mm-16mm
Sheet walls: double walls , three walls, 4 walls and more etc.


Application:1) Sunshades for stadium and bus shelters2) Lighting for corridors, passages and subway entries3) Bank ATMs4) Sound and heat insulation for construction such as: houses5) Canopies for agriculture greenhouse, zoos6) PC sheets mainly used for building and decorating materials, greenhouse material, telephone booth, insulation shield express ways & highways7) Office building, hotels, villas, stadium, schools, bus stop, terminals, hospitals, subway entry and exit doors, etc.

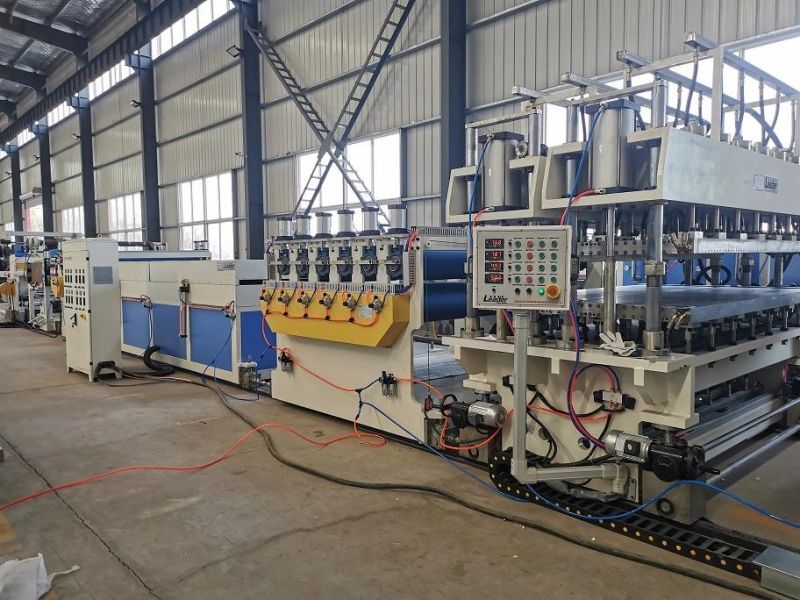

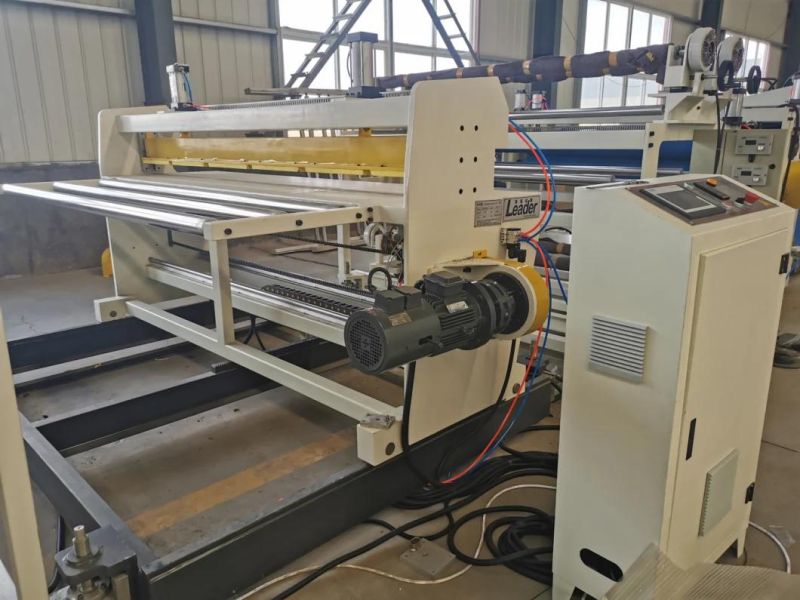

MACHINE PICTURES:
COMPANY CERTIFICATIONS OF:

OTHER PLASTIC SHEET EXTRUSION LINE RECOMMEDATION
1. PC/PP hollow profile sheet/hollow grid sheet extrusion line
Processing material: PC/PP virgin material plus recycle material
Thickness range: 2mm-4mm-6mm-8mm-10mm-12mm
Net sheet width: 1220mm-2100mm
Layer structure: Single layer or multi-layer
Capacity: 200-600kg/h
Application: Ads. Decoration, roofing, packaging, printing, etc.

2. ABS/HIPS sheet extrusion machine:
Processing material: ABS/HIPS virgin pellets plus recycle material
Thickness range: 1-6mm
Net Sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 400-800kg/h
Application: Vacuum forming, thermoforming, refrigerator inner layer, suitcase, etc.

3. ABS/PMMA sheet extrusion machine:
Processing material: ABS/PMMA virgin pellets plus recycle material
Thickness range: 1-8mm
Net sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 400-800kg/h
Application: Vacuum forming, bathtub, etc.

4. PP PE foam board/sheet extrusion line
Processing material: PP, PE , Foam additives, master batch
Thickness range:0.8-3-12mm
Net sheet width: 600mm-1260mm-
Layer structure: Single layer or double layers (A/B), three layers (A/B/A, A/B/C)
Capacity: 150-500kg/h
Application: stationery, containers, handbags, heat insulation material, construction, food packing, automobile area, industry application, sports fields etc.

5. PE HDPE sheet extrusion machine:
Processing material: HDPE/LDPE/LLDPE virgin pellets plus recycle material
Thickness range: 1-2.5mm, 3-35mm
Net sheet width: 1200mm-1600mm-1800mm-2500mm-3000mm-40000mm-6000mm-8000mm
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1200kg/h
Application: Packaging, construction, water-proof, water-drainage, Geomembrane film, etc.

6. PC/GPPS/PMMA sheet extrusion machine:
Processing material: PC/GPPS/PMMA virgin pellets plus recycle material
Thickness range: 1-12mm
Net sheet witdh: 600mm-1220mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 400-600kg/h
Application: Ads., decoration, roofing, etc.

7. PP/PS sheet extrusion machine:
Processing material: PP/PS virgin pellets plus recycle material;
Thickness range: 0.15-2mm
Net sheet width: 650mm-720mm-1000mm-1300mm-1500mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1000kg/h
Application: Thermoforming(cup, bowl, etc. ), stationery, printing sheet, packaging, etc.

8. PET sheet extrusion machine:
Processing material: PET virgin pellets(APET or PETG) plus flakes; Or 100% flakes
Thicknes range: 0.2-1.5mm
Net sheet width: 650mm-1500mm(or as per cusotmer's requirement)
Layer structure: Signle layer or multi-layer
Capacity: 150-500kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.


9. PVC sheet/edge banding sheet/marble sheet machine:
Processing material: PVC power plus other additive
Thickness range: 0.15-1mm; 1-3mm; 3-12mm
Net sheet width: 650mm-2000mm-3000mm( or as per customer's requirements)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-500kg/h
Application: Thermoforming, stationery, printing, payment card, SIM card, construction, etc.

10. EVA car interior decoration sheet extrusion line
Processing material: EVA and other additives
Thickness range: 1-8mm
Width range: 1000-1800mm
Layer strcuture: single layer
Capacity: 500-800kg/h
Application: automotive sealing strips, sound insulation cushion, sound absorption sheets,
automobile tail box, fenders, car interior and exterior decoration parts etc.

11. PVC+PMMA Glazed roofing tiles/corrugated sheet extrusion machine
Processing material: PVC, PMMA and other additives
Thickness range: 1-8mm
Width range: 720mm, 880mm, 1040mm
Layer structure: A/B, A/B/A, A/B/C
Capacity: 400kg/h
Application: garden-style factory, tourist scenic spots, pavillions, hotels, family building etc.
